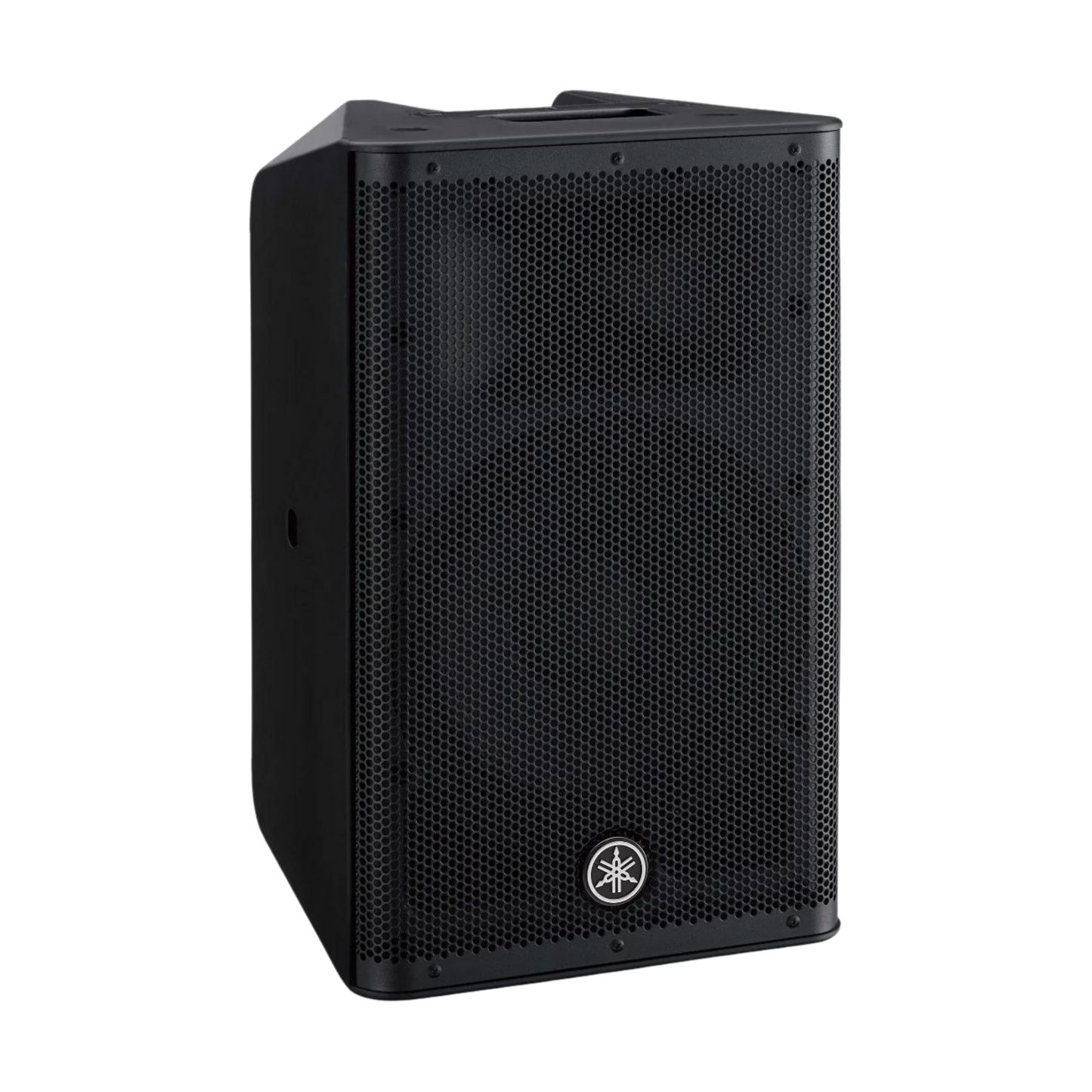

Yamaha DXR 10, Powered

Yamaha DXR 10, Powered

SKU YDXR10

Rate Calculator

Product Highlights

  • High Output Power: Achieves class-leading maximum SPLs, ensuring clear and powerful sound for any event.
  • Advanced DSP Functions: Incorporates Yamaha's cutting-edge technologies for unmatched clarity and performance.
  • Lightweight Design: Features a larger, yet much lighter 1.75” Neodymium HF compression driver for easy transport and setup.
  • Versatile Application: Ideal for a wide range of applications, from live performances to fixed installations, without compromising sound quality.
View full details

The DXR mkII Series powered loudspeakers represent a synergy of raw power and advanced technological innovation, delivering impressively high output with superior quality and clarity. With the collaboration of touring loudspeaker specialists NEXO, these speakers have been refined to meet the evolving demands of sound reinforcement professionals, ensuring reliability and outstanding clarity in any setting. The series boasts a lightweight design with a powerful Class-D amplifier and high-power woofer, combined with Yamaha's proprietary DSP functions, making it perfect for events requiring clear, powerful sound without the bulk.

  • Models: DXR15mkII, DXR12mkII, DXR10mkII, DXR8mkII
  • Type: 2-way, Bi-amped Powered Loudspeakers, Bass-reflex Type
  • Frequency Range: Varies by model
  • Coverage Angle: Varies by model
  • Components:
    • LF: Diameter varies by model, Ferrite Magnet (DXR15/DXR12/DXR10), Neodymium Magnet (DXR8)
    • HF: 1.75" Neodymium HF compression driver
  • Crossover: FIR-X tuning™ (linear phase FIR filter)
  • Output Power: 1100W (Dynamic), varies by model
  • Maximum Output Level: 134dB SPL (DXR15mkII, DXR12mkII), 132dB SPL (DXR10mkII), varies by model
  • Connectors: INPUT: XLR-3-31 x1, INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1
  • Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
  • Power Requirements: Varies by region
  • Material: ABS (Matte Finish, Black)
