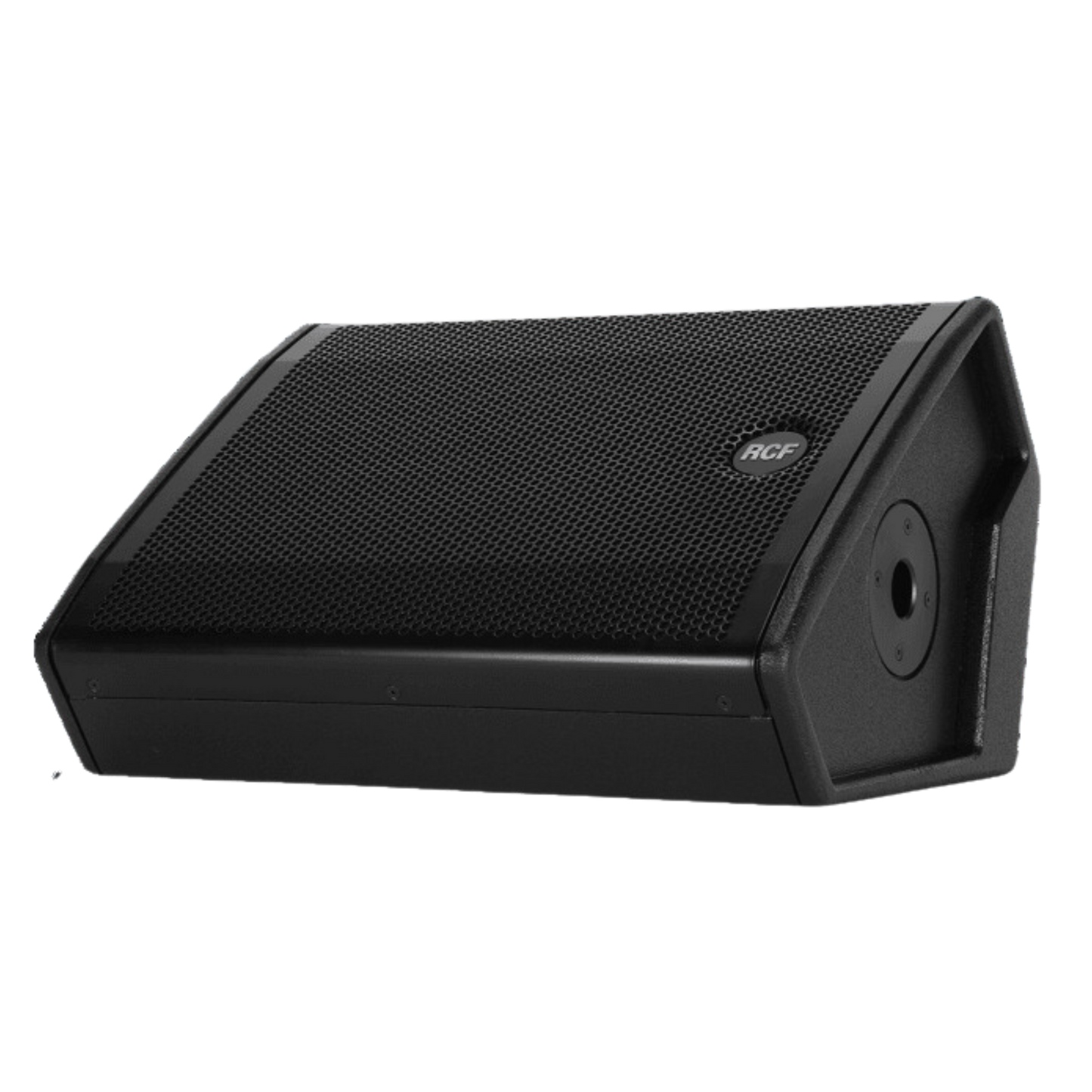

The NX 12-SMA is a state-of-the-art active coaxial stage monitor designed to deliver exceptional sound quality and power. Its 1400 Watt Peak and 700 Watt RMS digital bi-amplification ensure high-performance audio output, suitable for a wide range of events.

The monitor features a 12" high-power neodymium woofer and a 1.7" kapton dome neodymium high-frequency driver, providing clear and precise sound reproduction.

The NX 12-SMA is versatile, with two Equalization Modes: Floor for stage monitoring and Free Field for standalone PA system use. Its durable construction, made of Baltic Birch plywood with a rugged powder-coated finish, and an ergonomic side handle, make it both resilient and easy to transport, ideal for event organizers and planners.

• Acoustical Specifications:
  • Frequency Response: 50 Hz – 20000 Hz
  • Max SPL @ 1m: 129 dB
  • Horizontal coverage angle: 60°
  • Vertical coverage angle: 60°
• Transducers:
  • Compression Driver: Coaxial 1.0'' neo, 1.75'' v.c
  • Woofer: 12'' neo, 2.5'' v.c
• Input/Output Section:
  • Input signal: bal/unbal
  • Input connectors: XLR, Jack
  • Output connectors: XLR
  • Input sensitivity: +4 dBu
• Processor Section:
  • Protections: RMS, HF
  • Limiter: Soft Limiter
  • Controls: Freefield, floor
• Power Section:
  • Total Power: 1400 W Peak, 700 W RMS
  • High frequencies: 400 W Peak, 200 W RMS
  • Low frequencies: 1000 W Peak, 500 W RMS
  • Cooling: Convection
  • Connections: Powercon IN/OUT
• Standard Compliance: CE compliant
• Physical Specifications:
  • Handles: 1 on side
  • Pole mount/Cap: Yes
  • Color: Black
  • Height: 324 mm / 12.76 inches
  • Width: 550 mm / 21.65 inches
  • Depth: 417 mm / 16.42 inches
  • Weight: 16.6 kg / 36.6 lbs
• Shipping Information:
  • Package Height: 604 mm / 23.78 inches
  • Package Width: 504 mm / 19.84 inches
  • Package Depth: 404 mm / 15.91 inches
  • Package Weight: 20.2 kg / 44.53 lbs
