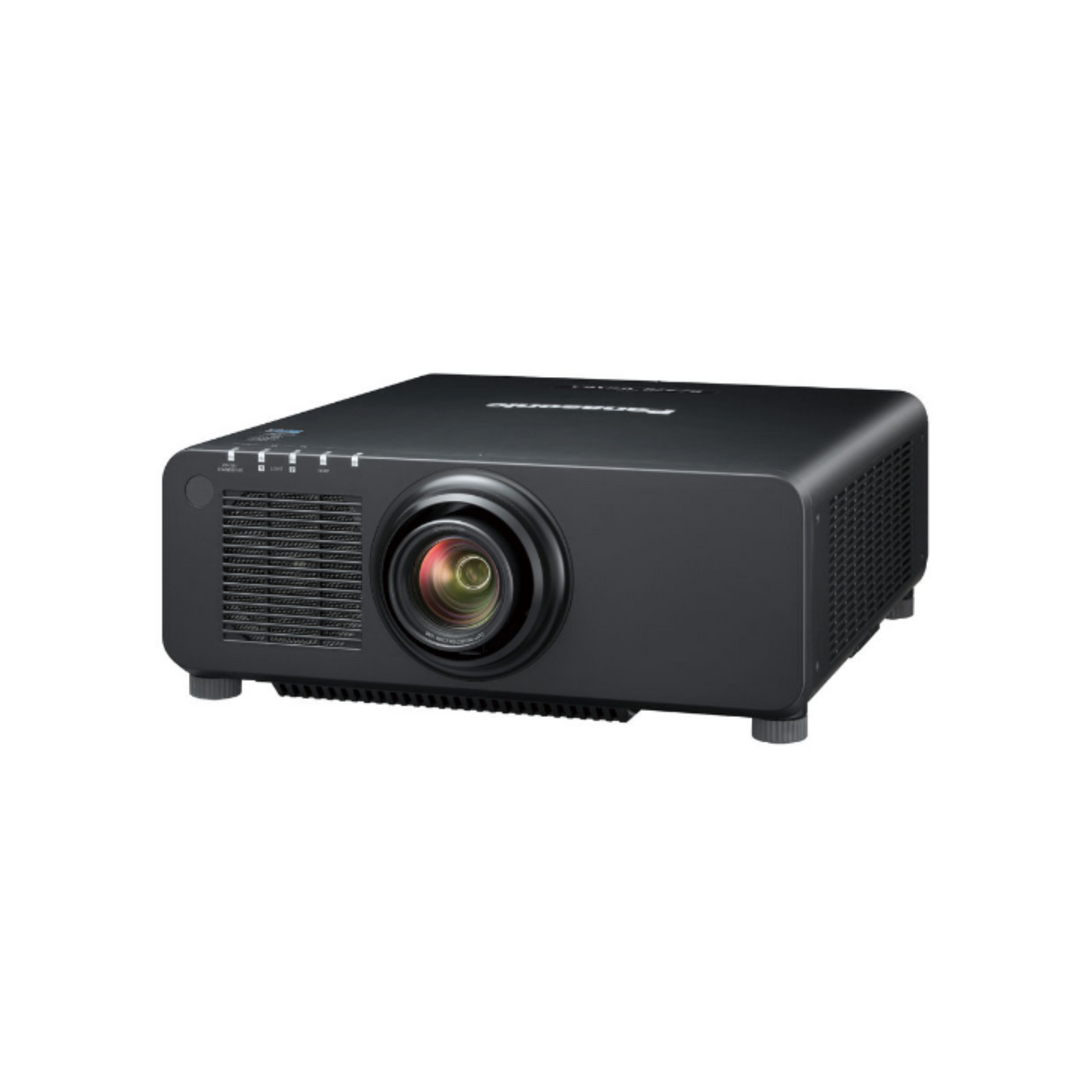

Panasonic PT-RZ970BU (10k)

Panasonic PT-RZ970BU (10k)

SKU RZ970

Rate Calculator

Product Highlights

  • High Brightness and Quality: Features a laser 1-chip DLP, offering 10,000 lumens (center) brightness and WUXGA resolution for clear, vibrant images.
  • Long-Lasting and Maintenance-Free: Boasts up to 20,000 hours of maintenance-free operation with a dust-resistant optical block and durable laser engine.
  • Versatile Installation Options: Supports free 360-degree installation and includes Geometric Manager Pro function for flexible setup.
  • Exceptional Contrast: Delivers a 10,000:1 contrast ratio, ensuring deep blacks and bright whites for a more dynamic image.
View full details

The PT-RZ970U 1-Chip DLP™ Fixed Installation Laser Projector is a powerhouse of visual performance, ideal for education, business, museums, and digital signage applications. Its laser light source combines high brightness and excellent image quality, ensuring your presentations are vivid and engaging. The projector's maintenance-free operation, lasting up to 20,000 hours, makes it a reliable choice for intensive usage. Additionally, its free 360-degree installation capability and Geometric Manager Pro function offer unparalleled flexibility in setup, making it perfect for a variety of event spaces.

  • Power Supply: AC100-240V, 3.5A, 50/60 Hz
  • Power Consumption: Normal: 742W, Eco: 617W, Long Life1: 410-588W, Long Life2: 375-588W, Long Life3: 349-588W, Shutter: 82W, Standby Mode [Eco]: 0.2W, Standby Mode [Normal]: 3W, Standby Mode (Quick Startup enabled): Approx. 85W
  • BTU Value: Max 3,584 BTU
  • Lens Options: PT-RZ970B/W: Powered zoom/focus lenses (1.7-2.4:1), F 1.7-1.9, f 25.6-35.7 mm, PT-RZ970LB/LW: Optional powered zoom/focus lenses and fixed-focus lens
  • Light Source: Laser Diode, Laser class 1 (Class3R for US models)
  • Luminance Life: 20,000 hours at half luminance (normal), 24,000 hours at half luminance (Eco), 43,800 hours at constant luminance (LONG LIFE1), 61,320 hours at constant luminance (LONG LIFE2), 87,600 hours at constant luminance (LONG LIFE3)
  • Screen Size: 1.27-15.24 m (50-600 inches), 16:10 aspect ratio
  • Brightness: 10,000 lumens (Center), 9,400 lumens, Half luminance (Normal): 9,400 lumens, Half luminance (Eco): 7,500 lumens, Constant luminance (LONG LIFE1): 3,700 lumens, Constant luminance (LONG LIFE2): 3,100 lumens, Constant luminance (LONG LIFE3): 2,500 lumens
  • Center-to-Corner Uniformity: 90%
  • Contrast: 10,000:1 (All White/All Black) (Dynamic Contrast3)
  • Resolution: 1920 x 1200 pixels
  • Scanning Frequency: SDI: 3G-SDI, HD-SDI, SD-SDI signal compliant with SMPTE standards, HDMI/DVI-D: fH: 15-100kHz, fV: 24-120Hz, dot clock: 25-162 MHz, RGB: fH: 15-100kHz, fV: 24-120Hz, dot clock: 20-162 MHz, YPBPR (YCBCR): Various formats and frequencies, Video/S-Video: NTSC/NTSC4.43/PAL-M/PAL60, PAL/PAL-N/SECAM
  • Optical Axis Shift: Vertical: +50%, -16% (powered), Horizontal: +30%, -10%
  • Installation: Ceiling/floor, front/rear, 360-degree free installation
  • Terminals: SDI IN: BNC x 1, HDMI IN: HDMI 19-pin x 1, Deep Color, HDCP compatible, DVI-D IN: DVI-D 24-pin x 1, DVI 1.0 compliant, HDCP compatible, RGB 1 IN: BNC x 5, RGB 2 IN: D-sub HD 15-pin (female) x 1, SERIAL/MULTI PROJECTOR SYNC IN/OUT: D-sub 9-pin for external control and link control, Remoter 1 In/Out: M3 jack for wired remote control, Remoter 2 In: D-sub 9-pin (female) for external control (parallel), LAN/DIGITAL LINK: RJ-45 for network and DIGITAL LINK connection, 100Base-TX, PJLink compliant
  • Power Cord Length: 3.0 m (9 ft 10 in)
  • Cabinet Materials: Molded plastic
  • Dimensions: PT-RZ970B/RZ970W: 498 x 200 x 581 mm with supplied lens, PT-RZ970LB/RZ970LW: 498 x 200 x 538 mm without lens
  • Weight: Approx. 23.2 kg (51.1 lbs) with supplied lens, Approx. 22.4 kg (49.4 lbs) without lens
  • Operation Noise: 41dB (37dB[QUIET1] / 35dB[QUIET2])
  • Operating Temperature: 0-45 °C (32-113 °F)
  • Operating Humidity: 10%-80% (no condensation)
