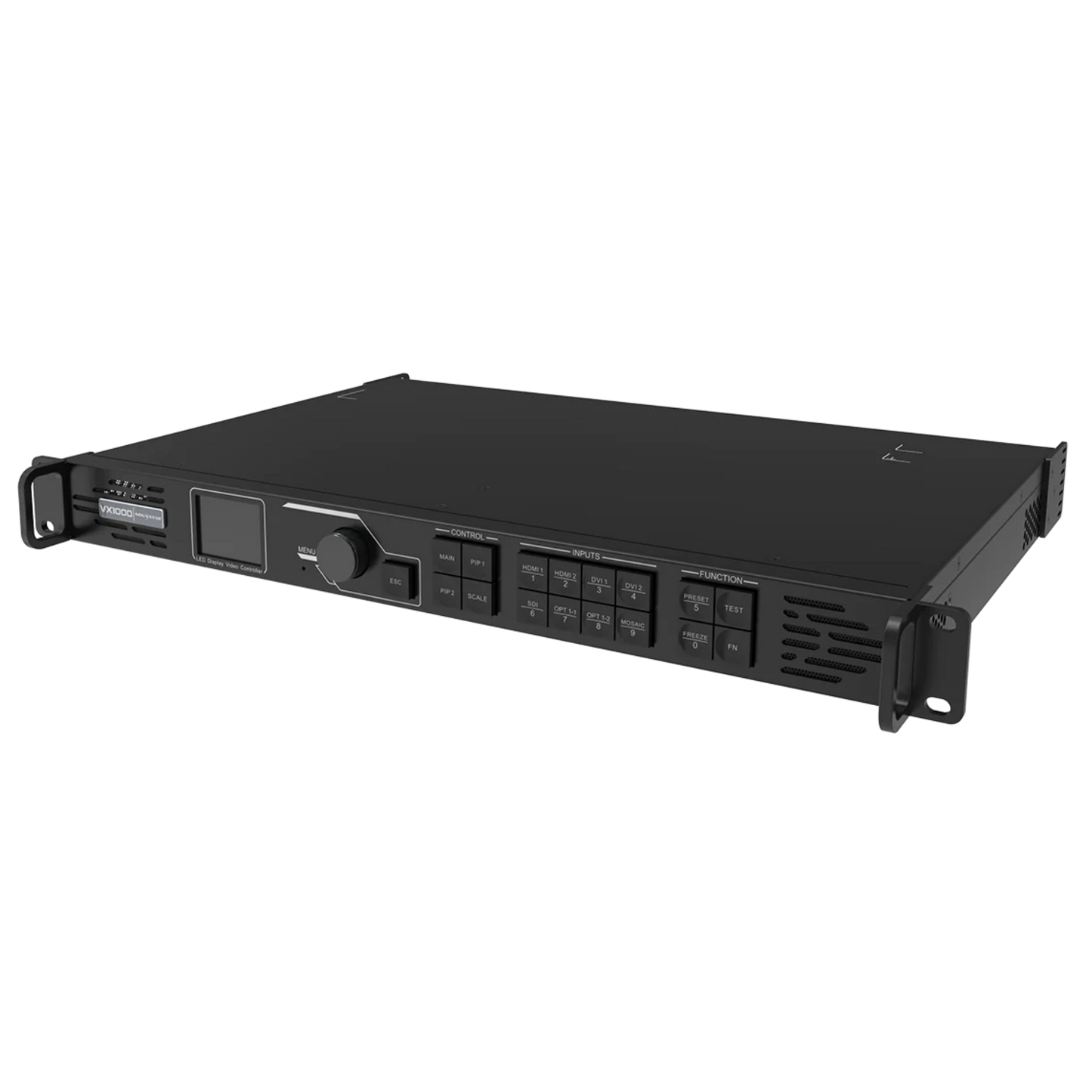

NovaStar VX1000

NovaStar VX1000

SKU VX1000

Rate Calculator

Product Highlights

  • All-in-One Controller: The NovaStar VX1000 combines video processing and controlling in a single device.
  • Versatile Connectivity: Features 2x HDMI 1.4, 2x DVI, and 1x 3G-SDI inputs, along with 10x LED-Out, 1x HDMI 1.3 Out, 1x DVI Loop, and 2x OPT-Out outputs.
  • High Capacity: Capable of managing up to 6.5 million pixels with 10 Ethernet ports.
  • Advanced Features: Supports Genlock, up to 3 layers, memory for 10 presets, and cascading via USB.
View full details

The NovaStar VX1000 is a revolutionary all-in-one controller that expertly integrates video processing and video control capabilities. Designed for efficiency, it supports different working modes including video controller, fibre converter, and bypass mode. This powerful unit can handle up to 6.5 million pixels, making it ideal for large-scale events. Its hardware features include a range of inputs and outputs, ensuring compatibility with various devices. The VX1000 also boasts advanced features like Genlock support, the ability to support up to three layers, memory for ten presets, and cascading options via USB, enhancing its versatility for event organizers and planners.

  • Inputs:
    • 2x HDMI 1.4 (max. 3840×1080@60Hz / max.3840×2160@30Hz)
    • 2x DVI ((HDMI 1.4) max. 3840×1080@60Hz / max.3840×2160@30Hz)
    • 1x 3G-SDI (max. 1920×1080@60Hz)
  • Outputs:
    • 10x LED-Out (RJ45)
    • 1x HDMI 1.3 Out
    • 1x DVI Loop
    • 2x OPT-Out (10G)
  • Additional Features:
    • V-Can Support
    • Genlock
    • Supports up to 3x layers
    • Memory for 10 presets
    • Cascading via USB possible
    • Display configuration without computer possible
    • Control via USB or LAN
  • General Specifications:
    • Supply voltage: AC 100-240V, 50/60HZ
    • Dimensions: 483.6 x 351.2 x 45mm (WxDxH)
    • Power consumption: 28 watts
    • Weight: 4kg
