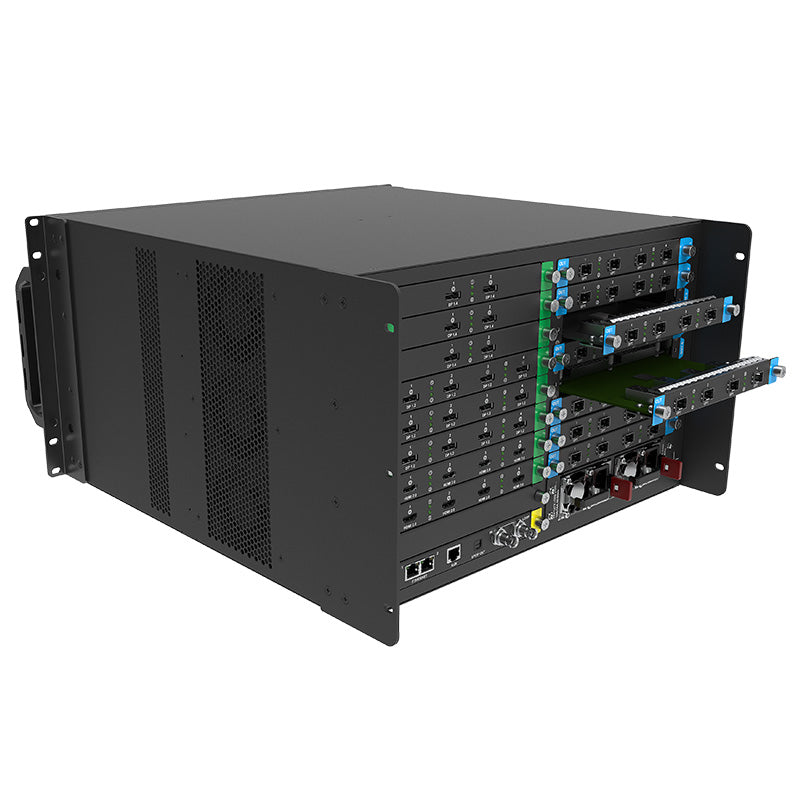

The MX6000 Pro is an 8K LED display controller that belongs to NovaStar's COEX series. The device offers a wide range of options with up to seven different input cards that support 8K, 4K and VoIP.
These cards can be flexibly configured to provide bandwidths of 1G or 5G for signal transmission. In addition, the device supports the configuration of backup scenarios and can switch back and forth between individual devices without interruption.
The device is operated with the new VMP software from NovaStar.
Technical Specifications
General Information
- Supply voltage: AC-100-240V, 50/60Hz
- Power consumption: 625 watts
- Dimensions: 482.6 x 282.9 x 538.8 mm (WxDxH)
- Weight: 31kg (without cards)
Inputs
- 8x slot for the following input cards:
- 4x HDMI 2.0
- 2x HDMI 2.1
- 2x DP 1.4
- 1x SMPTE ST 2110 (25G)
- 1x NDI
Outputs
- 8x slot for the following output cards:
- 1x 40G Fiber Output
- 4x 10G Fiber Output
