Product Highlights

  • Versatile Inputs and Outputs: The VX4S features a range of inputs including CVBS, VGA, DVI, HDMI, DP, and SDI, supporting resolutions up to 1920×1200@60Hz.
  • Advanced Processing Capabilities: Equipped with Nova's G4 engine, it ensures stable, flicker-free images with excellent depth and quality.
  • User-Friendly Interface: Offers seamless high-speed switching and fade-in/fade-out effects, along with easy configuration through its intuitive interface.
  • Robust Physical Build: Designed with a durable structure, measuring 483.6mm × 275.1mm × 51.5mm and weighing 5.6 kg.
View full details

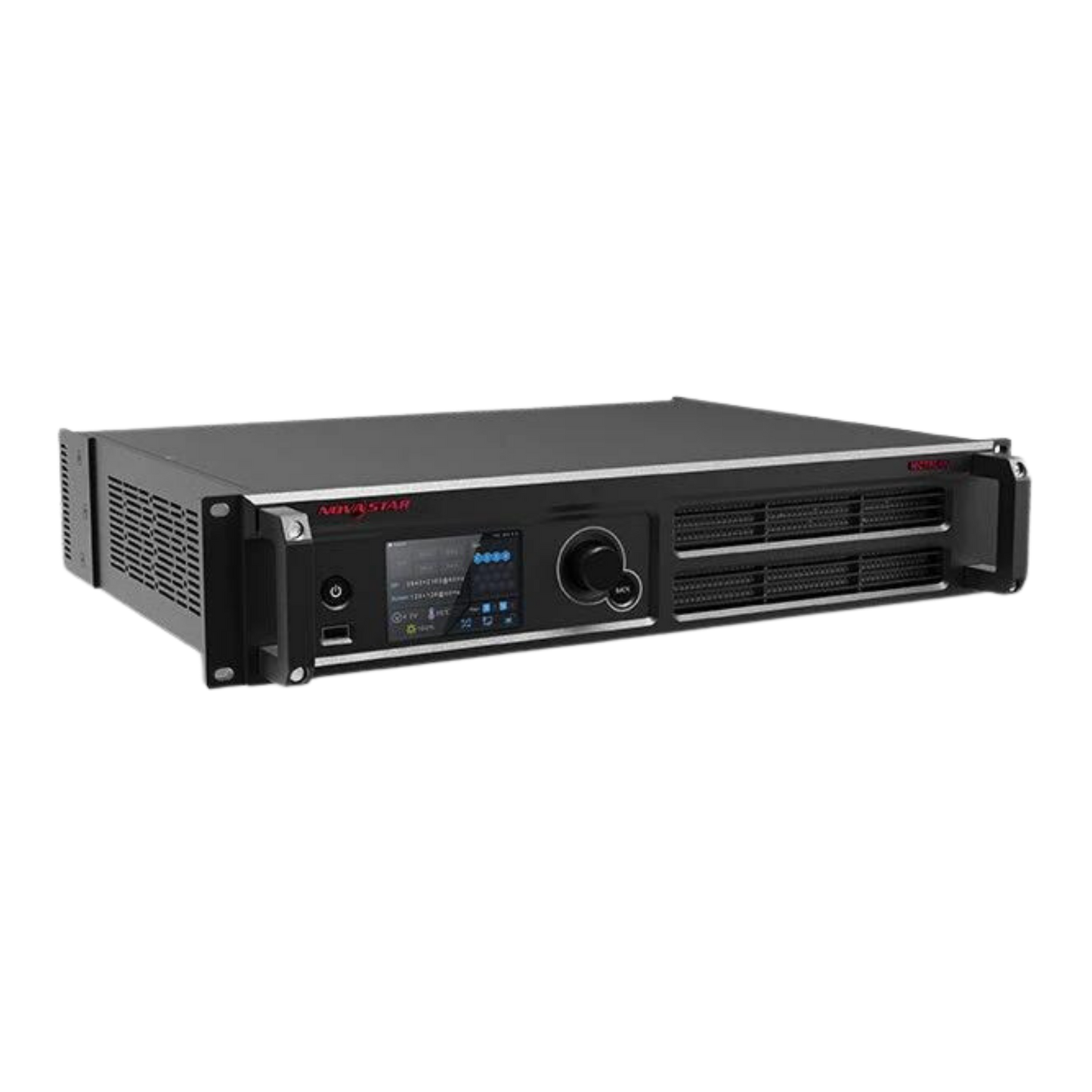

The MCTRL4K is an advanced LED display controller, designed to meet the diverse needs of event organizers and planners. Its ultra-large capacity supports 4K×2K@60Hz resolution and can handle a maximum width of up to 8K, making it ideal for large-scale events.

The controller features multiple video inputs, including DP1.2, HDMI2.0, and Dual DVI, ensuring compatibility with a wide range of visual audio equipment.

Moreover, the MCTRL4K's HDR10-Optima and HLG capabilities dramatically enhance image quality, providing clear, vivid, and dynamic displays. Its low latency of less than 1ms ensures a seamless and smooth viewing experience, crucial for live events and professional presentations.

  • Resolution and Capacity:
    • 4K×2K@60Hz resolution.
    • Maximum width up to 8K.
    • Supports custom resolutions, maximum width/height up to 7680 pixels.
  • Video Inputs:
    • 1×DP1.2, 1×HDMI2.0, 2×Dual DVI.
    • Supports HDCP 1.3 (DP 1.2) and HDCP 1.4 & 2.2 (HDMI 2.0).
  • HDR and Color Technology:
    • HDR10-Optima and HLG support.
    • 10-bit color depth.
    • Wide color gamut from BT.709 to BT.2020.
  • 3D Support:
    • Compatible with 3D emitter EMT200 and 3D glasses.
  • Latency and Transmission:
    • Less than 1ms latency.
    • Optical transmission up to 10km with 10G bandwidth.
  • Output Ports:
    • 16 Neutrik (NE8FBH) Gigabit Ethernet ports.
    • 4 OPT ports with 10G optical transmission.
  • Control Ports:
    • Ethernet port for PC connection.
    • USB IN/OUT for device cascading or PC connection.
    • Genlock IN/LOOP for synchronization.
  • Power Supply:
    • AC 100 V–240 V, 50/60Hz.
  • Other Features:
    • Supports individual Gamma adjustment for RGB.
    • In multi-card mode, can be used as two controllers.
    • Suitable for fixed and rental applications.
