NL4 Speakon

NL4 Speakon

SKU NL42

Rate Calculator

Product Highlights

  • 4 Pole Cable Connector: Designed specifically for loudspeaker connections, ensuring robust and reliable connectivity.
  • High Current Capacity: Capable of handling 40 A rms continuous and up to 50 A audio signal with a 50% duty cycle.
  • Quick Lock System: Features an easy and precise locking mechanism, enhancing connection security.
  • Durable and Versatile Design: Made with high-impact materials for longevity, and includes a chuck type strain relief for cable diameters ranging from 7 to 14.5 mm.

Product Highlights

Product Highlights

Product Highlights

  • 50' length for extensive reach across various setups.
  • 4 conductor configuration with 12 gauge wire for reliable signal transmission.
  • Equipped with NL4 Speakon connectors at both ends for secure connections.
  • Designed for durability and reliability in professional audio applications.

Product Highlights

  • 100-foot length for extensive reach and flexibility in setup.
  • 12 gauge, 4 conductor design for robust signal transmission.
  • Equipped with NL4 Speakon connectors on both ends for reliable connectivity.
  • Constructed with 12/4 SJ type wire for durability and performance.
View full details

The Neutrik NL4FX is a state-of-the-art 4 pole cable connector, primarily used for loudspeaker connections, offering exceptional reliability and robustness. Its high current rating of 40 A rms continuous and 50 A for audio signals makes it ideal for demanding audio applications. The connector is designed with a Quick Lock system, ensuring a secure and precise connection, and is constructed from high-impact materials, guaranteeing long-lasting performance. The NL4FX also features a versatile chuck type strain relief, accommodating a wide range of cable diameters, making it a flexible choice for various audio setups.

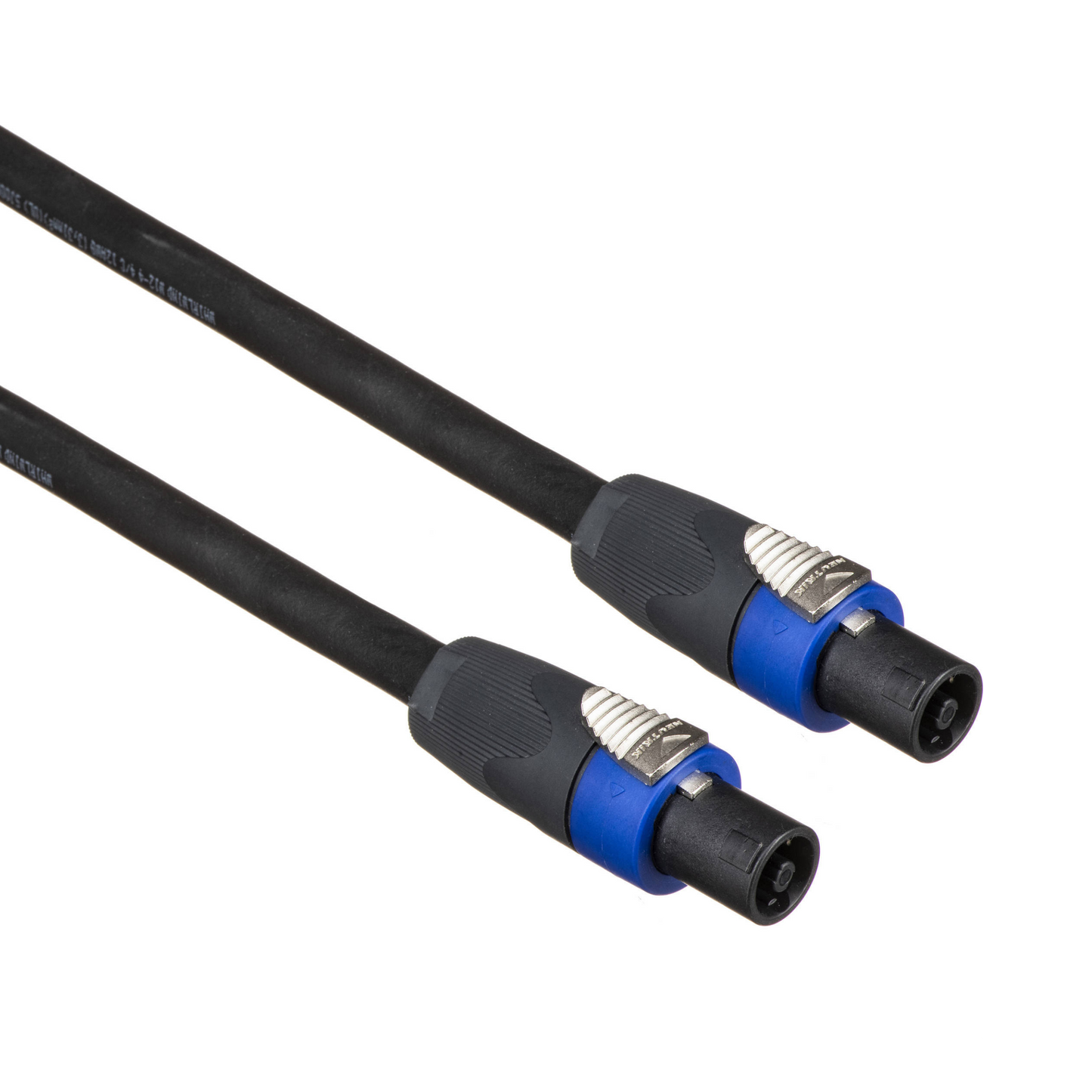

The Whirlwind 50' 4 Conductor 12 Gauge NL4 Speakon to NL4 Speakon Speaker Cable is crafted to meet the demands of professional audio setups, ensuring reliable and high-quality signal transmission. Featuring durable NL4 Speakon connectors at both ends, this cable is designed for secure and efficient connections between audio equipment. Its 12 gauge, 4 conductor configuration is housed in SJ type wire, making it a robust choice for live sound, recording, and broadcast applications.

The Whirlwind NL4-100 is a premium 100', 12 gauge, 4 conductor speaker cable, designed for professional audio applications. It features NL4 Speakon connectors on both ends, ensuring a secure and efficient connection between audio equipment. This cable is built with high-quality 12/4 SJ type wire, offering exceptional signal integrity and reliability for live sound, recording, and broadcast environments.

Electrical Specifications:

  • Contact Resistance: < 2 mΩ (after lifetime)
  • Dielectric Strength: 4 kVdc (peak)
  • Insulation Resistance: > 1 GΩ (after damp heat)
  • Rated Current per Contact: 40 A rms continuous, 50 A audio signal (50% duty cycle)
  • Rated Voltage: 250 V ac

Mechanical Specifications:

  • Cable Diameter Range: 7 - 14.5 mm
  • Cable Retention: ≥ 220 N (depends on cable O.D. and material)
  • Lifetime: > 5000 mating cycles
  • Wire Size: 4 mm² / 6 mm² (screw type terminals/soldering), 12 AWG / 10 AWG
  • Wiring: Screw type terminals or soldering
  • Locking Device: Quick Lock (latch)

Material Specifications:

  • Contact Plating: 4 µm Ag
  • Contacts: Brass (CuZn39Pb3)
  • Insert: PBTP 20% GR
  • Locking Element: Zinc diecast (ZnAl4Cu1)
  • Shell: Polyacetal (POM)

Environmental Specifications:

  • Flammability: UL 94 HB
  • Solderability: Complies with IEC 68-2-20
  • Temperature Range: -30 °C to +80 °C
  • Cable Length: 50' / 15.24m
  • Connectors: NL4 Speakon to NL4 Speakon
  • Gauge: 12AWG
  • Cable Length: 100 Feet
  • Connector Side A: NL4 Speakon
  • Connector Side B: NL4 Speakon
  • GTIN: 0692465003711
