MDG theONE Atmospheric Generator

MDG theONE Atmospheric Generator

SKU MDGTOK

Rate Calculator

Product Highlights

  • Dual mode operation allowing seamless switching between haze and fog modes with a 100% duty cycle.
  • Features APS (Automatic Purging System) to prevent clogging and ensure continuous operation.
  • Equipped with networking capabilities for advanced control options including DMX/RDM and various network protocols.
  • Incorporates an ARS (Automatic Refill System) for maximum, uninterrupted hours of haze/fog production from an external fluid container.
View full details

TheONE is a revolutionary atmospheric generator designed for versatility and efficiency in producing both haze and fog, making it an ideal choice for event organizers and planners. Its dual mode functionality allows for seamless transitions between haze and fog outputs without interruption, supported by an Automatic Purging System (APS) that cleans the heating module after each use to prevent clogging. Networking capabilities enable precise control over the device through various protocols, ensuring easy integration into any setup. Additionally, the Automatic Refill System (ARS) guarantees continuous operation by automatically refilling the internal fluid reservoir, ensuring your event remains atmospheric throughout.

  • Modes and Systems
    • Dual mode: Haze and Fog with seamless switching. 100% duty cycle.
    • APS (Automatic Purging System) for clog prevention.
    • ARS (Automatic Refill System) for continuous operation.
    • Networking: DMX/RDM connector, RJ45 node (Pathport embedded, ACN, ART-Net, ETCNet 2 & 3, SHOWNet), USB 2.0 for updates.
  • Output and Consumption
    • Haze: 65 ml (2.20 oz) per hour at 2.07 bar (30 psi), 0.35 kg (0.77 lb) CO2 per hour.
    • Fog: 100 m³ (3,531 ft³) per minute, 1 liter (0.26 US gallon) at 2.75 bar (40 psi) per hour.
    • Fluid type: MDG Neutral.
  • Operational Efficiency
    • Total running time: 308 hours of haze and 20 hours of fog from a 20 L (5.3 US gallons) container.
    • Gas bottle change: 50 hours for haze, 15 hours for fog, can be changed during operation.
  • Electrical and Physical Specifications
    • Operating voltage: 100-250 VAC, 50/60 Hz, automatic detection.
    • Power consumption: 1100 - 1480 watts.
    • Warm-up time: < 8 minutes.
    • Weight: 23 kg (50 lb), Shipping weight: 25 kg (55 lb).
    • Dimensions: Height 61 cm (24"), Width 25 cm (10"), Depth 30 cm (12").
  • Certifications
    • CE certified, CSA, and UL approved.

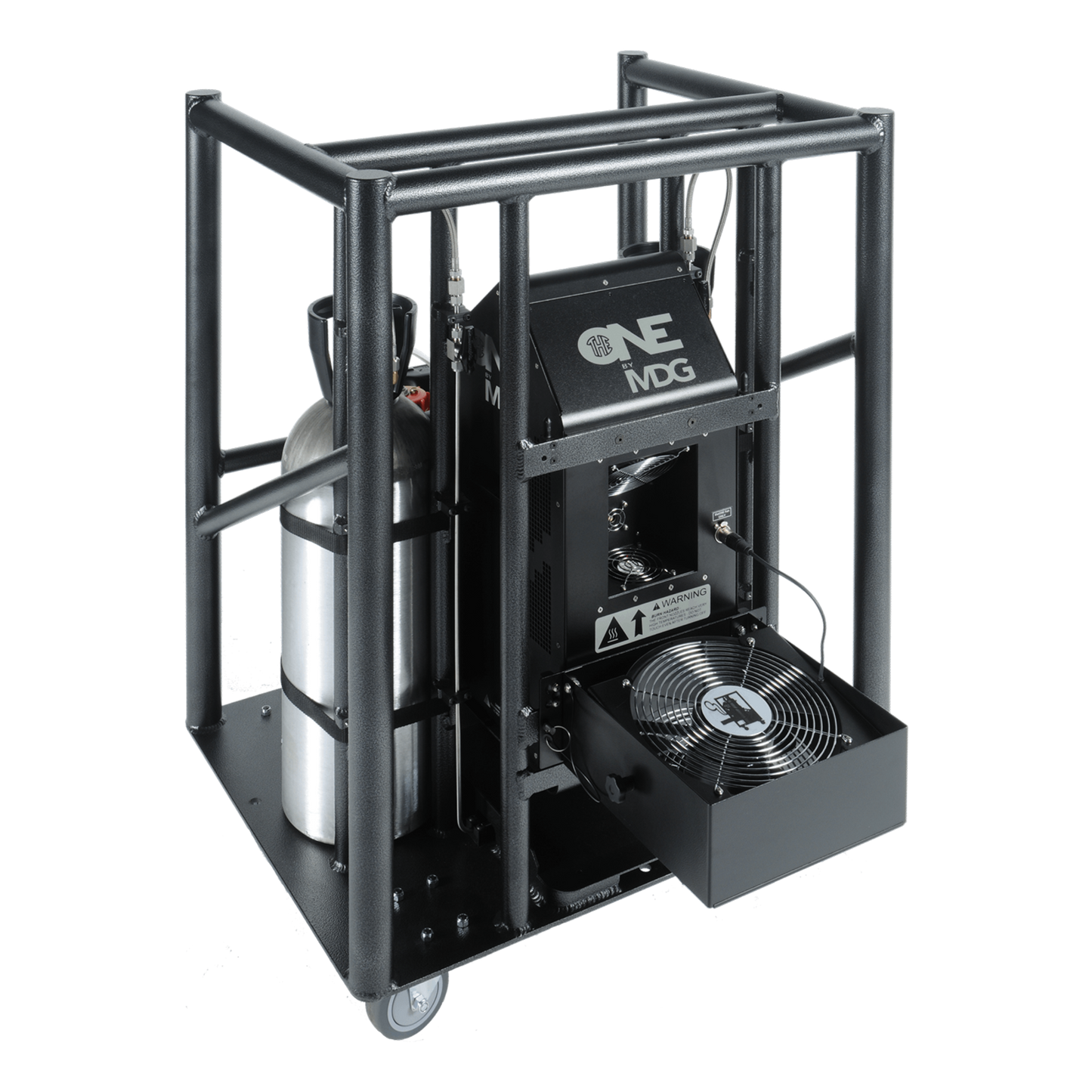

  • Touring Cradle
    • Accommodates 20 L (5.3 US gallons) fluid container and 9 kg (20 lb) CO2 or N gas bottle.
    • Designed for rigging, stacking, and rolling. Fits standard trucks/containers.
    • Total operating weight: 120 kg (265 lb) with 2 North-American gas bottles and a full fluid container.
    • Truss mounting: Yes - 3 x 750 kg rated coupling holes.
