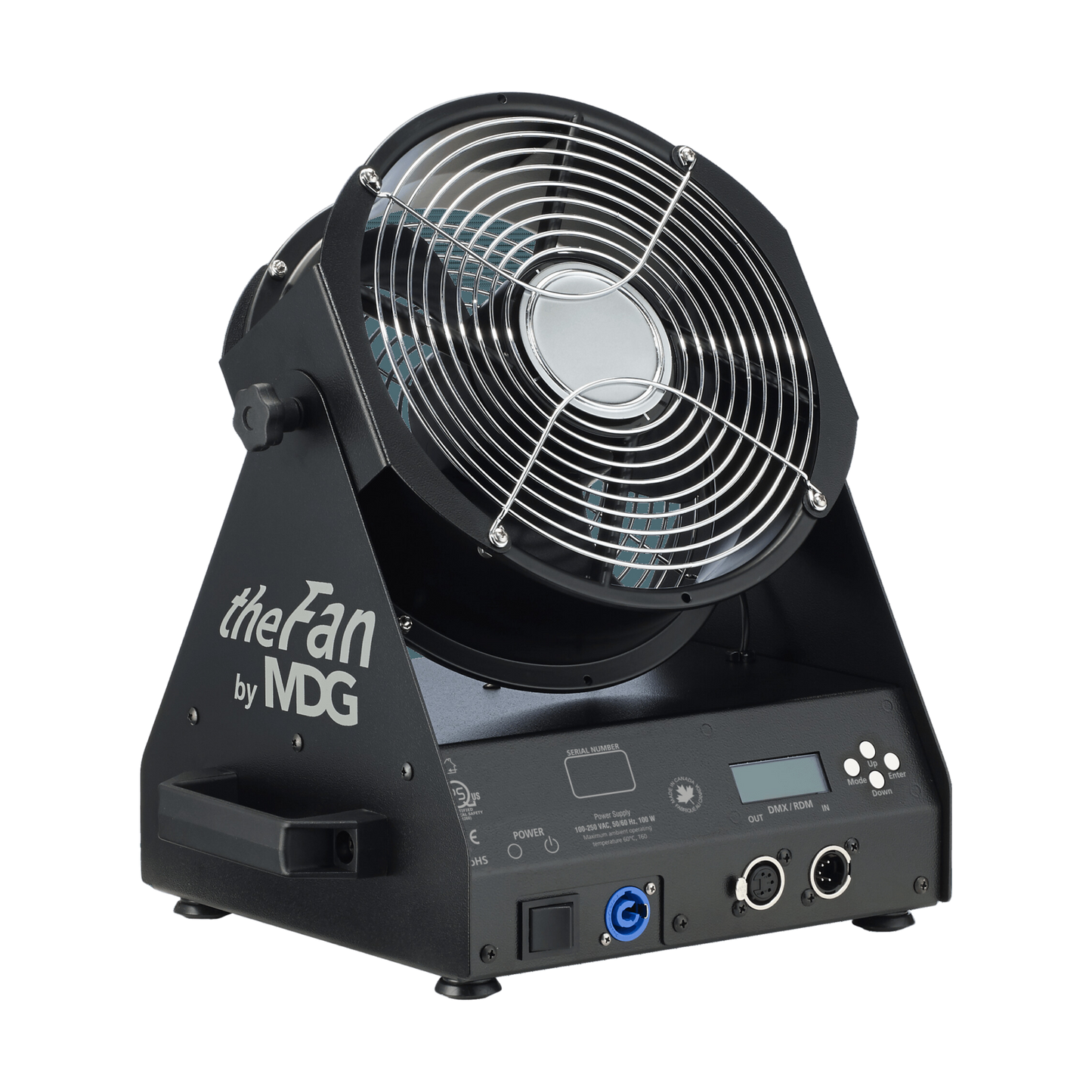

MDG theFAN Digital Fan

MDG theFAN Digital Fan


Rate Calculator

Product Highlights

  • Free standing or variable mounting options.
  • Universal switching power supply 100-250 VAC, 50/60 Hz, single phase.
  • Noise Level at 1 m (3.3 ft): 64db at maximum speed.
  • Variable speed and air flow up to 24 m³ (850 ft³) per minute.
View full details

TheFAN offers versatile installation options, being free-standing or adaptable for various mounting setups, catering to diverse event requirements. It features a universal switching power supply, supporting 100-250 VAC, 50/60 Hz, single phase, making it suitable for global use without the need for additional adapters. With a noise level of 64db at maximum speed, it ensures a powerful yet relatively quiet operation, enhancing event experiences without intrusive noise. The fan's capability to adjust speed and airflow up to 24 m³ (850 ft³) per minute allows precise control over environmental conditions, ensuring optimal comfort and effect for any event.

  • Electrical: 100 - 250 VAC, 50/60 Hz, single phase, 100 W.
  • Data: 1 standard USITT DMX512 channel, 2 XLR-5 connectors (1 input, 1 output), Controllable through DMX + RDM.
  • Digital Functions: Stand alone set speed, DMX Value.
  • Accessory: Flight Case.
  • Approval: Certified to CSA and UL standards, CE approved and RoHS compliant.
  • Mechanical: 3-bladed fan, 270° tilt, Variable speed, M12 metric bolt hole, 1/2" imperial bolt hole, Noise Level: 64db at full speed, 2 handles, 4-button controller with LCD panel, Airflow: up to 24 m³, Omega clamp socket, Fan diameter: 26.4 cm (10.4"), Total net weight: 6.8kg (15 lb), Total net size: 38 cm (15") H x 34.5 cm (13.58") W x 25.4 cm (10") D.
