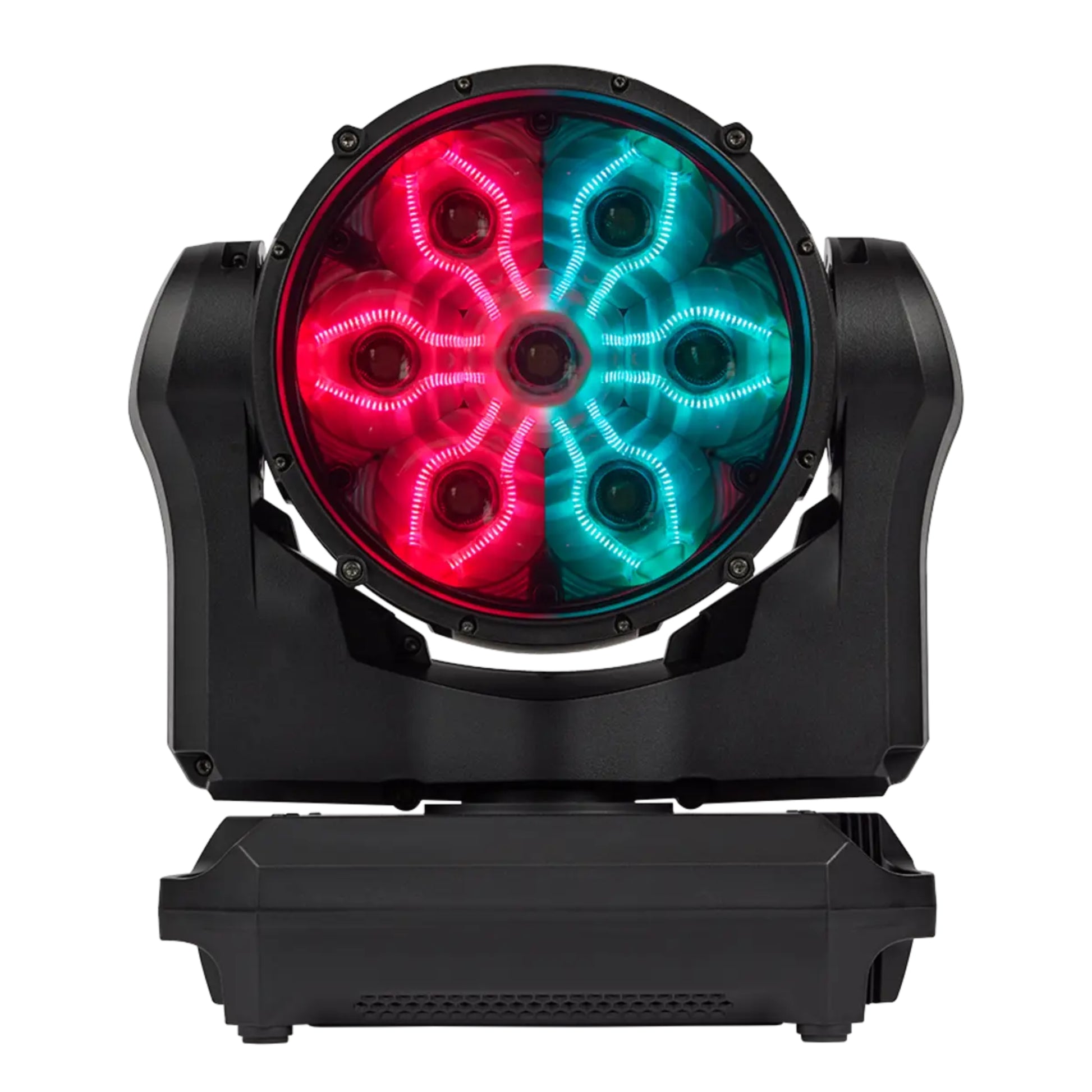

Martin Mac Aura XIP

Martin Mac Aura XIP

SKU 10319

Rate Calculator

Product Highlights

Product Highlights

  • IP65 Rated: Designed for both indoor and outdoor use, offering protection against dust and water
  • Durable Build: Lightweight and rugged aluminum/magnesium alloy housing
  • Precision Dimming: Smooth 16-bit control of individual colors and overall intensity
  • Versatile Zoom: Motorized zoom range from 8° to 66° for dynamic beam control
  • High-Powered LEDs: Features 19 powerful 25W RGBW LEDs for vibrant output
  • Reliable Connectivity: Equipped with 5-pin DMX input and output for stable control
  • Pixel Mapping: Control across 5 independent LED zones for creative effects
  • Fast & Smooth Movement: High-speed pan and tilt for dynamic positioning
  • RDM Enabled: Supports remote device management for addressing and diagnostics
  • Camera-Friendly: Selectable PWM frequencies ensure flicker-free performance on camera
  • Custom White Balance: Calibrated white presets with a default of 7500K
  • Advanced Dimming: Choose from six unique dimming curves to match any application
  • Easy Navigation: Intuitive OLED display with simple menu navigation
  • Flexible Programming: Offers both simple and advanced DMX channel configurations
  • Software Updates: USB-C port enables fast and easy firmware upgrades
View full details

Engineered for versatility and durability, the Martin MAC Aura XIP is a premium RGBW LED wash light with advanced effects and outdoor-ready design. Featuring an IP65-rated housing, 19x 25W LEDs, motorized zoom (8°–66°), and 5-zone pixel control, it delivers stunning color, smooth dimming, and professional-grade performance—indoors or out. Ideal for touring, broadcast, and fixed installations.

Technical Specifications

Light Source
19x 25W RGBW LEDs
Color Mixing
RGBW with 16-bit control for smooth color transitions
Beam Angle
8° to 66° motorized zoom
Dimming
16-bit master dimming with 6 selectable dimming curves
Control Protocol
DMX-512, RDM compatible
DMX Channel Modes
Multiple channel modes for flexible control options
Pixel Control
5 individually addressable LED zones
Movement Range
540° pan / 270° tilt with fast, fluid motion
Connectivity
5-pin XLR DMX input and output
Display
High-contrast OLED display with user-friendly interface
PWM Frequency
Selectable settings for flicker-free operation on camera
White Balance
User-calibrated with 7500K default setting
Housing
IP65-rated aluminum/magnesium alloy, built for all-weather use
Cooling System
Quiet, efficient fan cooling
Firmware Updates
Via USB-C for easy software maintenance
Power Supply
100-240V AC, 50/60Hz auto-ranging
Power Consumption
Approximately 500W
Dimensions
Approx. 16.5” x 12” x 20” (420mm x 305mm x 508mm)
Weight
Approx. 40 lbs (18 kg)
