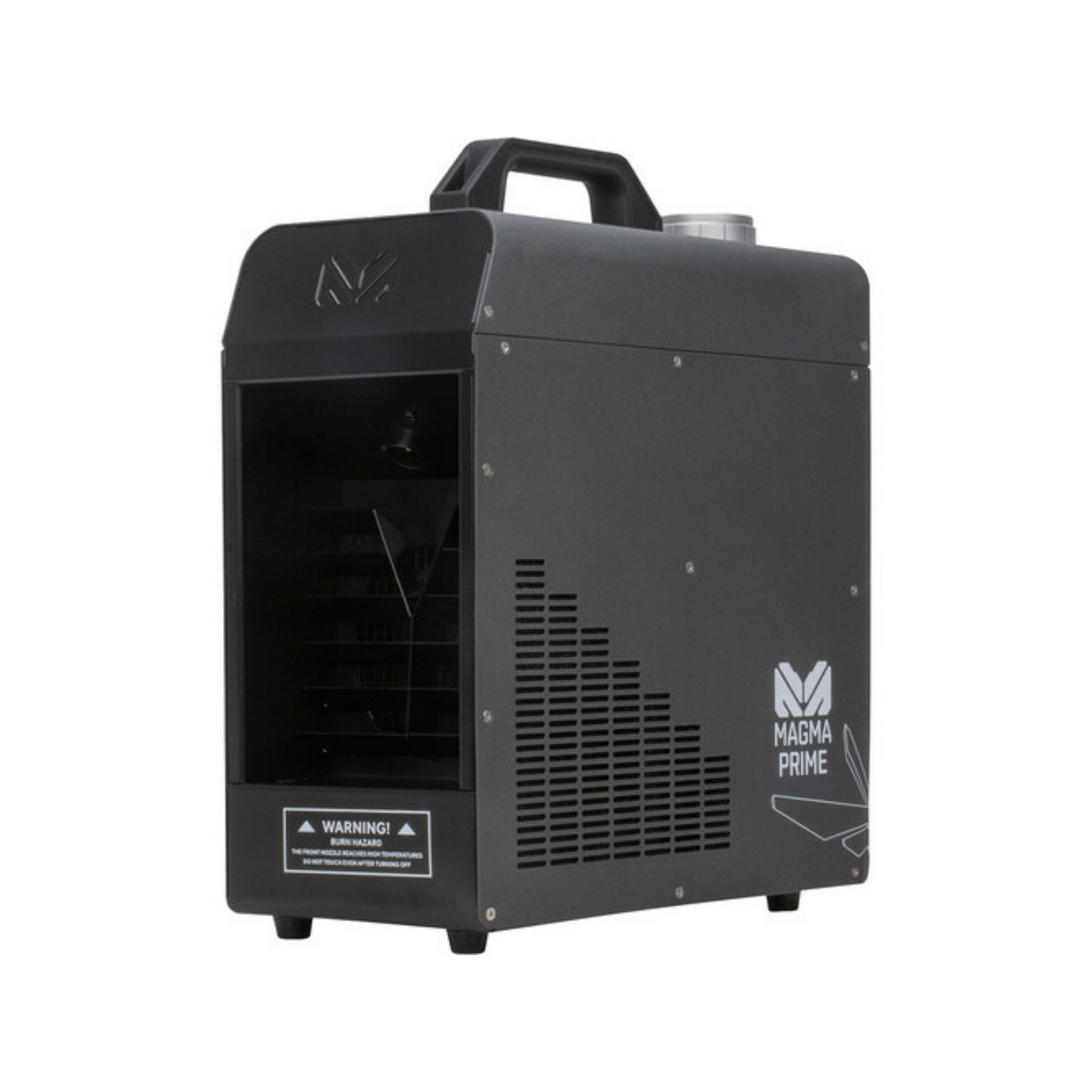

Magmatic Magma Prime

Magmatic Magma Prime


Rate Calculator

Product Highlights

  • High-volume, dry faze effect with low fluid consumption using advanced HPA pump technology.
  • Compact and robust design with an easy-to-use onboard LCD touch control panel.
  • Supports DMX-512 and RDM control, with optional wireless DMX and remote control options.
  • Durable aluminum housing suitable for various event settings.
View full details

The MAGMA PRIME is a cutting-edge water-based fazer that stands out for its ability to produce a high-volume dry faze effect while maintaining low fluid consumption, making it an ideal choice for event organizers and planners. Its advanced HPA (high pressure air) pump technology significantly reduces the risk of heater clogging, ensuring a smooth operation throughout your event. The device is housed in a durable aluminum frame and features an onboard LCD touch screen control panel, offering intuitive operation and flexibility with DMX-512 and RDM control capabilities. Additionally, the MAGMA PRIME's compact, lightweight, and robust design makes it perfectly suited for a wide range of events, including conferences, weddings, parties, concerts, and corporate events, where reliable and effective visual audio equipment is crucial.

  • Performance
    • Rated Power: 700W
    • Max Output: 4,000 CFM (cu ft/min.) (113 m3/min*)
    • Ready Time: Initial = 6 Minutes*
    • Fluid Capacity: 0.345 gallons (1.3 liters)
    • Fluid Consumption: 0.115 oz/min (3.4 ml/min)
    • *Approximate
  • Compatible Fluid
    • Atmosity Extreme Filtered Fog Fluid (AEF-4L)
  • Construction
    • Thermally Protected Heat Exchanger
    • Sealed Fluid Reservoir
    • External Visual Fluid Level Detection
    • Compact Light Weight Mobile Design
  • Control
    • 3 DMX Channel Modes (1 / 3 / 5)
    • DMX-512 and RDM Protocol Support
  • Connections
    • Locking 5pin XLR Connector In/Out
    • IP65 Locking Power Connector In
    • With Wired Digital Communication Network
  • Size / Weight
    • Length: 13.3 in. (338mm)
    • Width: 6.30 in. (160mm)
    • Height: 15.70 in. (400mm)
    • Weight: 22.48 lbs. (10.2kg)
  • Electrical
    • AC120V 60Hz (US Version)
    • AC230V 50Hz (EU Version)
    • 9A @ 120VAC(NFB)
    • 5A @ 230VAC - 240VAC
    • Max Power Consumption: 720W
  • Thermal
    • Maximum Ambient Temperature (Ta max) 104°F (40°C)
    • Exterior Surface Temperature, Steady State: 122°F (50°C)
  • Approvals / Ratings
    • CE | cETLus | FCC | IP20
