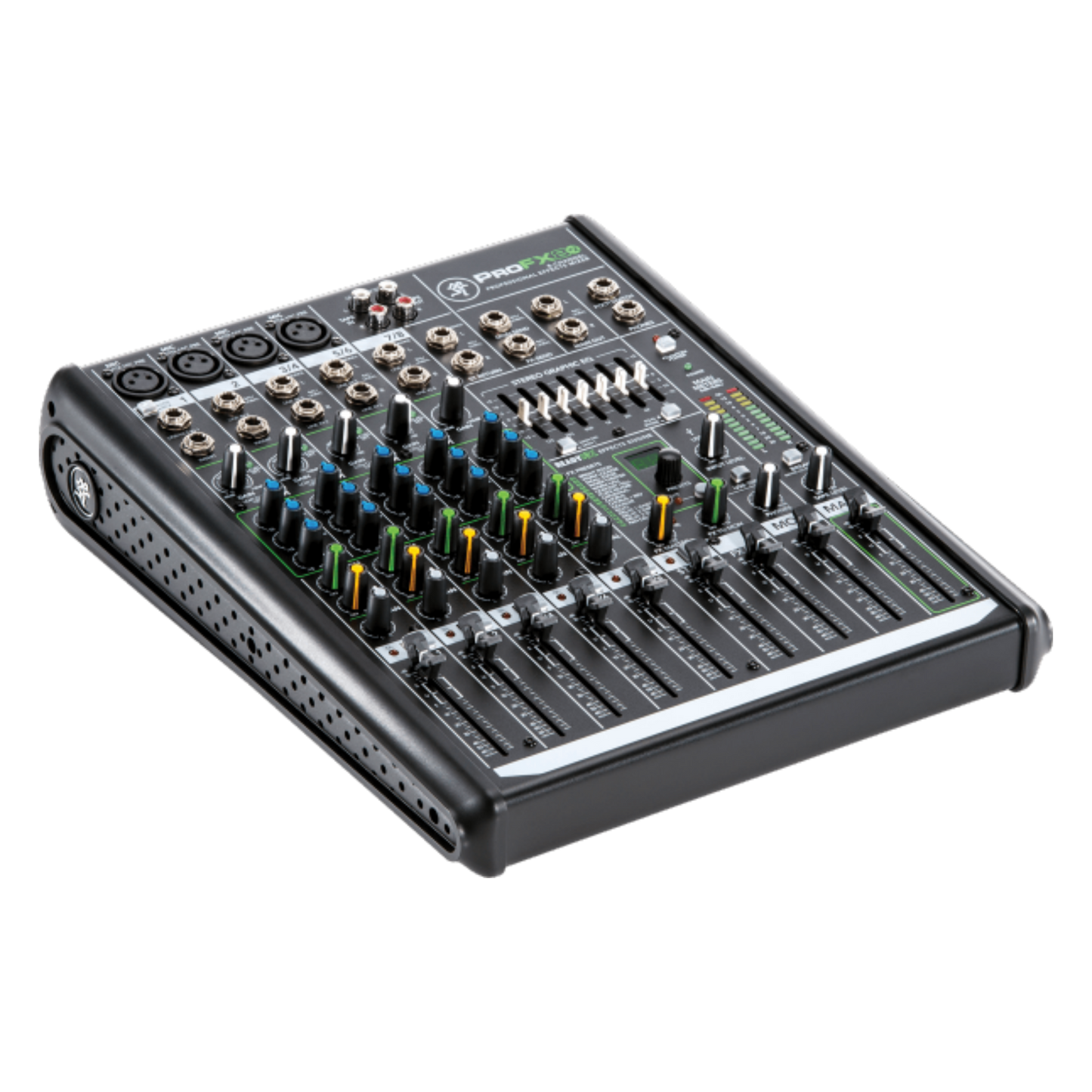

Mackie ProFX8

Mackie ProFX8


Rate Calculator

Product Highlights

  • Features four Mackie high-headroom, low-noise mic preamps, ensuring clear audio capture.
  • Includes a built-in DI for direct connection of guitars or basses, integrated effects, and a precision 7-band GEQ.
  • Housed in a rugged enclosure, embodying Mackie's "Built-Like-A-Tank" tradition for durability.
  • Equipped with the tools to make your gig sound better and run smoother, perfect for various live sound applications.
View full details

The ProFX8 is the ultimate live sound toolbox for solo performers, bands, and sound engineers, featuring high-headroom mic preamps, great-sounding effects, channel EQ, a built-in DI, and precision GEQ. This mixer is designed to handle any live sound situation with ease, ensuring your performance sounds its best. The inclusion of "Gig-Ready" RMFX™ effects, USB I/O for recording and playback, and a robust steel chassis makes the ProFX8 a versatile and durable choice for any live event.

  • Professional 8-channel Compact Mixer with onboard effects and USB I/O
  • 4 low-noise, high-headroom Mackie mic preamps with easy LED metering
  • 32-bit RMFX™ processor with 16 "Gig-Ready" reverbs, choruses, and delays
  • Precision 7-band graphic EQ for tuning Mains or Monitors
  • USB I/O for recording shows and music playback via Mac or PC
  • 3 full stereo channels plus extra stereo return for keyboards, external effects or stereo playback devices
  • 60mm faders for input channels, returns and Main/Monitor masters
  • 3-band active EQ (80Hz, 2.5kHz, and 12kHz) on all channels
  • Hi-Z input for direct connection of guitar, bass, and other instruments
  • Insert, 100Hz low cut filter, and 48V phantom power on all mic channels
  • Stereo RCA tape I/O with input level control
  • Headphone output with separate rotary level control
  • Balanced XLR and balanced/unbalanced 1/4-inch Main outputs
  • FX mute with remote control via footswitch
  • Break switch mutes all channels for music playback between sets
  • Built-like-a-tank steel chassis with rugged, yet stylish ABS sidecheeks
  • "Planet Earth" switching power supply for worldwide use
  • Includes Tracktion 3 Music Production Software for Mac or PC
  • Noise Characteristics
    • Mic in to Insert Send out, max gain –127 dBu
    • All outputs, master levels off, all channel levels off –95 dBu
    • All outputs, master levels unity, all channel levels off –90 dBu
    • All outputs, master levels unity, one channel level unity –85 dBu
  • Frequency Response: 20 Hz to 30 kHz +0 dB / –1 dB
  • Distortion (THD+N): Mic in to Main out <0.05% @ +4 dBu output
  • Attenuation and Crosstalk
    • Channel Mute switch engaged –90 dBu
    • Channel Fader down –90 dBu
  • Common Mode Rejection Ratio (CMRR): 1 kHz 60 dB gain
  • Maximum Levels
    • All inputs +22 dBu
    • Main Mix XLR +28 dBu
    • All other outputs +22 dBu
  • Impedances
    • Mic In 3 k Ohms
    • Channel Insert Return 10 k Ohms
    • Ch 1 Instrument input 1 M Ohms
    • All other inputs 20 k Ohms
    • Tape output 1.1 k Ohms
    • Phones output 25 Ohms
    • All other outputs 120 Ohms
  • EQ
    • High Shelving ±15 dB @ 12 kHz
    • Mid Peaking ±15 dB @ 2.5 kHz
    • Low Shelving ±15 dB @ 80 Hz
    • Low Cut Filter 100 Hz, –18 dB/octave
  • Digital Effects
    • I/O Mono Input / Stereo Output
    • Number of Presets 16
  • USB
    • Format USB 1.1
    • I/O Stereo Input / Stereo Output
    • A/D/A 16 Bit, 44.1 kHz / 48 kHz
  • Phantom Power: 48 VDC to all Mic channels at once
  • Power Consumption
    • Voltage Range 100 - 240 VAC, 50 - 60 Hz
    • Power Consumption 20 watts
    • Power Connector 3 Pin IEC
  • Dimensions: 11.41 in / 290 mm x
