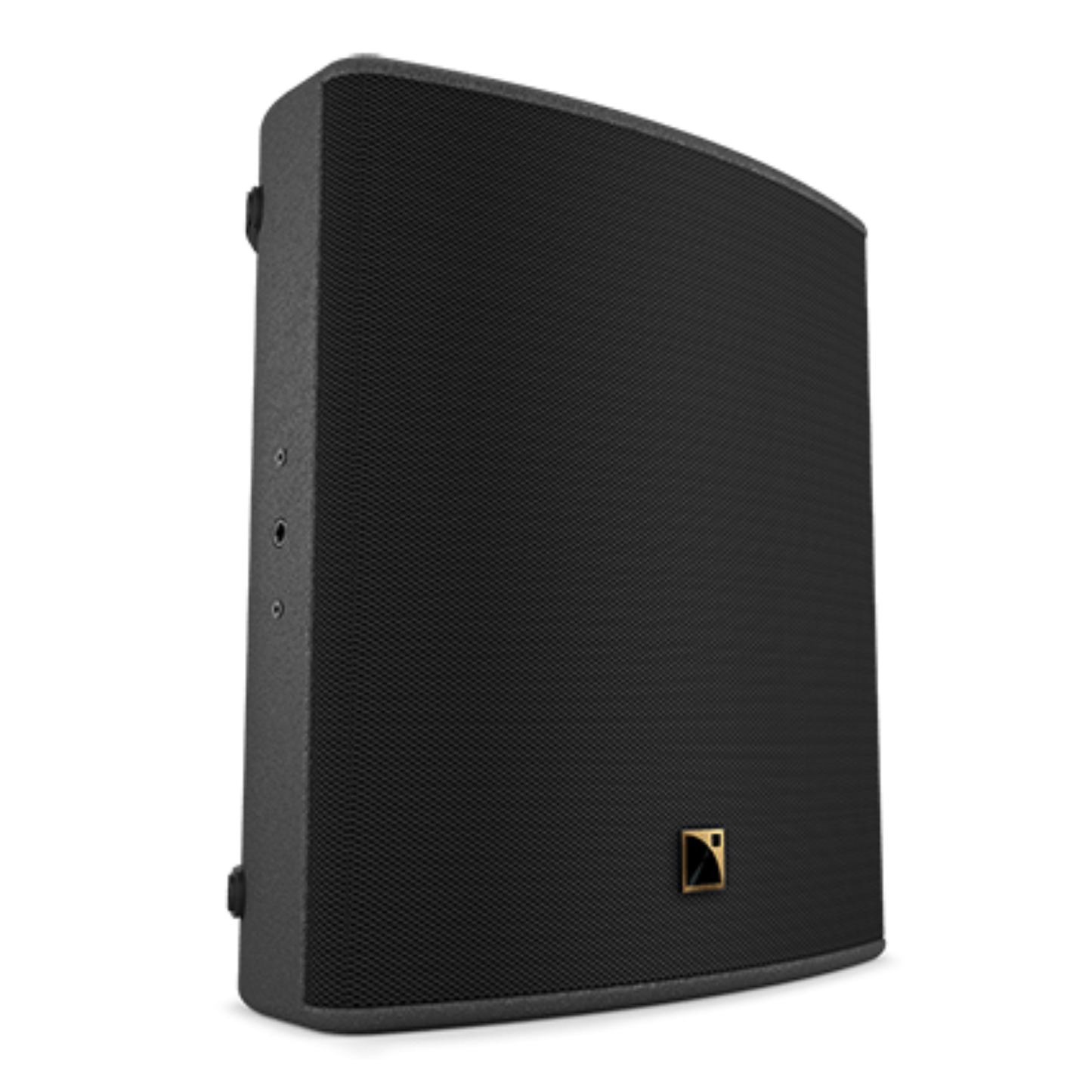

L-Acoustics X12

L-Acoustics X12

SKU LX12

Rate Calculator

Product Highlights

  • Versatile Use: Ideal for short throw applications in various events.
  • Coaxial Design: Features a 2-way passive, 12" coaxial design for studio-quality sound.
  • High SPL: Capable of reaching a maximum SPL of 136 dB.
  • Ellipsoid Waveguide: Incorporates an Ellipsoid Waveguide for controlled directivity.
View full details

The X12 is a jack of all trades, perfectly suited for any short throw duty imaginable in events like conferences, weddings, and concerts. Its 2-way passive, 12" coaxial design, a hallmark of L-Acoustics, brings studio quality to near-field applications, ensuring clear and powerful sound. The Ellipsoid Waveguide technology, first introduced in the X12, provides distinct coverage angles for both vertical and horizontal dimensions, enhancing the versatility of the enclosure and improving control over the reverberant field.

  • Type: 2-way passive coaxial enclosure
  • Usable Bandwidth (-10 dB): 59 Hz – 20 kHz
  • Maximum SPL: 136 dB
  • Nominal Directivity (-6 dB): Vertical: 90° symmetric, Horizontal: 60° symmetric
  • Monitor Angle: Without risers: 35°, With risers: 55°
  • Transducers: LF: 1 x 12" cone driver, HF: 1 x 3" diaphragm compression driver, neodymium
  • Acoustical Load: Bass-reflex, L-Vents, ellipsoidal waveguide
  • Nominal Impedance: 8 Ω
  • Connectors: IN: 1 x 4-point speakON, LINK: 1 x 4-point speakON
  • Rigging and Handling: 2 x handles, DIN580-compatible M8 threaded insert, 4 M10 threaded inserts, 1 x 35 mm pole socket
  • Weight (Net): 20 kg / 44.1 lb
  • Cabinet Material: Premium grade Baltic beech and birch plywood, steel with anti-corrosion coating, acoustically neutral 3D fabric
  • Finish Options: Dark grey brown Pantone 426 C, pure white RAL 9010, custom RAL code on special order
  • IP Rating: IP43
