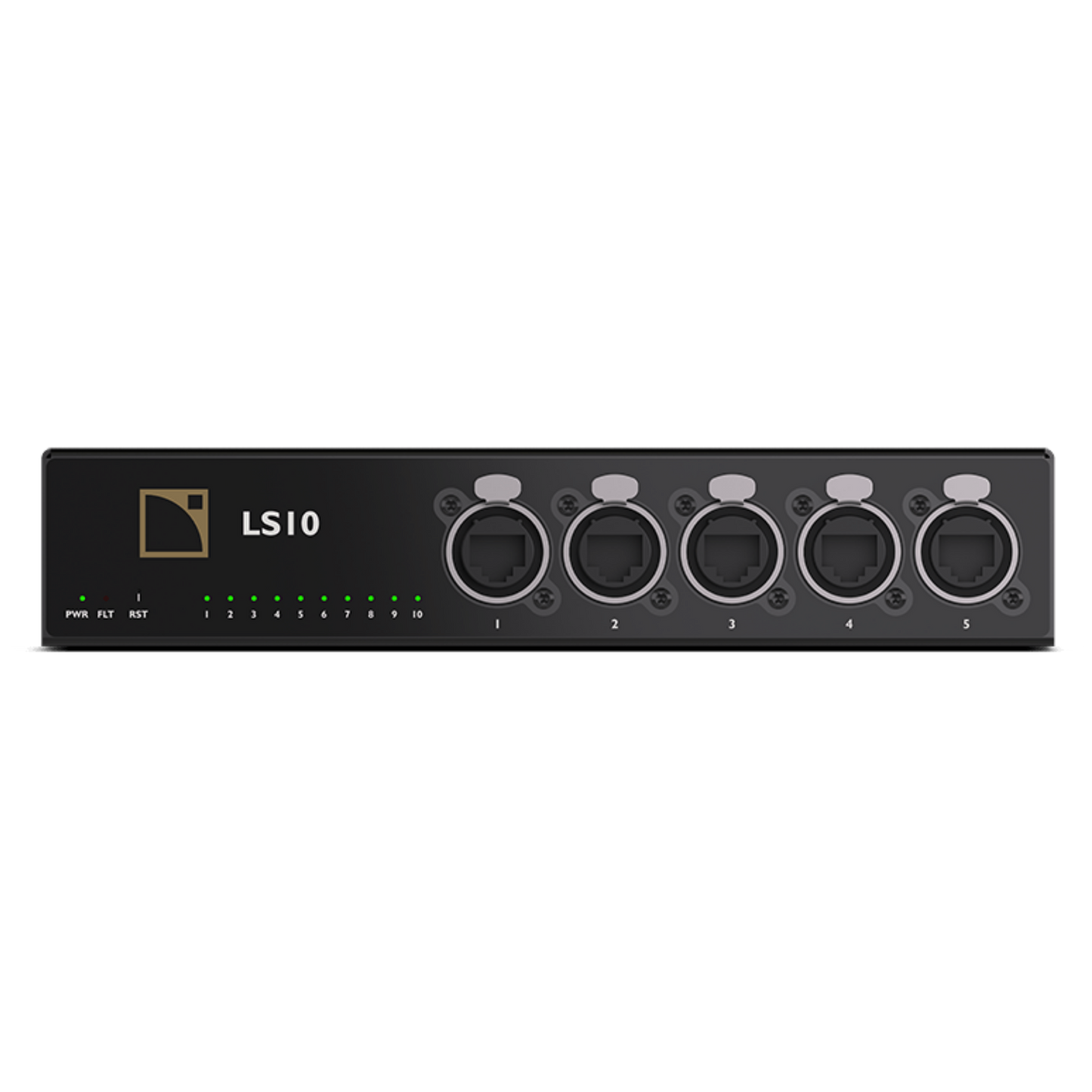

L-Acoustics LS10

L-Acoustics LS10


Rate Calculator

Product Highlights

  • Avnu-Certified AVB Switch: The LS10 is a high-performance, Avnu-certified AVB switch, ensuring reliable and standardized networked audio communications.
  • 10-Port Ethernet Architecture: It features a 10-port Ethernet AVB with 8 EtherCON 1 Gb/s ports and 2 SFP cages at 1 Gb/s, offering extensive connectivity options.
  • Compact and Efficient Design: The unit is designed with a height of 1U and a width of 1/2 U, making it highly space-efficient for any setup.
  • Advanced Network Management: Includes features like gPTP priority, RSTP, and general fault indication GPO for enhanced network control and monitoring.
View full details

The LS10 AVB Switch is an essential tool for event organizers and planners, offering a reliable and standardized solution for networked audio communications. Its 10-port Ethernet AVB architecture, including 8 EtherCON and 2 SFP cages, provides extensive connectivity to accommodate a wide range of audio equipment. The compact design, occupying only 1U in height and 1/2 U in width, makes it an ideal choice for space-constrained environments. Additionally, its advanced network management capabilities, such as gPTP priority and RSTP, ensure efficient and secure audio data transmission, crucial for the smooth operation of events like conferences, weddings, and concerts.

  • Architecture: 10-port Ethernet AVB
  • Ethernet Ports: 8 EtherCON 1 Gb/s, 2 SFP cages 1 Gb/s
  • Size: 1U height x 1/2 U width
  • Power Supply: IEC inlet with V-lock, 24 V DC redundant I/O power
  • Management Features: gPTP priority, RSTP, General fault indication GPO
  • Mains Rating: 100 V - 240 V (±10%), 50-60 Hz
  • Connector: Lockable IEC connector C13
  • Power Consumption: 10 W - 20 W max when powering another LS10
  • Backup Power Circuit: 24 V DC redundant power input, 24 V DC redundant power output
  • AVB Ports: 8 x Neutrik etherCON I/O (5 in the front, 3 in the back), 2 x SFP cages (rear)
  • AVB Bridge: Avnu-certified
  • Standards: IEEE 802.1BA-2011 standard augmented by Avnu ProAV 1.1 requirements
  • Supported AVB Streams: 150
  • Startup Time: Ready to forward AVB streams in 5 seconds
  • Port Sensing Features: Auto negotiation, Auto crossover, MDI / MDIX, Autosensing, Full or Half Duplex (Gigabit is always Full Duplex Mode)
  • Indicators: 1 LED for power status, 1 LED for fault status, 10 LEDs for link/act status
  • Button: Reset to factory settings
  • Remote Control Software: L-Acoustics remote control software
  • GPIO: 1 user-configurable GPO
  • Operating Temperature: -5°C / 23°F to +50°C / 122°F
  • Weight: 1.5 kg / 2.2 lb
  • Protection Rating: IP30
