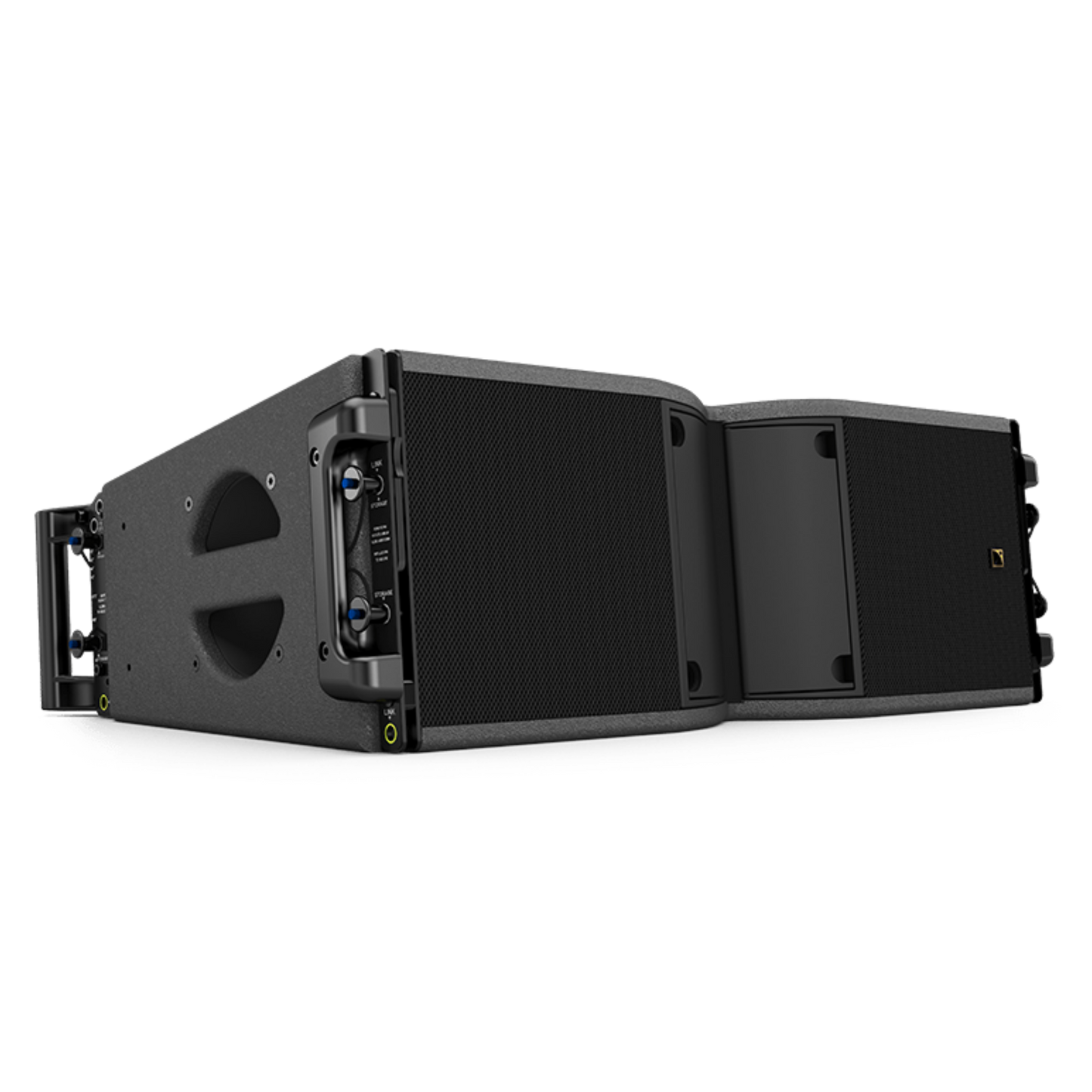

L-Acoustics KARA II

L-Acoustics KARA II

SKU LKAR2

Rate Calculator

Product Highlights

  • Versatile Design: The KARA II is a 2-way active, dual 8" variable curvature line source, offering flexibility in various event settings.
  • Advanced Technology: Incorporates L-Vents for clear low-frequency power, DOSC wavefront sculpture technology, and Panflex for adjustable directivity.
  • High Performance: Delivers a maximum SPL of 142 dB, ensuring powerful sound output for large events.
  • Durable and Portable: Designed for the road, it is rugged yet efficient, with a best-in-class SPL per weight and footprint.
View full details

The KARA II represents the new dawn in L-Acoustics' K Series, bringing together innovative technologies and design for event organizers. Its 2-way active system with dual 8" speakers and variable curvature line source offers unparalleled sound coverage and quality.

The integration of L-Vents technology minimizes turbulence noise, enhancing low-frequency clarity, while the proprietary DOSC and Panflex technologies allow for precise sound sculpting and adjustable directivity.

This makes the KARA II ideal for a wide range of events, from concerts to corporate gatherings, ensuring clear and powerful audio performance.

  • System Type: 2-way active WST® enclosure, amplified by LA4X / LA8 / LA12X
  • Bandwidth: Usable bandwidth (-10 dB) 55 Hz – 20 kHz ([KARA II 70])
  • Maximum SPL: 142 dB ([KARA II 70])
  • Nominal Directivity: Horizontal: 70° / 110° symmetric or 90° asymmetric; Vertical: dependent upon the number of elements and the line source curvature
  • Transducers: LF: 2 x 8” neodymium cone drivers; HF: 1 x 3” neodymium diaphragm compression driver
  • Acoustical Load: LF: bass-reflex; HF: DOSC waveguide, Panflex
  • Nominal Impedance: LF: 8 Ω; HF: 8 Ω
  • Connectors: 2 x 4-point speakON
  • Rigging and Handling: 4-point captive rigging system; 2 side handles; 2 rear handles; inter-enclosure angles: 0°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10°
  • Weight (net): 26 kg / 57 lb
  • Cabinet Material: Premium grade Baltic birch plywood; coated steel grill; acoustically neutral 3D fabric
  • Rigging Components: High grade steel with anti-corrosion coating
  • Finish: Dark grey brown Pantone 426 C
  • Ingress Protection: IP55
