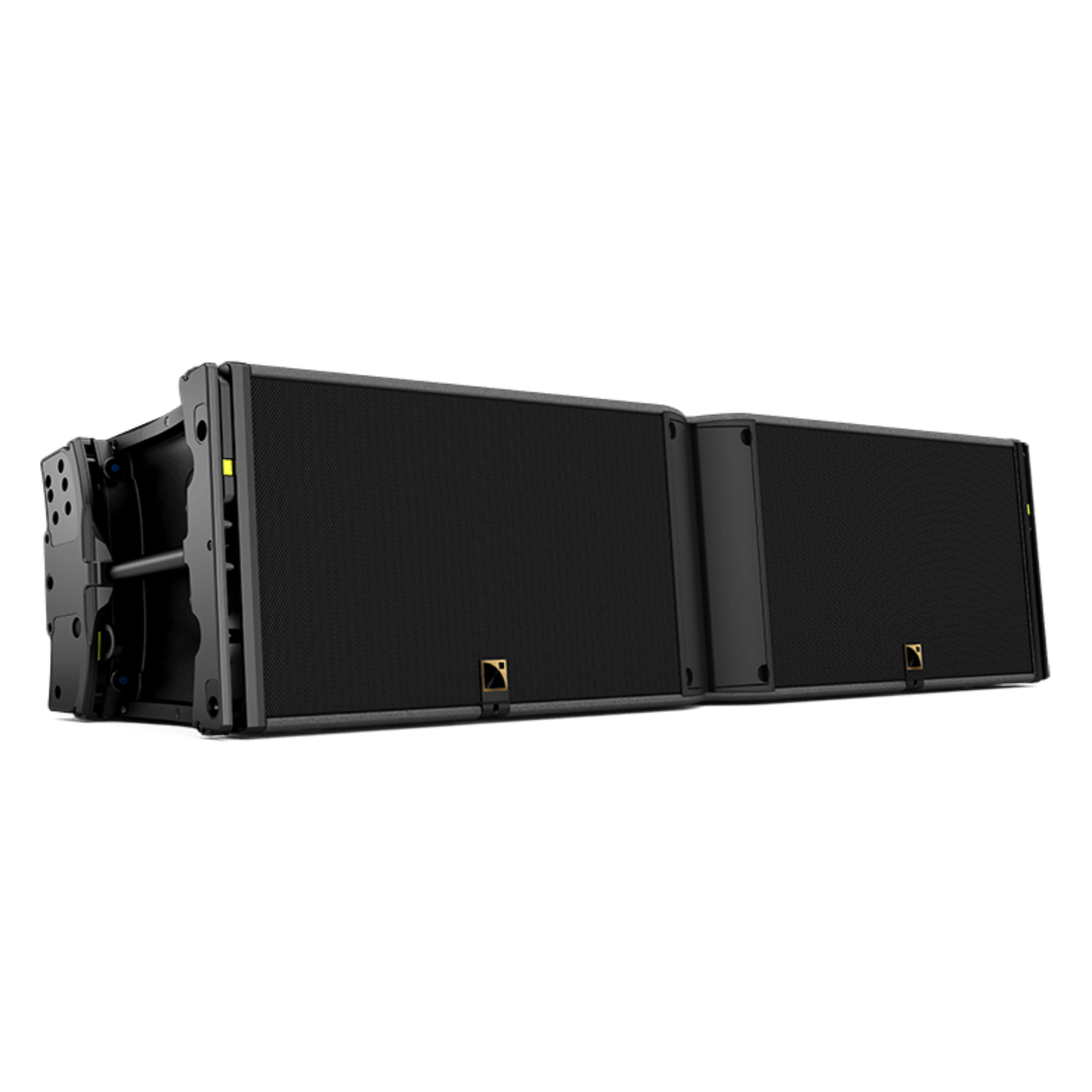

L-Acoustics K2

L-Acoustics K2

SKU LAK2

Rate Calculator

Product Highlights

  • Lightweight Heavyweight: The K2 is a 3-way active, dual 12" variable curvature line source, offering a powerful yet lightweight solution for large-scale events.
  • Advanced Technology: Incorporates L-Vents for clear low-frequency power, DOSC technology for coherent sound across frequencies, and Panflex for adjustable directivity.
  • High Performance: Capable of reaching a maximum SPL of 147 dB, with a bandwidth of 35 Hz - 20 kHz, ideal for events up to 20,000 people.
  • Durable and Versatile: Designed with a rugged build for the road, it features an effortless rigging system and 4 horizontal directivity options with Panflex.
View full details

The K2 from L-Acoustics is a testament to advanced audio engineering, ideal for event organizers and planners. Its lightweight design belies its powerful output, capable of catering to large audiences without compromise in sound quality. The integration of L-Vents and DOSC technology ensures clear, low-frequency power and consistent sound quality across all frequencies. The Panflex feature adds versatility, allowing users to tailor the system's coverage pattern to any audience geometry, making it perfect for a wide range of events from concerts to corporate gatherings.

  • Type: 3-way active full-range WST® enclosure, quad-amplified by LA4X / LA8 / LA12X
  • Usable Bandwidth (-10 dB): 35 Hz – 20 kHz ([K2 70])
  • Maximum SPL: 147 dB (preset [K2_70])
  • Nominal Directivity (-6 dB):
    • Horizontal: 110° / 70° symmetric; 90° asymmetric (35°/55° or 55°/33°)
    • Vertical: Depends on the number of elements and array curvature
  • Transducers:
    • LF: 2 × 12” cone drivers
    • MF: 4 × 6.5” cone drivers
    • HF: 2 × 3” diaphragm compression drivers
  • Acoustical Load:
    • LF: Bass-reflex, L-Vents
    • MF: Bass-reflex
    • HF: DOSC waveguide, Panflex
  • Nominal Impedance:
    • LF: 2 x 8 Ω
    • MF: 8 Ω
    • HF: 16 Ω
  • Connectors: 2 x 8-point PA-COM
  • Rigging and Handling: Captive 4-points rigging system, 2 large side handles, Inter-enclosure angles: 0.25, 1, 2, 3, 4, 5, 7.5, or 10°
  • Weight (net): 56 kg / 123 lb
  • Cabinet Material: Premium grade Baltic birch plywood, coated steel grill, acoustically neutral 3D fabric
  • Side Panels: Die-cast aluminium
  • Rigging Components: High-grade steel with anti-corrosion coating
  • Finish: Dark grey brown – Pantone 426 C
  • IP Rating: IP55
