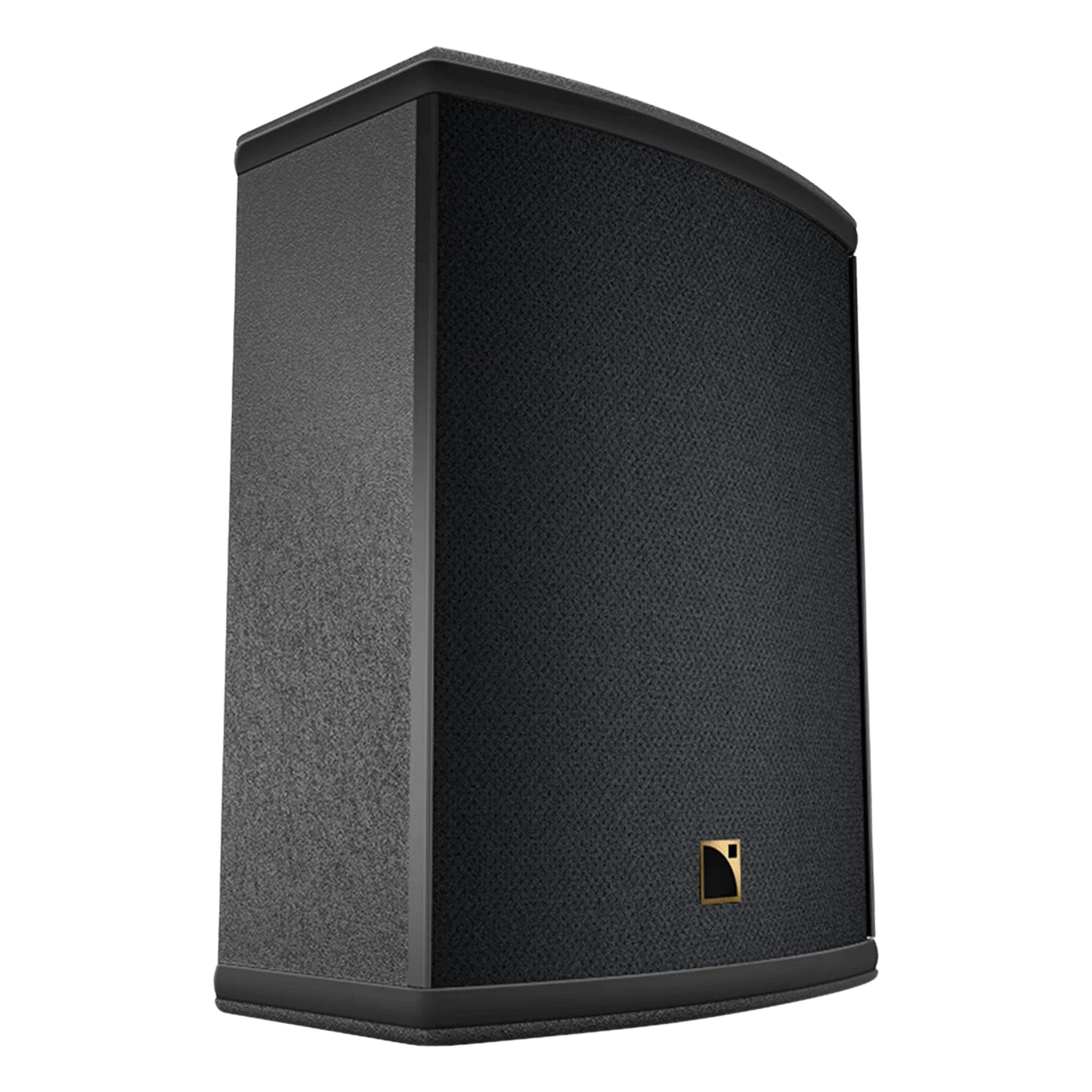

L-Acoustics 112P

L-Acoustics 112P


Rate Calculator

Product Highlights

  • The L-Acoustics 112P is a versatile, self-powered coaxial loudspeaker.
  • Features a frequency bandwidth from 50 Hz to 20 kHz, extendable to 40 Hz with the SB15P subwoofer.
  • Equipped with a 3” diaphragm compression driver and a 12” low frequency transducer.
  • Offers a 90° axi-symmetric directivity and exceptional feedback immunity, ideal for monitoring.
View full details

The L-Acoustics 112P stands out as a multifaceted model in the L-ACOUSTICS® self-powered coaxial P series, designed for a wide range of sound reinforcement applications. Its advanced coaxial configuration, combining a 3” diaphragm compression driver with a 12” low frequency transducer, ensures a consistent 90° axi-symmetric output and a smooth tonal response across all frequencies. This design not only enhances sound quality but also significantly reduces feedback, particularly in monitoring scenarios. The 112P's robust construction, including high-grade Baltic birch plywood and a wedge-shaped design, makes it suitable for various setups, from pole-mounting to flying with optional accessories.

  • Usable Bandwidth (-10dB): 50 Hz - 20 kHz ((FRONT) preset)
  • Nominal Directivity (-6dB): 90° Axi-symmetric
  • Maximum SPL: 133 dB ((FILL) preset)
  • Components:
    • LF: 1 x 12” transducer in a bass-reflex enclosure
    • HF: 1 x 3” diaphragm compression driver
  • Electrical Specifications:
    • Input Stage: Balanced, max level of +12 dBu (at 0 dB setting)
    • DSP: 24 bit/48 kHz
    • Amplifier Power Rating: 1000 W, 8 ohms
  • Physical Data:
    • Dimensions (H x W x D): 540 x 410 x 390 mm - 21.3 x 16.1 x 15.4 in
    • Wedge Angle: 30° from vertical
    • Weight (net): 32 kg - 70.5 lb.
    • Connectors: 2 x XLR in parallel, 2 x Powercon® 120 or 230 V selectable by switch
    • Material: 18, 24, and 30 mm Baltic birch plywood
    • Finish: Dark grey brown Pantone® 426C
    • Front: Polyester powder-coated steel grill, acoustically transparent Airnet® cloth
    • Rigging: Integrated pole mount socket, optional ETR12-2 bracket, and XTLIFTBAR accessory
