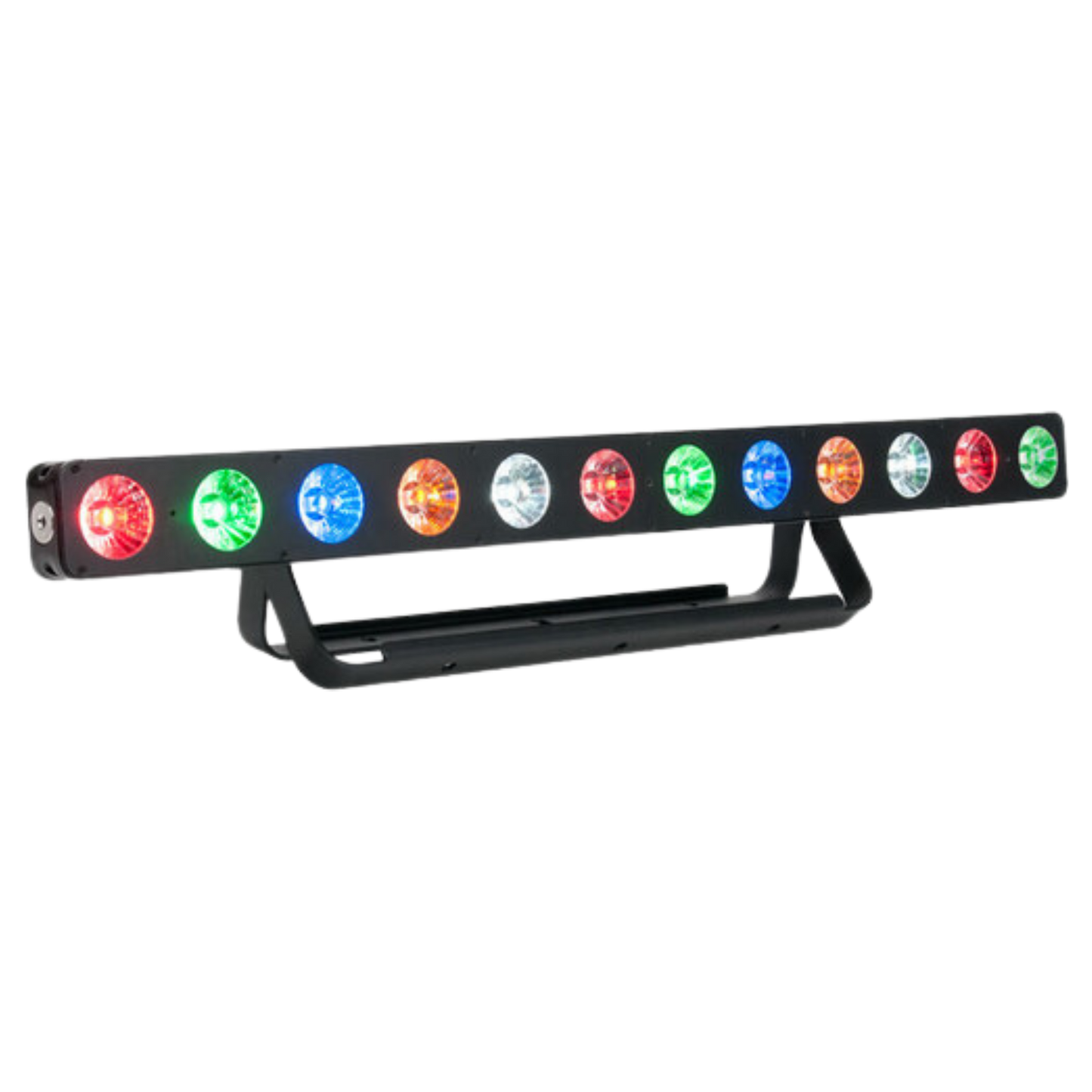

Elation SixBar 1000

Elation SixBar 1000

SKU SIXBAR1000

Rate Calculator

Product Highlights

  • Versatile Lighting Fixture: The SIXBAR 1000 is a 12x 12W RGBAW+UV LED batten fixture, ideal for various event lighting needs.
  • Advanced Control Features: Offers individual LED control, variable dimming curve modes, and supports ArtNet, KlingNet, and RDM protocols.
  • High-Quality Construction: Built with a rugged die-cast aluminum exterior, ensuring durability and reliability for event use.
  • Optimized for Broadcast: Flicker-free operation makes it suitable for TV and film applications, enhancing its versatility.
View full details

The SIXBAR 1000 is a dynamic lighting solution equipped with 12 powerful 12W 6-IN-1 RGBAW+UV LEDs, designed to deliver vibrant and versatile lighting effects for any event. Its 30° beam angle and individual LED control allow for precise and creative lighting designs, suitable for conferences, weddings, and concerts. The fixture's robust construction and flicker-free performance make it an ideal choice for both live events and broadcast environments, ensuring high-quality lighting in any setting.

  • Source: (12) 12W 6-in-1 RGBAW+UV LEDs, 100,000 Hour Average LED Life
  • Photometric Data: 8,500 LUX @ 3.3ft (1m) (30° Full ON), 3,660 LUX @ 6.6ft (2m) (30° Full ON), 2,040 LUX @ 9.8ft (3m) (30° Full ON), 1,290 LUX @ 13.1ft (4m) (30° Full ON), 878 LUX @ 16.4ft (5m) (30° Full ON)
  • Effects: Strobe and Chase Effects, Variable and Selectable Dimming Curves
  • Control / Connections: 8 DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79), 4 Button Control Panel and LCD Menu Display, ArtNet + KlingNET Protocol Support, RDM (Remote Device Management), (2) Ethernet Ports, 3pin and 5pin DMX In/Out, Locking Power Cable In/Out
  • Size / Weight: Length: 35.4” (900mm), Width: 8.1” (206.4mm) *with included glare shield, Vertical Height: 6.1” (155mm), Weight: 16.0 lbs. (7.3 kg)
  • Electrical / Thermal: AC 110-240V - 50/60Hz, 145W Max Power Consumption, Power Linking: 6pcs @110V / 15pcs @240V, Operating Temperature: 5°F to 113°F (-15°C to 45°C)
  • UV Wavelength: 395nm
  • Approvals / Ratings: CE | cETLus | IP20
  • Included Items: Locking Power Cable, Frost Filter, Glare Shield
