Elation CUEPIX 16IP

Elation CUEPIX 16IP

SKU

Rate Calculator

Product Highlights

  • Versatile IP65 Outdoor Rated Effect Panel Luminaire
  • 4x4 Array of 16 30W 4-in-1 RGBA COB LEDs
  • 62° Beam and 87° Field Angles
  • Full Pixel Control with Pixel Flip Modes
  • RGB+ Dynamic Amber Channel Mode
  • 16-bit Dimming and Variable Dimming Curve Modes
  • High Speed Electronic Shutter and Strobe
  • Adjustable LED Refresh Rate Frequency and Gamma
  • Flicker Free Operation for Broadcast TV and FILM
  • No Fans for Noise-Sensitive Applications
  • DMX, RDM, Kling-NET, and Art-NET Protocol Support
  • 90° Adjustable and Fixed Yoke Brackets w/3-Position Holes

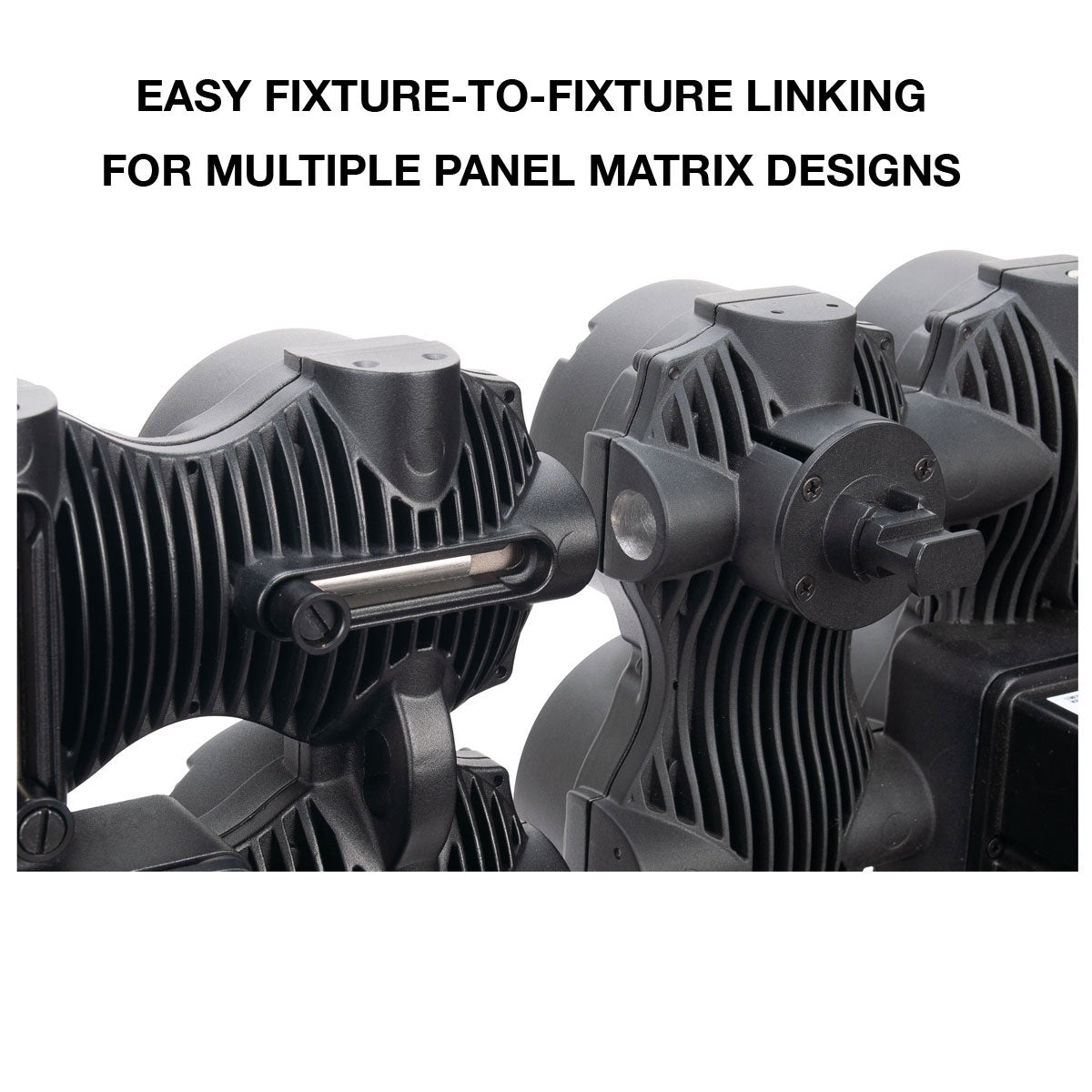

  • Integrated Fixture-to-Fixture Interlocking Alignment Pins/Locks
View full details

The CUEPIX 16IP is a versatile IP65 outdoor rated effect panel luminaire that features a 4x4 array of 16 30W 4-in-1 RGBA COB LEDs, 62° beam and 87° field angles, full pixel control and 5 pixel flip modes, RGB + Dynamic Amber modes, 16-bit dimming, variable dimming curve modes, high speed electronic shutter and strobe, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, no fans for noise-sensitive applications, DMX, RDM (Remote Device Management), Kling-NET, and Art-NET protocol support, IP65 rated locking 5pin XLR DMX, RJ45 Ethernet, and IP65 Locking Power Cable in/out connections, full color 180° reversible LCD control panel, and a multi-voltage universal auto switching power supply (100-240v). Versatile rigging options include 90° adjustable and fixed yoke brackets with 3-position mounting holes, and integrated alignment pins and interlocks for multiple panel matrix designs.

  • SOURCE
    • 16 30W 4-IN-1 RGBA COB LEDs
    • 50,000 Hour Average LED Life*
  • PHOTOMETRIC DATA
    • 6,400+ Total Lumen Output
    • 62° Beam / 87° Field Angles
    • 6,809 LUX / 633 FC @3.3' (1m) (Full ON)
  • EFFECTS
    • Full Pixel Control with Pixel Flip Modes
    • RGB + Dynamic Amber Channel Modes
    • Smooth Color Mixing and 64 Internal Color Macros
    • High Speed Electronic Shutter and Strobe
    • 16Bit Dimming and Variable Dimming Curve Modes
  • COLOR
    • RGBA
  • CONTROL / CONNECTIONS
    • 14 DMX Channel Modes (128 total channels)
    • Adjustable Refresh Rate (900-25,000 Hz)
    • Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
    • 4 Button OLED Menu Control Display
    • DMX, RDM, Kling-Net, and Art-Net Protocol Support
    • IP65 Locking 5pin XLR DMX, RJ45 Ethernet, Power In/Out
    • Fixture-to-Fixture Interlocking Alignment Pins/Locks with Wired Digital Communication Network
  • SIZE / WEIGHT
    • Length: 17.3” (440mm)
    • Width: 8.1” (206mm)
    • Vertical Height: 17.3” (440mm)
    • Weight: 33.0 lbs. (15.0 kg)
  • ELECTRICAL / THERMAL
    • AC 100-240V - 50/60Hz
    • 520W Max Power Consumption
    • 14°F to 113°F (-10°C to 45°C)
