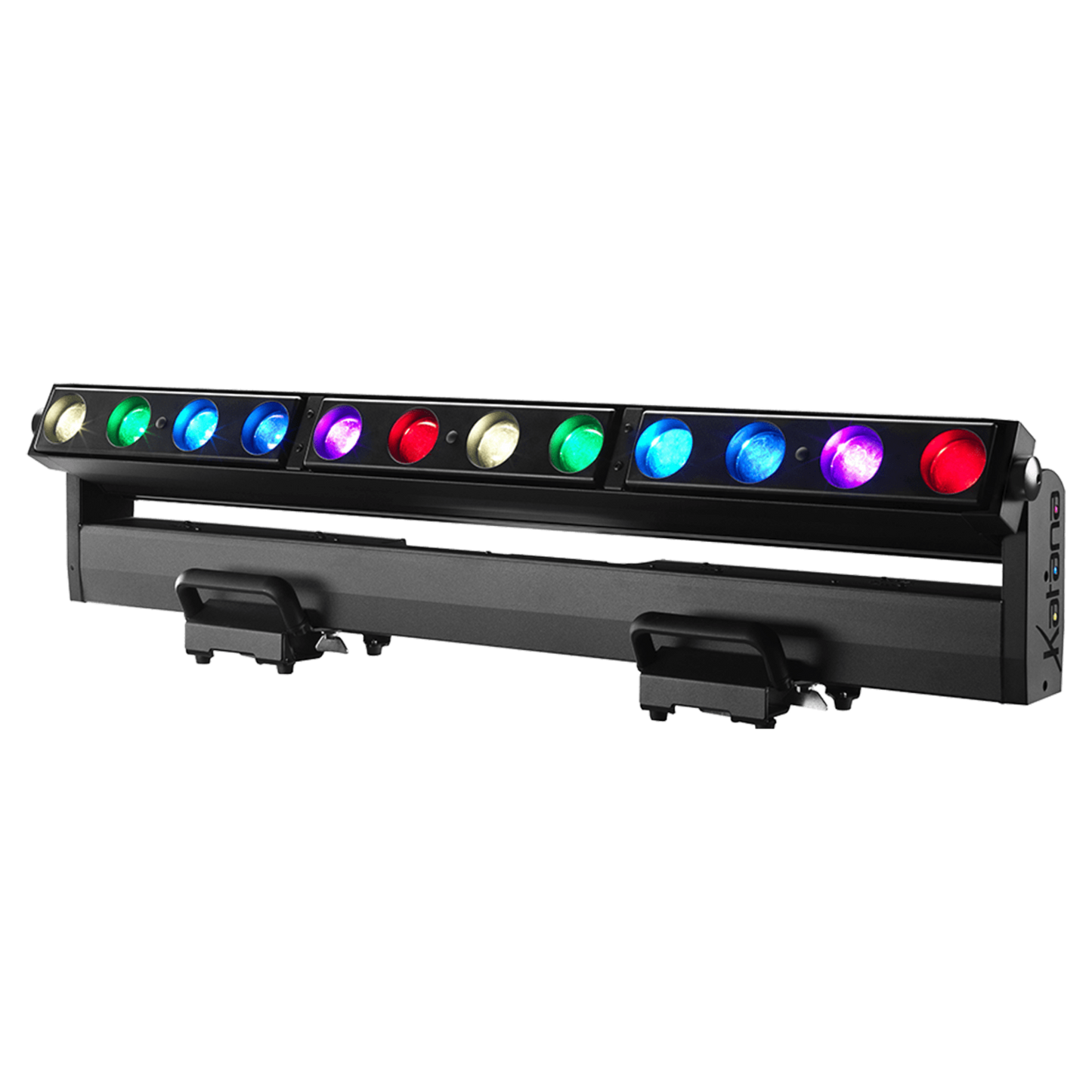

DTS Katana

DTS Katana

SKU DTSK

Rate Calculator

Product Highlights

  • Dynamic Blade Projection: Features a custom 3.5° - 30° linear zoom, enabling the projection of an extra-bright blade of light.
  • Advanced Color Mixing: Equipped with 12 x 20 W Full Color (RGBW) LEDs, offering high-quality color mixing and 16 million colors.
  • Single Pixel Control: Allows for stunning dynamic multicolor effects.
  • Ultra-Fast Motorized Tilt: Includes a motorized tilt of 184° with 16-bit movement resolution, adding dynamic impact to lighting performances.
View full details

The DTS Katana introduces a revolutionary lighting concept with its dynamic 'blade' projection, enabled by a custom 3.5° - 30° linear zoom. This advanced LED light is designed for the entertainment market, capable of cutting through any show with its extra-bright light beam.

The Katana's 12 x 20 W Full Color (RGBW) LEDs provide exceptional color mixing, creating a wide palette of 16 million colors and pure, uniform whites with variable linear color temperature ranging from 2700 K to 8000 K.

Its ultra-fast motorized tilt, reaching up to 184° with 16-bit resolution, adds a dynamic and impactful element to any lighting performance.

  • Output:
    • 12 x 20 W Full Color (RGBW) LEDs
    • Lumen Source: 9,600 lm
  • Optical Group:
    • Linear Motorized Zoom: 3.5° ('blade' mode) - 30°
  • Color Generation:
    • 16 Million Colors
    • Wide Palette of Pure Uniform Whites (2700 K - 8000 K)
  • Tilt:
    • Motorized Tilt: 184°
    • 16-bit Movement Resolution
  • Control:
    • Multi-function 4-digit 7-segment LED Display + 4 Soft Keys
    • Controlled via DMX 512 and RDM Standard Digital Communication Protocols
    • Firmware Updatable via DTS Firmware Uploader Dongle
  • DMX:
    • 24 DMX Channels (Default)
    • 64 DMX Channels
    • 16 DMX Channels
  • Power Supply:
    • Electronic Wide-range 100-240Vac 50/60 Hz
    • Power Consumption: 300 W Max
    • Power Factor: PF >0.95
  • Connections:
    • Power Supply: PowerCON TRUE1 In/Out Panel Connectors
    • DMX: XLR 5-pole In/Out Panel Connectors
  • Circuit Protections:
    • Overvoltage Circuit Protection
    • Overtemperature Circuit Protection
  • Operating Temperature: -10° / 40° C
  • Physical:
    • IP20
    • Weight: 19.5 Kg (43 lbs)
    • Finishing: Black
  • Included Accessories:
    • PowerCON TRUE1 Female and Male Cable Connectors
    • XLR 5 Pins Female and Male Cable Connectors
    • Omega Bracket with 'Fast Lock' Connection 1/4 Turn
    • Bracket for Ground Installation with Handles and Rubber Feet
