• DL22A-M Digital Podium
1 1
TEMAS

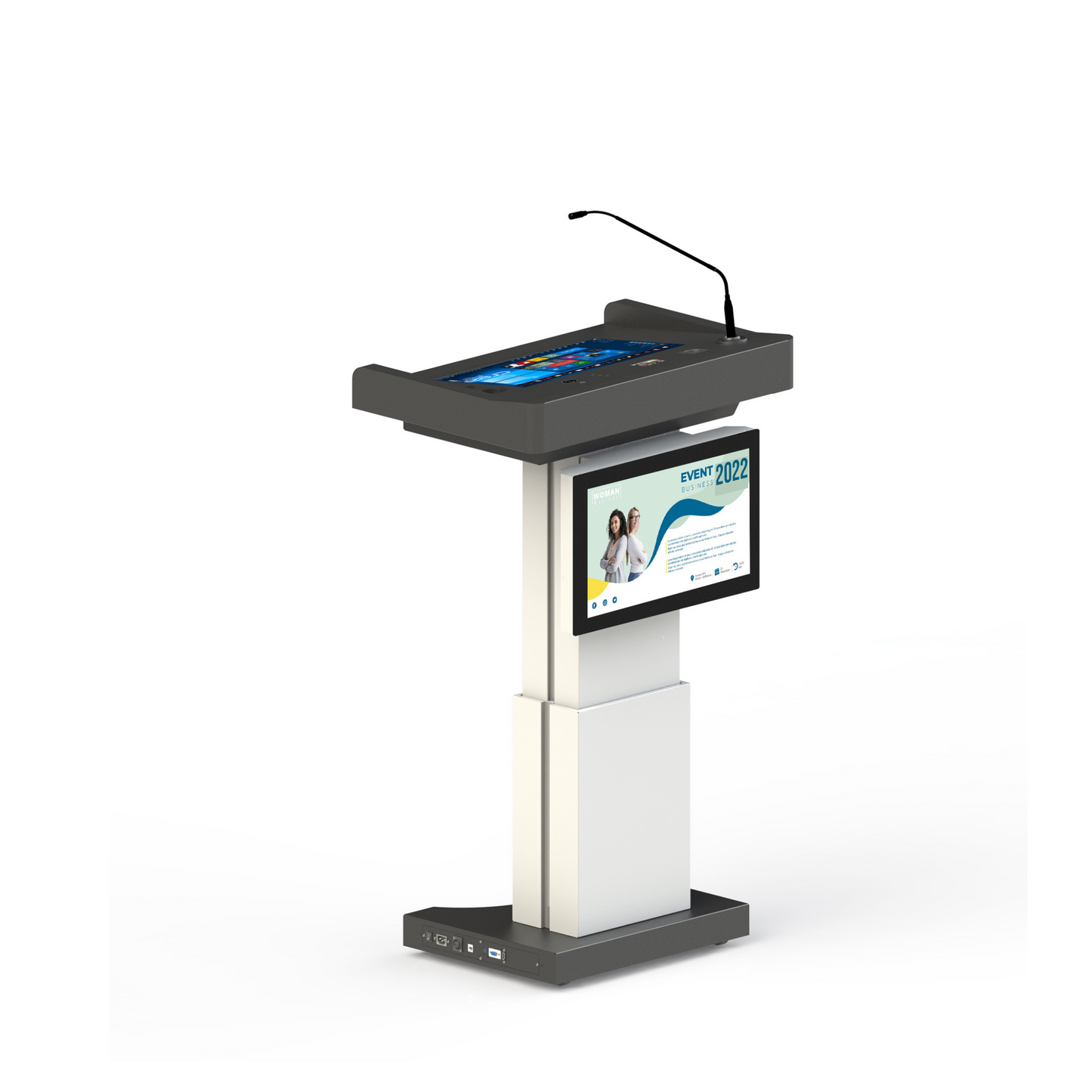

DL22A-M Digital Podium

DL22A-M Digital Podium

SKU DL22AM

Rate Calculator

Product Highlights

  • Ergonomic Design: Ideal for short speeches in settings like press or hotel conference rooms.
  • Advanced Display Technology: Features a 22" Multi-touch capacitive touch screen with IPS technology.
  • Integrated Systems: Includes a 24" front screen with an embedded signage media player and content management software.
  • Versatile Connectivity: Offers a range of inputs and outputs including USB ports, HDMI, Ethernet, and an XLR connector for the microphone.
View full details

The DL22A-M Digital Podium is designed to enhance the experience in various speaking environments, particularly suitable for short speeches in press or hotel conference rooms. Its ergonomic design is complemented by a 22" multi-touch capacitive touch screen, built with IPS technology for clear and interactive presentations. The podium also boasts a 24" front screen equipped with a signage media player and content management software, making it easy to display and manage content. Additionally, the DL22A-M offers a range of connectivity options, including USB, HDMI, and Ethernet ports, as well as an XLR connector for the microphone, ensuring seamless integration with various audio-visual systems.

  • Speaker Screen: 22" Multi-touch capacitive
  • Front Screen: 24" with built-in signage media player
  • Built-in PC for Speaker Screen: Intel 4.10 GHz CPU, 4GB Ram, 120 GB SSD, Windows 10 Pro
  • Microphone: 1 pcs 18" Gooseneck Condenser Microphone
  • Microphone Specs:
    • Output Connector: 3-way XLR (Male)
    • Polar Pattern: Cardioid
    • Frequency Response: 70-16000 Hz
    • Sensitivity (at 1,000Hz): -33 dBV/Pa[1] (22 mV)
    • Impedance: 180 Ω
    • Power ON indicator: LED
    • Power requirement: Phantom Power (48V)
  • Lifting Column:
    • Movement: Vertical (Up/Down)
    • Control: By Buttons (Up/Down)
    • Speed: Max speed: 38 mm/s
    • Lifting strength: 700N
    • Locking System: Automatic Looking when engine not working
    • Engine Type: Electrical
  • Timer & Chronometer:
    • Screen size: 3.5"
    • Features: Clock, Timer, Stopwatch, Single touch
  • Inputs (on Speaker Panel): 230V Plug (Max 5A), USB 2.0 and USB 3.0 (for internal PC)
  • Outputs (Bottom of Podium): HDMI, Ethernet, XLR for microphone, USB 2.0 (for internal PC)
  • Power:
    • Power Input: 230V 50Hz
    • Power Consumption: 400W (max), 450W (max)
  • Physical Specs:
    • Color: Black speaker panel and base, gray body
    • Outline Dimension (mm): Set: 550 x 800 x 1091, Package: 670 x 920 x 1300
    • Weight (kg): Set: 68 kg, Package: 107 kg
  • Optional Features: Front screen PC, Flight case
  • Certifications: EMC Certificate, LVD Certificate
