Product Highlights

  • The FSII-TCVR-19 is a versatile active antenna/transceiver compatible with FSII base, FreeSpeak Edge base, Arcadia Central Station, E-IPA-HX card, and FSII splitter hardware.
  • It supports up to 5 FSII-BP19 beltpacks per transceiver and can be integrated into systems with 65-90 beltpacks when mixed with FSII-24-TCVRs.
  • Features a green LED status indicator and can be mounted on a mic stand or wall, with both metric and imperial thread options.
  • Boasts an IP53 rating, ensuring resistance to wet and dusty conditions, making it suitable for a variety of event environments.
View full details

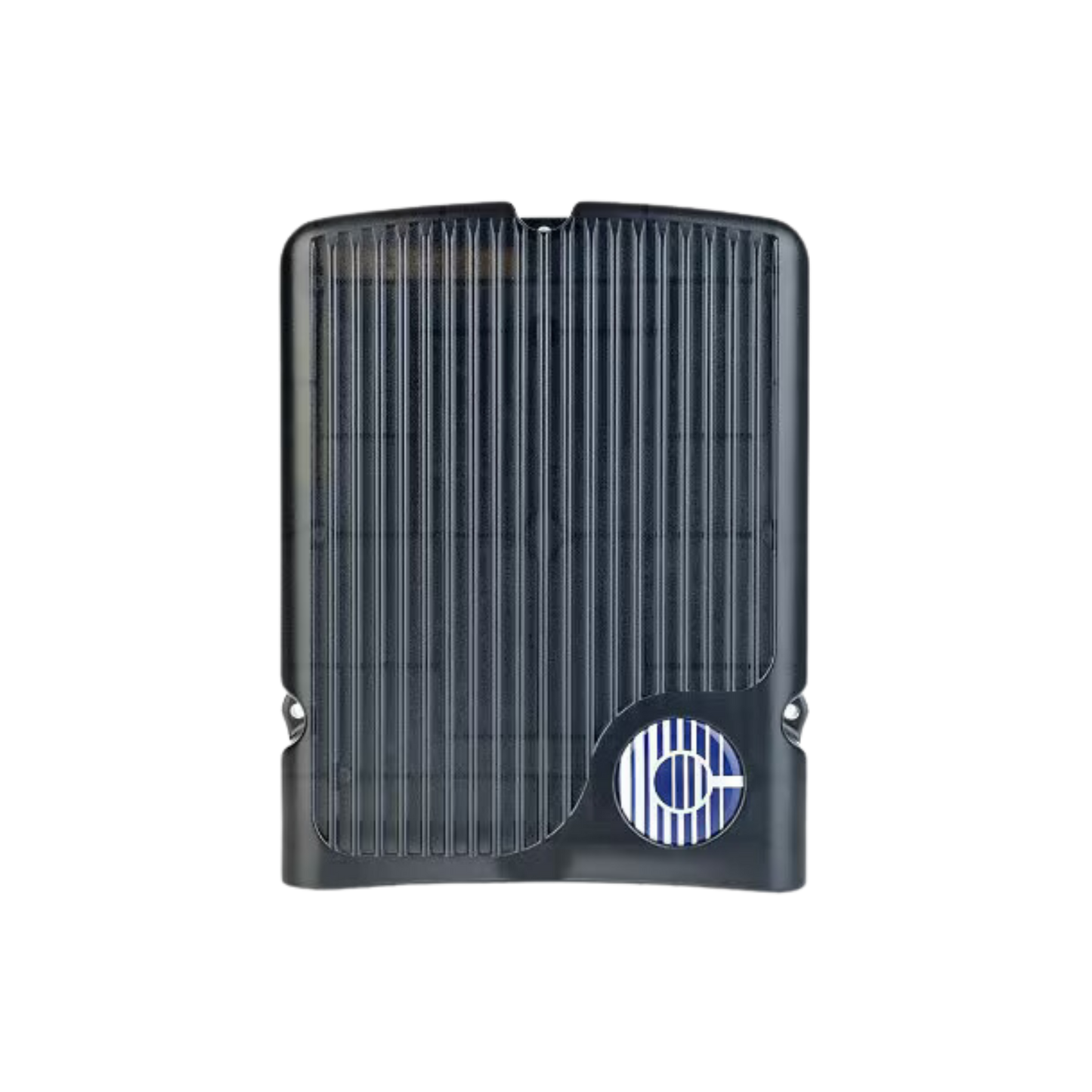

The FSII-TCVR-19 is a high-performance active antenna/transceiver designed for seamless integration with a range of Clear-Com hardware including FSII base, FreeSpeak Edge base, and more. Its capability to support up to 5 FSII-BP19 beltpacks per unit, and compatibility with larger systems of up to 90 beltpacks, makes it an ideal choice for event organizers requiring reliable, scalable communication solutions. The unit's robust design includes an IP53 rating, ensuring it withstands challenging environmental conditions, while its versatile mounting options with both metric and imperial threads cater to diverse setup requirements.

  • Compatibility: Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station, E-IPA-HX card, and FSII splitter hardware. Uses existing FSII base, E-QUE-HX cards, and FSII splitter hardware.
  • Capacity: Supports 5 FSII-BP19 beltpacks per FSII-TCVR-19 transceiver. Supports systems with up to 65-90 beltpacks when mixed with FSII-24-TCVRs.
  • Design: Green LED status indicator. Mic stand or wall mount orientation (metric and imperial threads). IP53 rating for water and dust resistance.
  • Frequency Spectrum: USA, Canada, Mexico: 1920-1930MHz (10 Channels). EU, Russia, Ukraine, Singapore, Hong Kong, Australia, New Zealand, South Africa: 1880-1900MHz (10 Channels). Japan: 1893-1906MHz (2 Channels), 250mW. Argentina, Brazil: 1910-1930MHz (10 Channels), 250mW. Chile: 70mW. Taiwan: 1880-1895MHz (8 Channels).
  • Modulation: GFSK, TDMA frame 10ms Full and Long slot.
  • Output Power: EU/Russia: 10dBm average. USA: 18-20dBm.
  • Environmental Conditions: Operating Temperature: 32°F-125°F (0°C-50°C). Storage Temperature: 32°F-150°F (0°C-70°C). Humidity: 20% to 90%, Non-Condensing.
  • Physical Dimensions: Size: 6.75 x 5.5 x 2 inches (HxWxD). Weight: 15.9oz (0.45kg).
