Product Highlights

  • Versatile Compatibility: Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station, and E-IPA-HX cards.
  • Multiple Connection Options: Provides 5 FSII transceiver feeds on one port and includes an SFP fiber slot for fiber link or bridge connections.
  • Durable and Convenient Design: Features IP-63 water resistance for outdoor use and LED status indicators, with options for mic stand or wall mount.
  • Enhanced Connectivity: Supports both multi-mode and single-mode fiber, ensuring flexible and reliable network configurations.
View full details

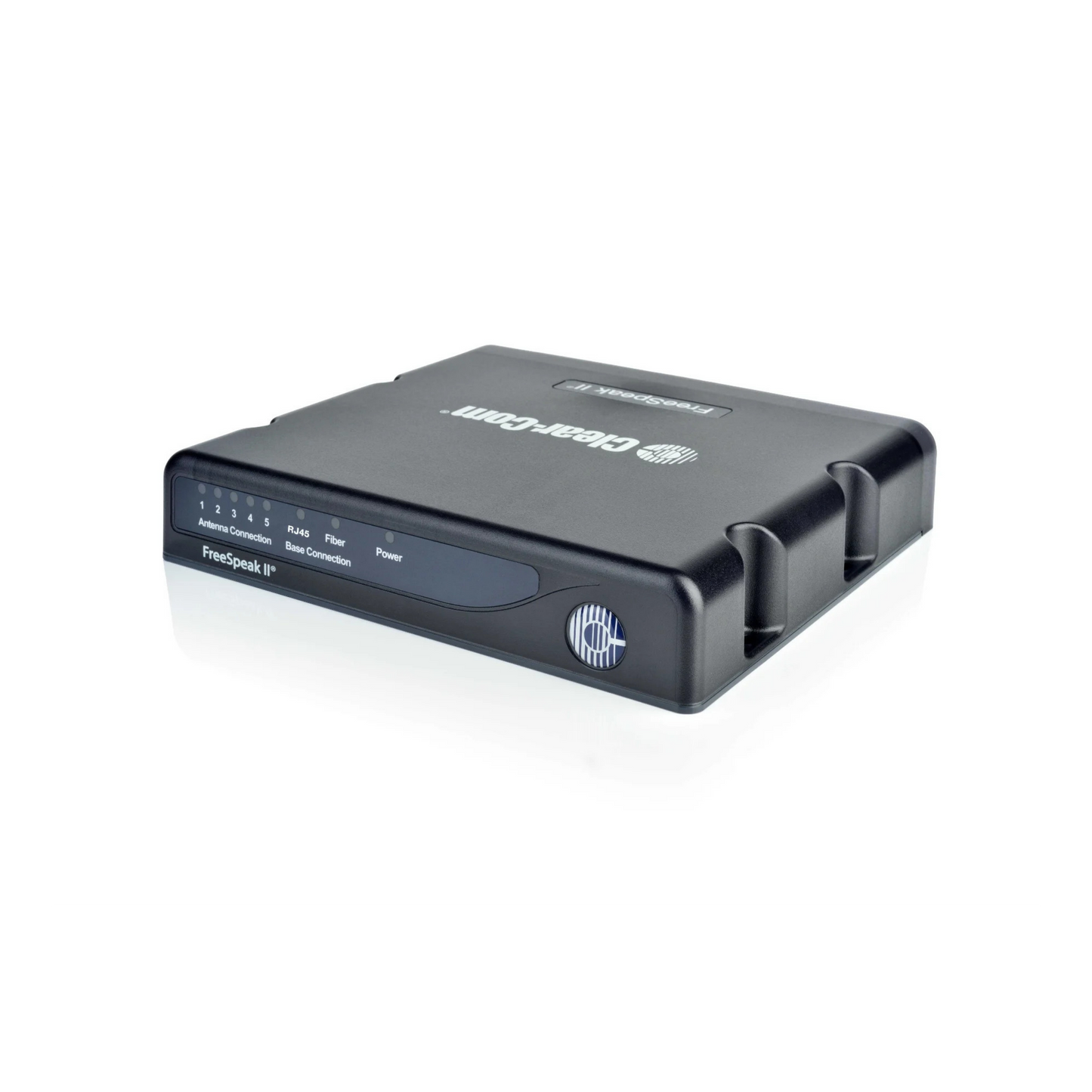

The FSII-SPL is a highly adaptable splitter designed to integrate seamlessly with FSII base, FreeSpeak Edge base, Arcadia Central Station, and E-IPA-HX cards, making it a versatile choice for various event setups.

It not only provides five FSII transceiver feeds on a single port but also includes an SFP fiber slot, supporting both multi-mode and single-mode fibers, which enhances its connectivity options for different network environments.

The unit is built to withstand outdoor conditions with its IP-63 water resistance and is equipped with LED status indicators for easy monitoring, along with flexible mounting options including mic stand and wall mount, suitable for any event location.

  • Connections:
    • Transceiver Antenna: 5 Ethercon RJ45, each with yellow LED indicators on front and back.
    • Matrix: 1 Ethercon RJ45, with yellow LED indicator on front and back.
    • Fiber: 1 SFP port.
  • Power:
    • Splitter: Requires external power supply (included).
    • Transceiver Module: Provides power to modules via RJ45 connections.
  • Mounting Options:
    • Wall Mount with 4 mounting points.
    • Mic Stand Mount (metric and imperial threads).
  • Environmental:
    • IP63 water resistance for outdoor use.
    • Operating Temperature: +32° to +122°F (0° to +50°C).
  • Dimensions: 1.65 x 8.75 x 7.73 inches (HxWxD), 42 x 223 x 197 mm.
  • Weight: 24.5 oz (0.69 kg).
