• Cinegears Ghost-Eye 300M Wirless HDMI and SDI
1 1
Cinegears

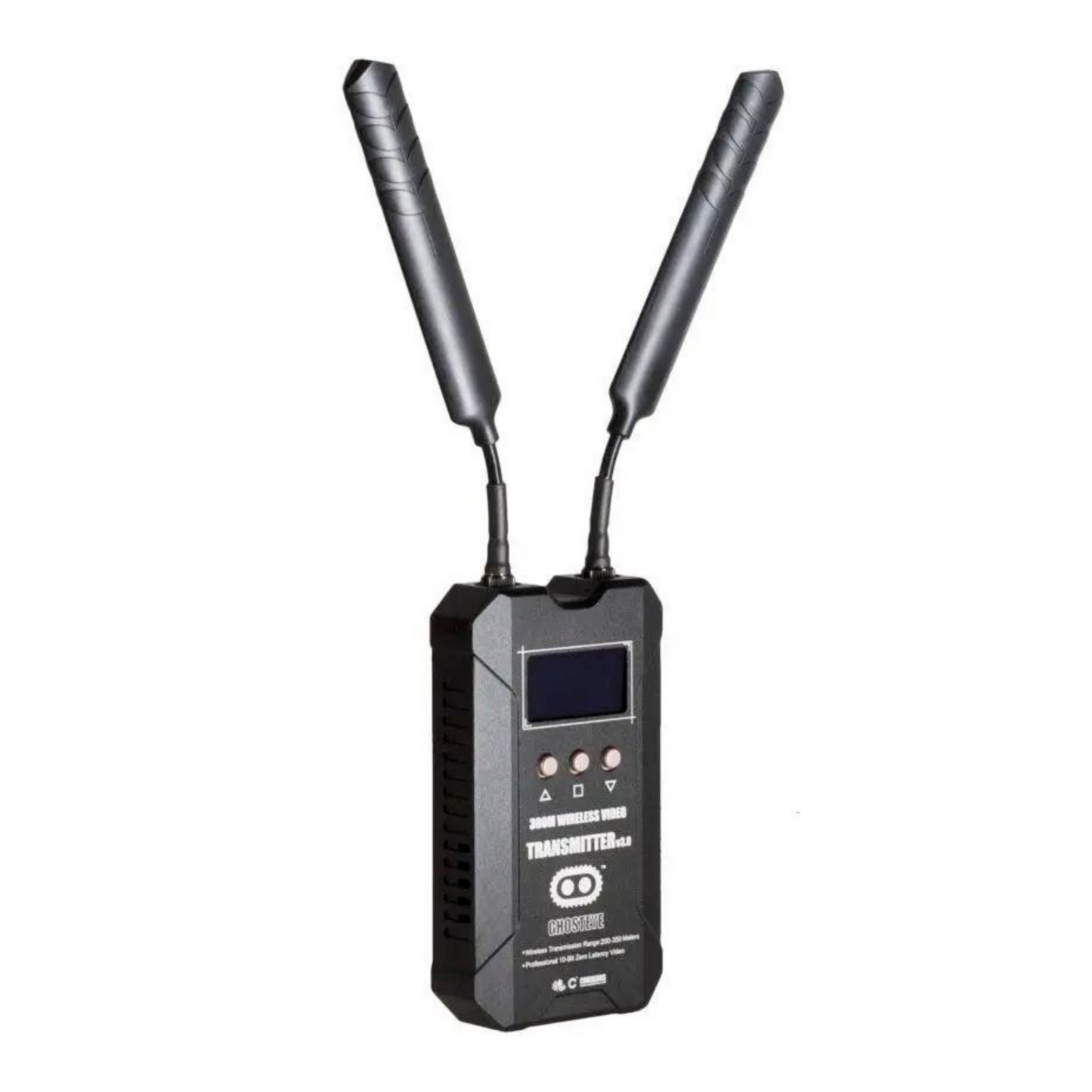

Cinegears Ghost-Eye 300M Wirless HDMI and SDI

Cinegears Ghost-Eye 300M Wirless HDMI and SDI

SKU CGE300V2

Rate Calculator

Product Highlights

  • Uncompressed HD Video Transmission: Delivers high-quality, wireless Full HD video transmission, supporting both SDI and HDMI up to 1080p 60fps.
  • Long-Range Capability: Capable of broadcasting video and audio up to 350 meters/1150 ft over 5GHz frequencies, suitable for large venues.
  • Multi-Receiver Support: Enables transmission to an unlimited number of receivers, enhancing flexibility for various event setups.
  • Robust Build and Secure Transmission: Features AES-128 encryption and a sturdy industrial metal case, ensuring secure and reliable performance.
View full details

The Cinegears Ghost-Eye Wireless HD SDI Video Transmission Kit 300M is an advanced solution for transmitting uncompressed HD video and audio over considerable distances. It supports both SDI and HDMI inputs up to 1080p 60fps, ensuring compatibility with a wide range of devices while maintaining exceptional image quality. Ideal for large-scale events, its ability to broadcast over distances up to 350 meters/1150 ft and to multiple receivers simultaneously makes it a versatile choice for event organizers. The kit's robust design, featuring AES-128 encryption and a durable metal case, ensures both security and reliability in various event environments.

  • Video and Audio Transmission
    • Wireless Full HD video transmission
    • Supports SDI and HDMI up to 1080p 60fps 10-bit 4:2:2, 4:4:4
    • Broadcast range up to 350 meters/1150 ft (line of sight) over 5GHz frequencies
    • Transmit to unlimited receivers on separate channels
    • Supports professional audio formats including Dolby True HD, DTS-master
  • Compatibility and Quality
    • Cross compatibility with Cinegears Ghost-eye 100M, 300M, and 400M models
    • Highest resolution 10bits color depth 4:2:2, 1080p 60FPS HDMI and SD/HD/3G SDI input and output
    • HDMI to SDI cross conversion supported
  • Security and Reliability
    • AES-128 encryption with air interface HD video data stream
    • Input and output ports with ±8 kV ESD protection level (HBM, contact discharge)
    • Industrial metal case construction
    • RX (Receiver) built-in directional antenna
    • Signal indicators for wireless power status, Video status, and receiver RSSI
    • Water and mist proof, shockproof production case with foam insert
  • Power and Installation
    • Improved power efficiency, saves 30% on energy consumption
    • Wide range power voltage input, adaptable to most camera batteries
    • Optional Standard V-mount, Variety mount, or ¼ bolt Mount battery plate
    • Sony F970 battery buckle for easy field battery install and replacement
    • Professional standard 2-pin LEMO power plugs
  • Certifications
    • CE, FCC, RoHS certified
