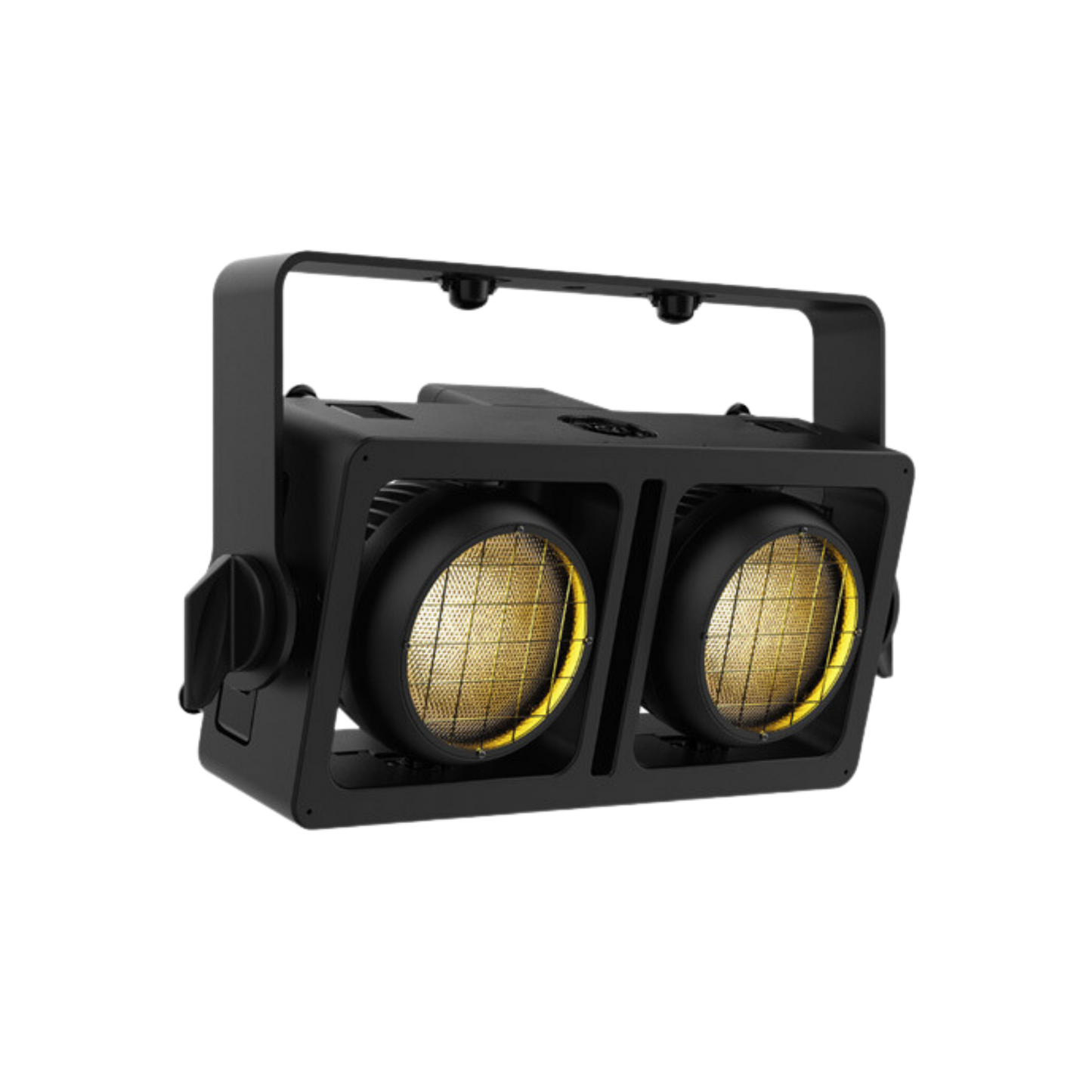

Chauvet Professional STRIKE Array 2

Chauvet Professional STRIKE Array 2

SKU CS2AB

Rate Calculator

Product Highlights

  • Outdoor-Ready Audience Blinder: The STRIKE Array 2 is designed for outdoor use, featuring IP65 rating for all-weather conditions.
  • Warm White LEDs with Emulated 'Amber Shift': Equipped with two warm white LEDs that emulate the classic tungsten look as they dim, enhancing the visual experience.
  • Directional Adjustment and Interlocking System: Each pod can be individually panned for precise light direction, and the unit can be interconnected with other Array units without tools.
  • Versatile Mounting and Control Options: Offers multiple mounting locations and adjustable Pulse Width Modulation (PWM), along with DMX and RDM control protocols.
View full details

The STRIKE Array 2 is an innovative outdoor-ready audience blinder, powered by two intense warm white LEDs housed in independently focusable pods. Its unique 'amber shift' feature warms the color temperature, mimicking incandescent fixtures and providing a classic, warm visual effect.

The blinder is designed for flexibility and ease of use, with an innovative interlocking system that allows for scalable design configurations and tool-free connection with other Array units.

Additionally, the STRIKE Array 2 offers multiple mounting options and advanced control features like adjustable PWM and RDM, making it an ideal choice for dynamic lighting in broadcast applications and various events.

  • Optical: Light Source: 96 LED (WW) 1.33 W, 2700 K, 50,000 hours life expectancy; 10 LED (Amber) 2.63 W, Color Temperature (at full): 2792 K, CRI: 92.9, TLCI: 91, Beam Angle: 60.3°, Field Angle: 99°, Illuminance (total): 360 lux @ 5 m, Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz
  • Dynamic Effects: Dimmer: Electronic, Strobe Rate: 0 to 25 Hz, Dim Modes: 4, Built-in Automated Programs: Yes
  • Construction / Physical: Dimensions: 18.5 x 10.4 x 6.3 in, Weight: 17.6 lb, Exterior Color: Black, Housing Material: Aluminum die-cast
  • Connections: Power Connection: Edison (Local) plug to Seetronic Powerkon IP65, Data Connectors: 5-pin IP65 XLR, Cable Length (power): 5 ft
  • Control: Control Protocol: DMX, RDM, DMX Channels: 1, 2, 3, 4, 5, or 8
  • Electrical: Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging), Power Linking: 11 units @ 100 V; 13 units @ 120 V; 22 units @ 208 V; 24 units @ 230 V; 25 units @ 240 V, Power and Current: 124 W, 1.24 A @ 100 V, 60 Hz; 123 W, 1.04 A @ 120 V, 60 Hz; 127 W, 0.61 A @ 208 V, 60 Hz; 129 W, 0.56 A @ 230 V, 50 Hz; 130 W, 0.54 A @ 240 V, 50 Hz, Power and Current (resting): 3 W, .021 A @ 100 V, 60 Hz; 4 W, .029 A @ 120 V, 60 Hz; 7 W, .040 A @ 208 V, 60 Hz; 9 W, .040 A @ 230 V, 50 Hz; 10 W, .044 A @ 240 V, 50 Hz
  • Certifications / Qualifications: CE, MET, IP Rating: IP65, temporary outdoor/wet use, Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
  • Included Accessories: Strike Array 2, Seetronic Powerkon IP65, Omega bracket with mounting hardware, Warranty Card, Quick Reference Guide or User Manual
  • Optional Accessories: Professional Clamps: CTC-50HC, CTC-50HCN, Seetronic Powerkon power linking cables, 5-pin IP or Non-IP DMX Cables, STRIKE Array Flush Bracket
