Product Highlights

  • Versatile Lighting Effects: Features both epic beam and wash effects, ideal for creating a range of visual displays.
  • Advanced Movement: Continuous 360° pan and tilt movement, allowing for dynamic and engaging lighting choreography.
  • High-Intensity Center Pixel: Equipped with a punchy 60 W RGBW LED center pixel, providing intense and focused beam effects.
  • Flexible Control Options: Supports multiple control protocols including DMX, sACN, Art-Net, and W-DMX, offering versatility in setup and operation.
View full details

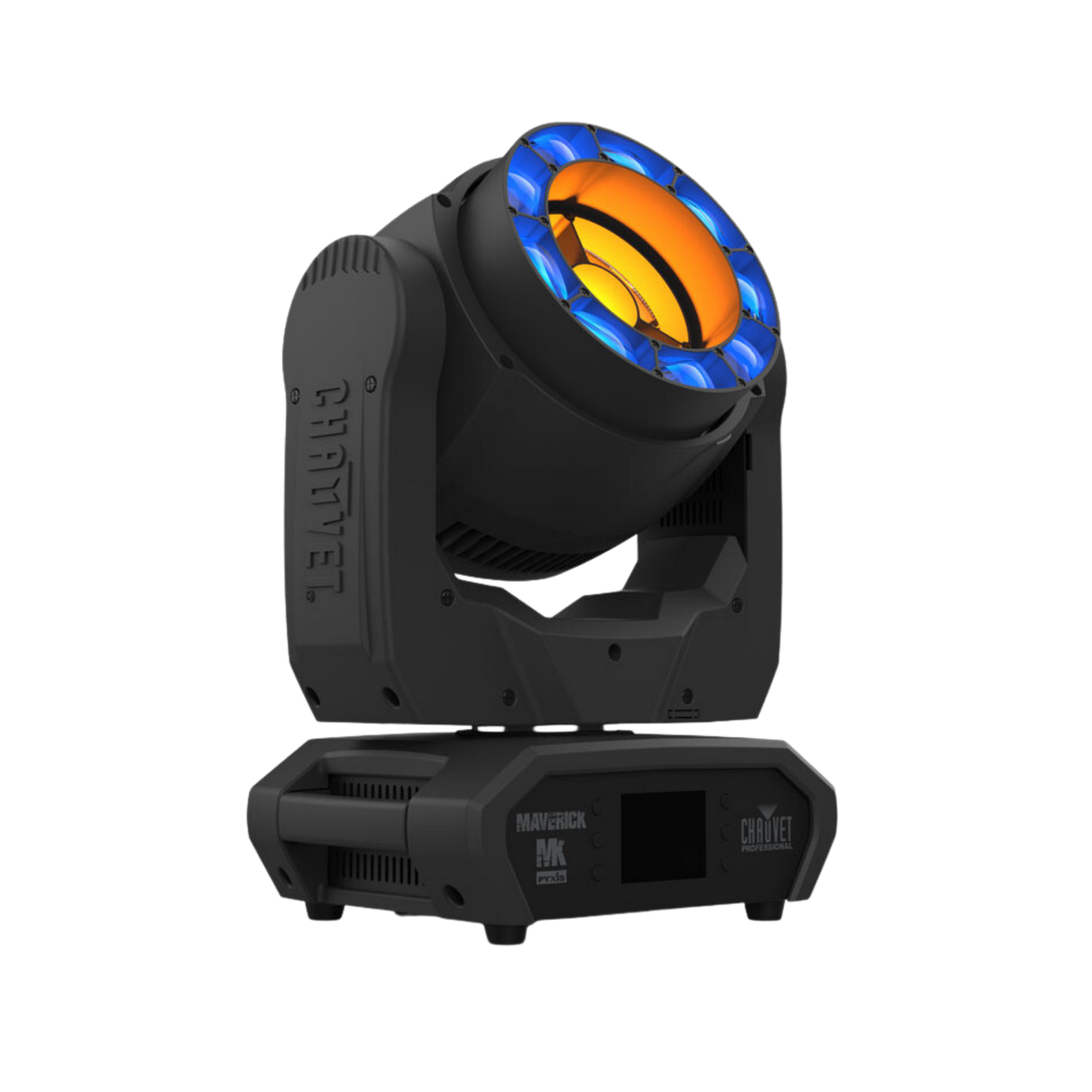

The Maverick MK Pyxis is a revolutionary compact moving head that offers an endless array of eye-catching effects, perfect for event organizers and planners. Its nine 15 W RGBW LEDs and a 60 W RGBW LED center pixel deliver both wide wash and focused beam effects, enhancing the visual experience of any event. The fixture's wide zoom range, from 4.9° to 58.4°, along with its built-in color macros and gobos, provide a versatile toolkit for creative lighting design. Additionally, its quiet operation makes it suitable for a variety of installation environments, from concerts to corporate events.

Optical

  • Light Source (Outer Ring): 9 LEDs (quad-color RGBW) 15 W, 50,000 hours life expectancy
  • Light Source (Center Pixel): 1 LED (quad-color RGBW) 60 W, 50,000 hours life expectancy
  • Color Temperature (range): 2,800 to 10,000 K
  • Beam Angle: 2.8° (center pixel and outer ring), 2.7° (center pixel), 4.9° to 32° (outer ring)
  • Field Angle: 6.7° (center pixel and outer ring), 4.5° (center pixel), 7.9° to 47.8° (outer ring)
  • Cutoff Angle: 8.3° to 58.4°
  • Zoom Range: 4.9° to 58.4°
  • Lumens: 1,700 (center pixel source), 4,300 (outer ring source); 1,100 (center pixel output), 2,400 (outer ring output)
  • Illuminance: 11,267 lux @ 5 m (center pixel / outer ring), 19,306 lux @ 5 m (center pixel), 4,724 lux @ 5 m (outer ring, 7.9°), 437 lux @ 5 m (outer ring, 47.8°)
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

  • Pan and Tilt: 540°/270°, with infinite range options
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Color Temperature Presets: Yes
  • Move-in-Black: Yes
  • Dim Modes: 2
  • Dim Curves: 4

Construction / Physical

  • Dimensions: 12.20 x 8.85 x 18 in (310 x 225 x 459 mm)
  • Weight: 31.96 lb (14.5 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

Connections

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input/Output: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: Art-Net, sACN, Kling-Net, DMX, W-DMX, RDM
  • DMX Channels Single Mode: 26, 66, 113, 131
  • DMX Channels Dual Mode – Function: 13, 26, 33
  • DMX Channels Dual Mode – Pixel: 30, 40, 80
  • Art-Net Channels Single Mode: 26, 66, 113, 131
  • Art-Net Channels Dual Mode – Function: 13, 26, 33
  • Art-Net Channels Dual Mode – Pixel: 30, 40, 80

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
  • Power and Current: 325 W, 2.726 A @ 120 V, 60 Hz; 322 W, 1.546 A @ 208 V, 60 Hz; 321 W, 1.395 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE
  • IP Rating: IP20, dry location

What's Included

  • Maverick PYXIS
  • Seetronic Powerkon IP65 power cord
  • Omega bracket with mounting hardware

Optional Accessories

  • Professional Clamp: CTC-50HC, CTC-50HCN
  • Safety Cable: SC-07
  • DMX Cables
  • IP Rated Seetronic® Powerkon Extensions
  • Ethercon extension cables
  • UPLOAD 08 software uploader
