Chauvet Professional COLORado PXL Curve 12

Chauvet Professional COLORado PXL Curve 12

SKU CCPXLC12

Rate Calculator

Product Highlights

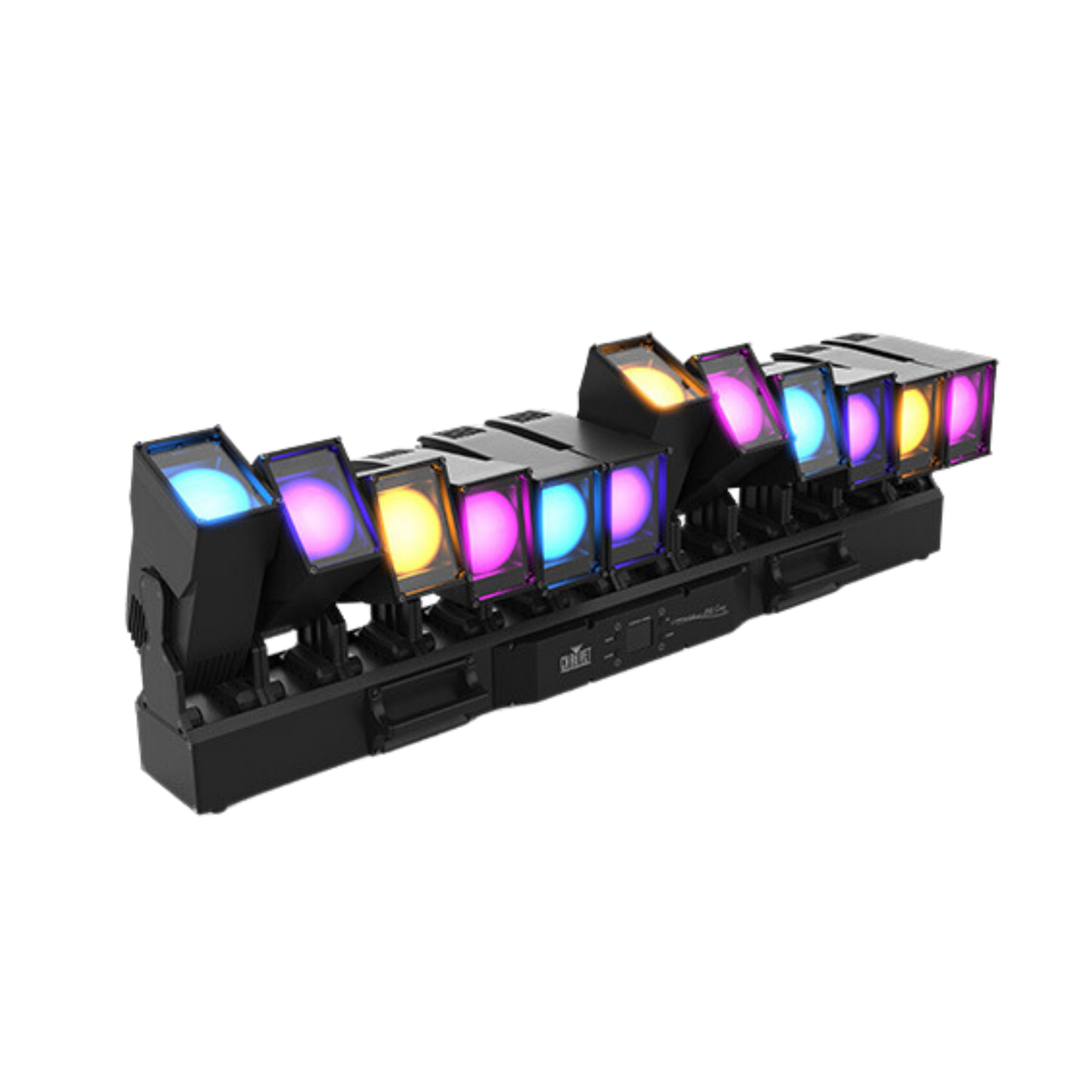

  • Versatile Lighting Solution: The COLORado PXL Curve 12 is a fully pixel-mappable, motorized IP65-rated RGBW LED batten, ideal for dynamic lighting needs.
  • Individual Control: Features 12 independently controllable tilting heads with a zoom range of 5.7° to 36.3°, enhancing creative flexibility.
  • Built-in Effects: Includes a variety of pre-built effects like virtual gobos, movement macros, and color control for easy pixel animation effects.
  • Extensive Connectivity: Supports DMX, sACN, Art-Net, Kling-Net, and RDM, ensuring compatibility with various control setups.
View full details

The COLORado PXL Curve 12 is a cutting-edge lighting fixture designed for intricate and volumetric lighting effects. Its 12 individually controllable heads, each with adjustable zoom and tilt, allow for precise and creative lighting designs. The fixture's extensive library of built-in effects, including virtual gobos and movement macros, simplifies the creation of complex lighting scenes. Additionally, its compatibility with multiple control protocols like DMX, sACN, Art-Net, and Kling-Net, along with RDM support, makes it a versatile choice for event organizers and planners.

  • Optical Characteristics:
    • Light Source: 12 LEDs (RGBW) 45 W, 50,000 hours life expectancy
    • Color Temperature Range: 2700 to 8000 K
    • Beam Angles: Spot 5.7°, Flood 26.8°, 50% Zoom 13.8°
    • Field Angles: Spot 9°, Flood 33.9°, 50% Zoom 19.2°
    • Cutoff Angles: Spot 9.9°, Flood 36.3°, 50% Zoom 21.6°
    • Zoom Range: 5.7° to 36.3°
    • Lumens: 5,807 lm
    • Illuminance: Spot 38,727 lux @ 5 m, Flood 1,120 lux @ 5 m
    • Selectable PWM: 600, 1200, 2000, 4000, 6000, 15000 Hz
  • Dynamic Effects:
    • Tilt: 200°
    • Tilt Range: 60°, 180°, 200°
    • Dimmer: Electronic
    • Shutter/Strobe: Electronic
    • Strobe Rate: 0 to 20Hz
    • Standalone Color Mixing: No
    • Color Temperature Presets: Yes
    • Dim Modes: 5
    • Built-in Automated Programs: Yes
    • Customizable Programs: Yes
    • Recall Custom Programs: Yes
