• Chauvet Professional Color Strike M
1 1
Chauvet

Chauvet Professional Color Strike M

Chauvet Professional Color Strike M

SKU CCSMS

Rate Calculator

Product Highlights

  • Versatile Functionality: The Color STRIKE M is a high-power, motorized strobe/wash light, ideal for dynamic lighting needs.
  • Advanced Color and Pixel Control: Features 14 controllable sections of RGB LEDs and 28 sections for white strobe LEDs, enabling intricate color mixing and pixel mapping.
  • Robust and Weather-Resistant Design: Boasts an IP65 rating, ensuring protection against environmental factors and suitability for all-weather use.
  • Flexible Mounting and Control Options: Offers multiple mounting locations, repositionable yoke, and compatibility with DMX, ArtNet, and sACN control protocols.
View full details

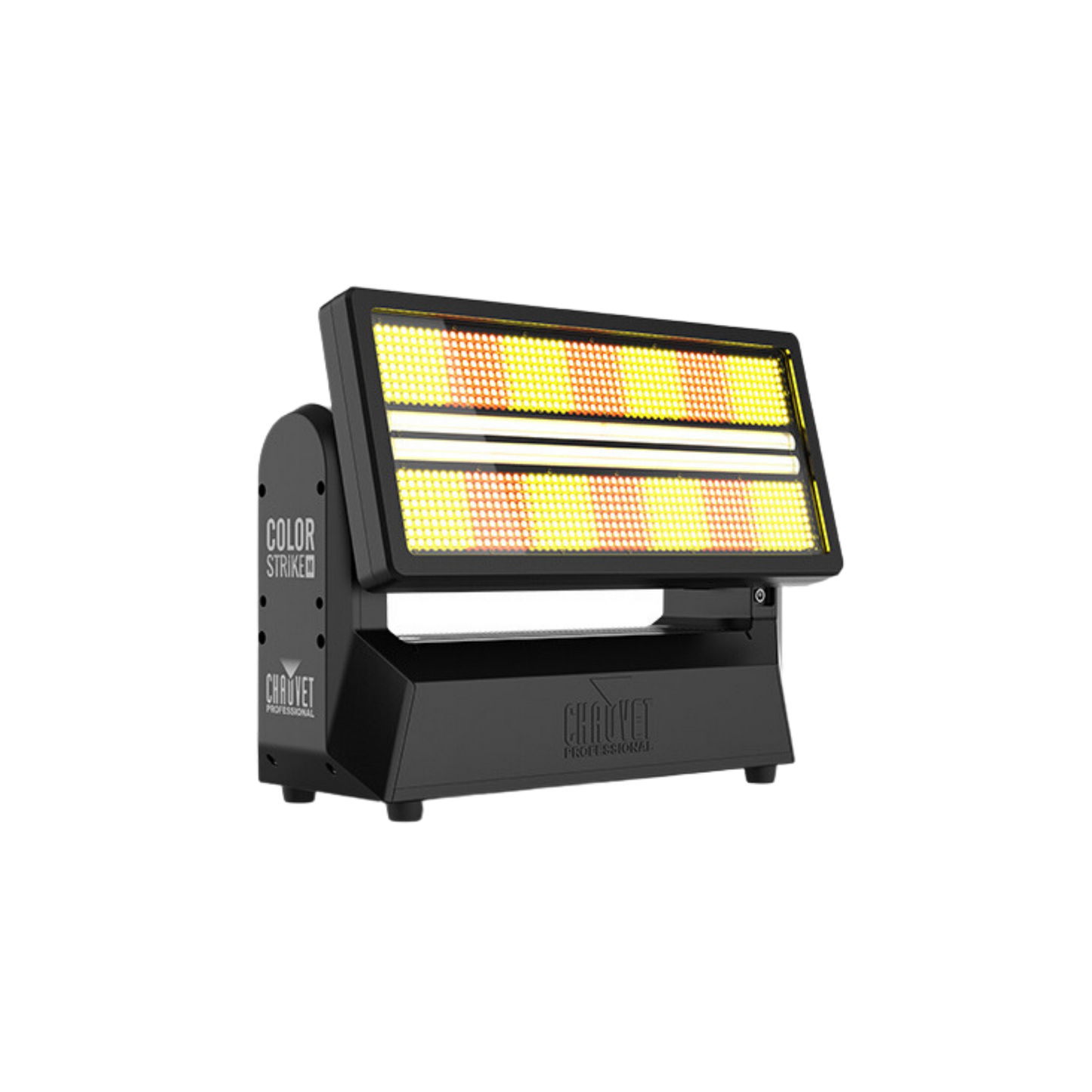

The Color STRIKE M is an IP65 rated motorized strobe/wash light, equipped with two ultra-bright, white light tube elements and a color-mixing, pixel-mappable face. This fixture is not only versatile in function, doubling as a strobe and wash light, but also offers a 180° tilt range, ensuring bright, saturated color projection in desired directions. Its rugged design, combined with multiple programming personalities and built-in effect macros, makes it an ideal choice for event organizers requiring reliable, high-quality lighting for various events.

  • Optical Characteristics:
    • Light Source: 896 tri-color SMD 5050 LEDs, 432 CW LEDs
    • Color Temperature (Full): 7757 K
    • CRI: 90.3
    • Beam Angles: 98° x 57° (Combine), 123° (Plate), 95° x 50° (Beam)
    • Field Angles: 146° x 122° (Combine), 160° (Plate), 138° x 100° (Beam)
    • Lumens: 71,620 (Combined), 18,600 (Plate), 54,381 (Beam)
    • Illuminance: 1591 lux @ 5 m (Combined), 231 lux @ 5 m (Plate), 1432 lux @ 5 m (Beam)
    • Selectable PWM: 600 Hz to 25,000 Hz
  • Dynamic Effects:
    • Tilt: 180°
    • Dimmer: Electronic
    • Shutter/Strobe: Electronic, 0 to 30 Hz rate
    • Standalone Color Mixing
    • Dim Modes: 4
    • Built-in Automated Programs
  • Physical Attributes:
    • Dimensions: 16.02 x 6.90 x 12.30 in
    • Weight: 26.6 lb
    • Exterior Color: Black
    • Housing Material: Magnesium alloy
  • Connections:
    • Power Connection: Edison to Seetronic Powerkon IP65
    • Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
    • Cable Length (power): 5 ft
  • Control:
    • Protocols: Art-Net, DMX, RDM, sACN
    • DMX Channels: 8, 11, 13, 24, 30, 47, 74, 97
    • Art-Net Channels: Same as DMX
    • Modes/Personalities: 8 (8, 11, 13, 24, 30, 47, 74, 97)
  • Electrical Specs:
    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power and Current: 720 W, 7.14 A @ 100 V, 60 Hz; 740 W, 6.36 A @ 120 V, 60 Hz; 716 W, 2.35 A @ 208 V, 60 Hz; 696 W, 3.27 A @ 230 V, 50 Hz; 709 W, 3.02 A @ 240 V, 50 Hz
  • Certifications / Qualifications:
    • CE, MET, FCC
    • IP Rating: IP65
    • Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
  • Included Accessories:
    • Color STRIKE M unit
    • Seetronic Powerkon IP65 power cord
    • Omega bracket
  • Optional Accessories:
    • Professional Clamps: CTC-50HC, CTC-50HCN
    • Safety Cable: SC-07
    • IP Rated Seetronic Powerkon Extensions, DMX cables, EtherCon Cables
    • UPLOAD 03 software uploader
