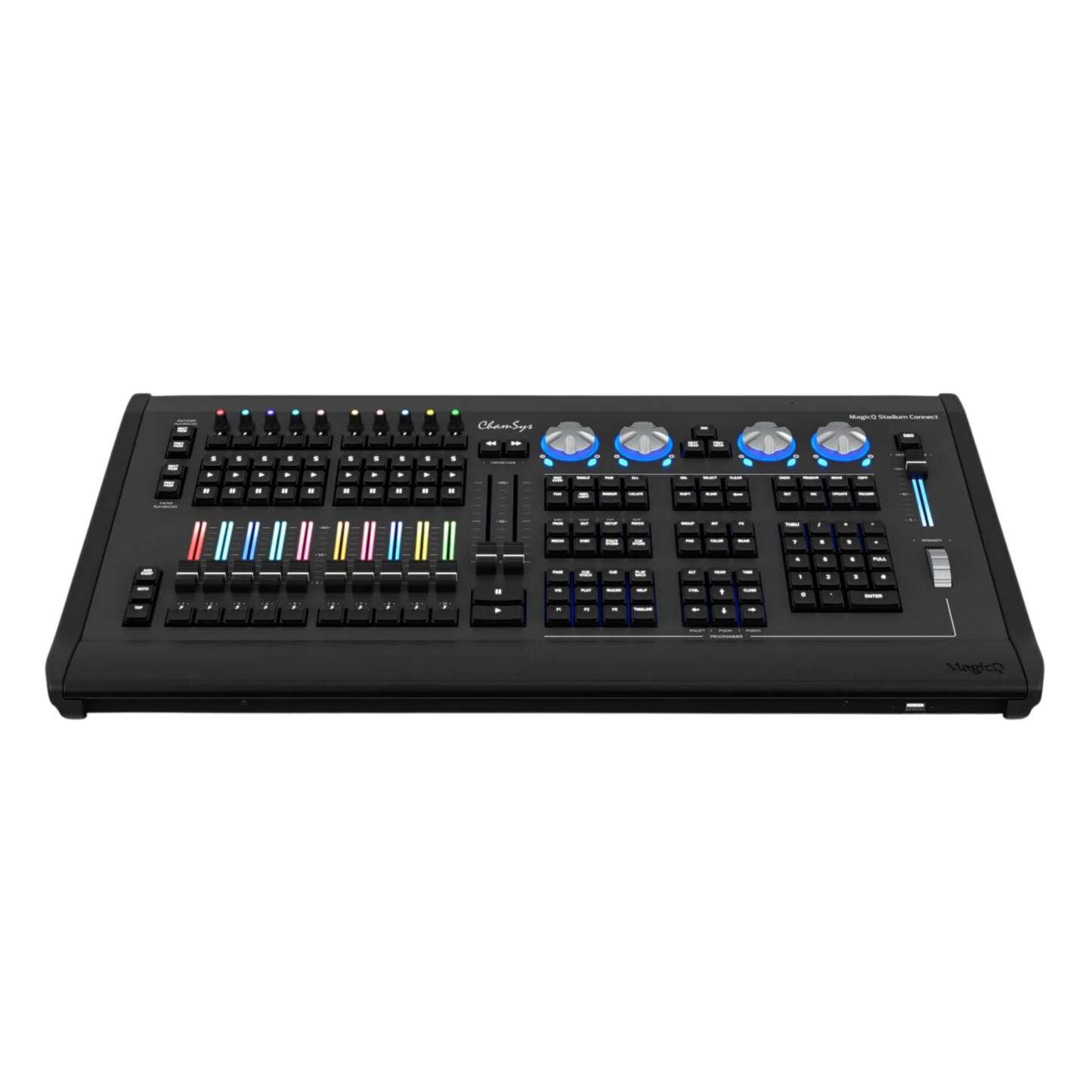

ChamSys MagicQ Stadium Connect

ChamSys MagicQ Stadium Connect


Rate Calculator

Product Highlights

  • Versatile Interface: The MagicQ Stadium Connect is a PC-based programming interface with dual crossfaders, mirroring the keyset of the MQ250M and MQ500M.
  • High Output Capability: Capable of outputting 64 universes directly and pre-visualizing up to 256 universes.
  • Advanced Control Features: Equipped with 10 motorized faders and 10 playback encoders with executors for extensive programmable control.
  • Illuminated and Customizable: Features RGB illumination of playbacks and backlit buttons for enhanced visibility and customization.
View full details

The MagicQ Stadium Connect offers a comprehensive control solution for event organizers, combining the familiarity of the MQ250M and MQ500M's programming interface with powerful output capabilities. It can directly output 64 universes and pre-visualize up to 256, making it ideal for large-scale events. The interface is equipped with 10 motorized faders and 10 playback encoders, providing ample control for complex shows. Additionally, its RGB illuminated playbacks and backlit buttons not only enhance visibility in various lighting conditions but also allow for personalized setup, catering to the specific needs of different events.

  • Output and Visualization:
    • Direct DMX Outputs: 4
    • Universes Direct from Software: 64 (via Artnet/sACN/Pathport)
    • Visualisation Universes: 256
    • Max Number of DMX Channels: 32,768
    • Max Number of Fixtures Supported: 32,768
  • Playbacks and Control:
    • Motorised Playbacks: 10
    • Encoder Playbacks: 10
    • Total Number of Playbacks: 20 (10+10)
    • Dual Cross Faders: Yes
    • Attribute Encoders: 4
    • Intensity Wheel: 1
  • Illumination and Customization:
    • Backlit Keys: Yes
    • Illuminated Playback/Encoders with RGB Control: Yes
  • Connectivity and Ports:
    • Network Ports: 1
    • USB Ports: 4
    • MIDI Ports (1 in and out): Yes
    • LTC Timecode Ports (in and out): Yes
    • 10Scene Port: 1
  • Power and Dimensions:
    • Power Input: Neutrik powerCON TRUE1 110 to 240 VAC
    • Width: 680mm (26.8")
    • Depth: 364mm (14.3")
    • Height: 85mm (3.3")
    • Weight: 8.7kg (19.1lbs)
  • Included Accessories:
    • Dual Colour Desk lights: 2
    • Dust cover: 1
    • Neutrik powerCON TRUE1 Power Cable: 1
    • USB Cable: 1
