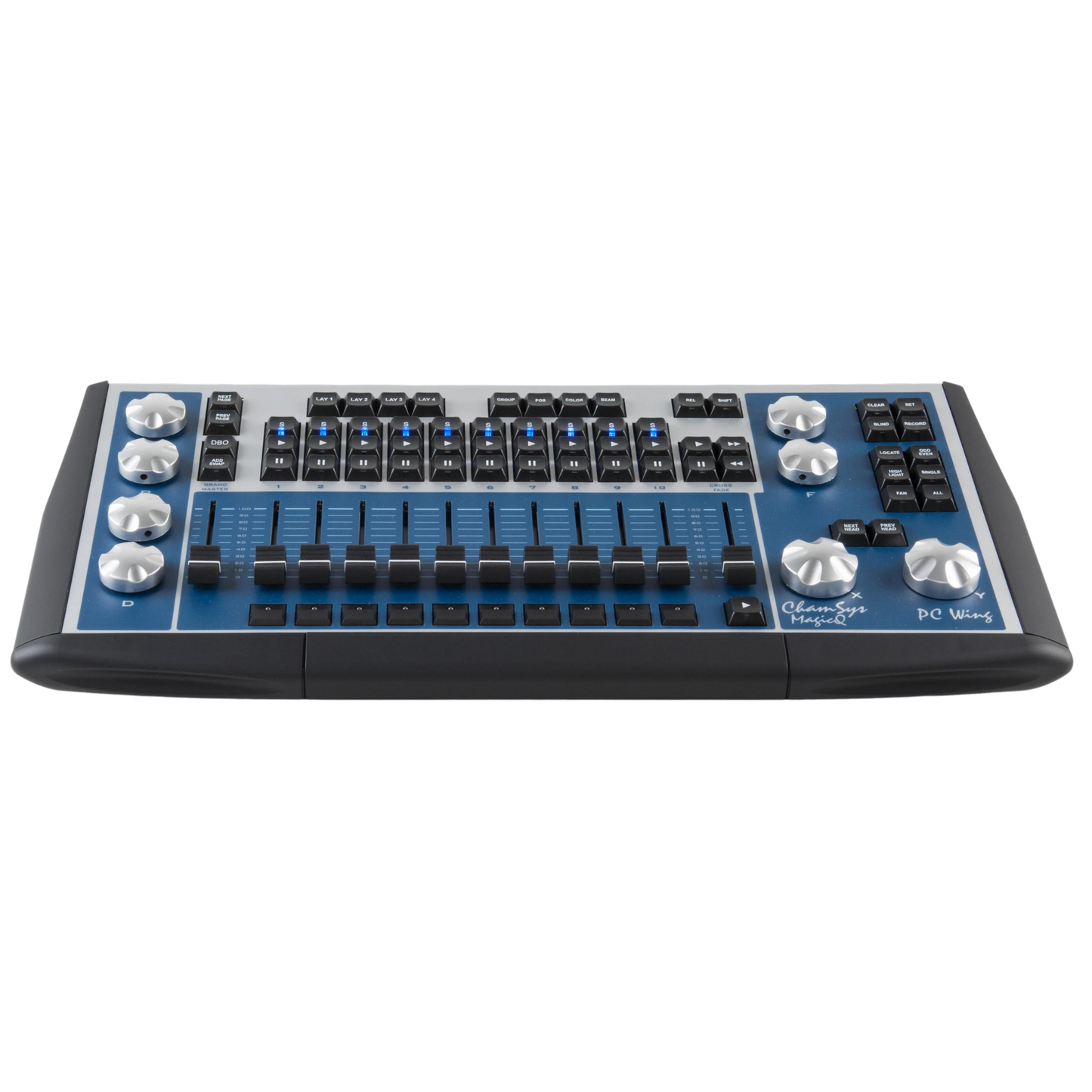

ChamSys MagicQ PC Wing Compact

ChamSys MagicQ PC Wing Compact

SKU MQPCW

Rate Calculator

Product Highlights

  • Compact and Portable: Designed to fit in hand luggage, ideal for touring and events.
  • Extensive Control: Offers 10 playbacks, 8 attribute encoders, and 2 direct DMX outputs.
  • Broad Compatibility: Connects with free MagicQ software on PC, Mac, or Linux.
  • High Capacity: Supports 64 universes via Artnet/sACN, with a maximum of 32768 DMX channels.
View full details

The MagicQ PC Wing Compact is a versatile and portable USB wing, perfect for lighting designers and event organizers. Its compact size makes it ideal for travel, fitting easily into hand luggage.

The wing provides comprehensive control with 10 playbacks and 8 attribute encoders, along with 2 direct DMX outputs, facilitating intricate lighting setups.

Compatible with MagicQ software on various operating systems, it supports up to 64 universes via Artnet/sACN, making it a powerful tool for managing complex lighting scenarios in events like concerts, weddings, and corporate gatherings.

  • Direct DMX Outputs: 2
  • Fader Playbacks: 10
  • Attribute Encoders: 8
  • USB Ports: 5 (4 output, 1 input)
  • Audio Input: 1 channel, 7 band
  • Remote Input: Yes
  • Kensington Security Lock Fixing: Yes
  • Working Light Port: Yes
  • Power Input: Neutrik powerCON TRUE1, 110 to 240 VAC
  • Universes Supported: 64
  • Max Number of DMX Channels: 32768
  • Max Number of Fixtures Supported: 32768
  • Max Number of Cues: 5000
  • Max Number of Cue Stacks: 2000
  • Max Number of Groups: 5000
  • Max Number of Palettes: 4096
  • Number of Media Server Layers Supported: 50 (each different content)
  • Included Accessories: USB A-B Cable, Dual Colour Desk lights, Dust Cover, Neutrik powerCON TRUE1 Power Cable
  • Boxed Weights and Dimensions: Width: 650mm (25.5 inches), Depth: 350mm (13.7 inches), Height: 220mm (8.6 inches), Weight: 6.2kg (17.6 lb)
  • Flight Cased Weights and Dimensions: Weight (console in flightcase): 12kg (26.6 lb)
  • Console Weights and Dimensions: Width: 515mm (20.2 inches), Depth: 257mm (10.1 inches), Height (To back): 88mm (3.4 inches), Height (To faders): 84mm (3.3 inches), Weight: 3.6kg (13.2 lb)
