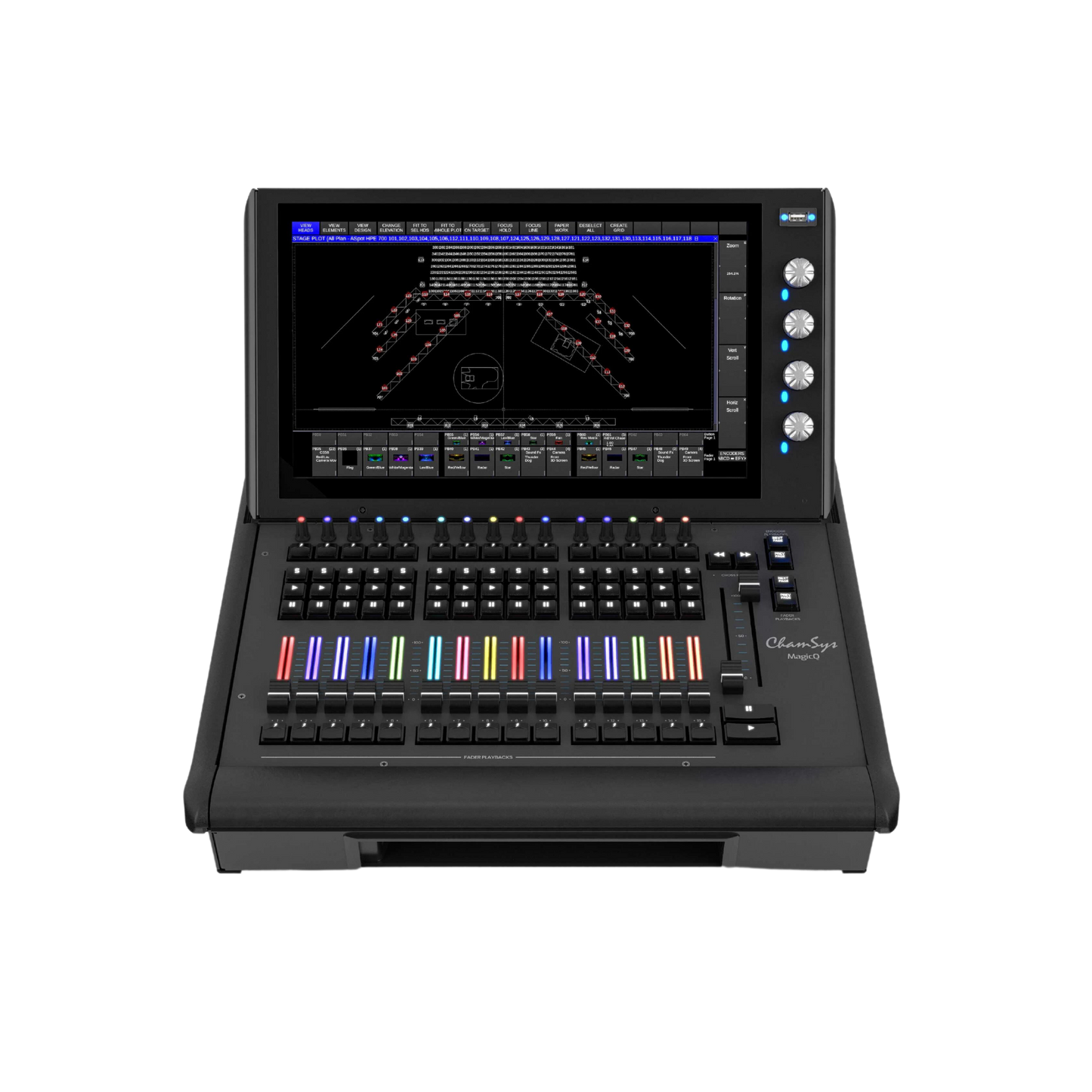

ChamSys MagicQ MQ500M Stadium Wing

ChamSys MagicQ MQ500M Stadium Wing

SKU MQ500MW

Rate Calculator

Product Highlights

  • High-Level Show Control: Specifically designed to complement the MagicQ MQ500M Stadium console.
  • Extensive Playback Options: Features 30 playbacks, including 15 motorized faders and 15 encoder playbacks, all with RGB illumination.
  • Advanced Display and Control: Equipped with a 15" HD multi-touch display and dual motorized 100mm crossfaders, ideal for theatre settings.
  • Connectivity and Power: Includes 4 DMX outputs and an in-built UPS for reliable performance.
View full details

The MagicQ MQ500M Stadium Wing is an advanced lighting control wing, tailor-made for the MagicQ MQ500M Stadium console, offering unparalleled control for event organizers and planners. Its 30 playbacks, comprising 15 motorized faders and 15 encoder playbacks with RGB illumination, provide extensive control options for a wide range of events. The wing's 15" HD multi-touch display and dual motorized 100mm crossfaders are perfect for intricate theatre productions. Additionally, the inclusion of 4 DMX outputs and an in-built UPS ensures consistent and reliable performance in various event settings.

  • Motorized Playbacks: 15
  • Encoder Playbacks: 15
  • Total Number of Playbacks: 30 (15+15)
  • Cross Faders: Dual Motorized, 100mm
  • Execute Encoders: 4
  • Backlit Keys: Yes
  • Direct DMX Outputs: 4
  • Illumination: Playback/Encoders with RGB control
  • Display: Inbuilt 15" HD Multi-Touch
  • USB Port: High Power, 1
  • UPS: Inbuilt, uses 12v Lead-Acid Battery
  • Storage Pocket: Front, 1
  • Power Input: Neutrik powerCON TRUE1, 110 to 240 VAC
  • Software Capabilities: Max DMX Channels: 131,072; Max Fixtures Supported: 131,072; Max Cues: 5000; Max Cue Stacks: 2000; Max Groups: 5000; Max Palettes: 4096; Media Server Layers Supported: 50 (each different content)
  • Included Accessories: Dual Colour Desk Light: 1; Dust Cover: 1; Neutrik powerCON TRUE1 Power Cable: 1; Neutrik USB A-B Connection Cable: 1; Standard USB A-B Connection Cable: 1; HDMI to HDMI Connection Cable: 1; HDMI to DVI Connection Cable: 1
  • Dimensions and Weight: Width: 690mm (21 inches); Depth: 590mm (23.3 inches); Height: 340mm (13.3 inches); Weight: 21kg (46.2 lb)
  • Flight Cased Dimensions and Weight: Depth: 590mm (23.2 inches); Weight (console in flight case): 36kg (79 lb)
  • Console Dimensions and Weight: Width: 471mm (18.5 inches); Depth: 587mm (23 inches); Height: 85mm high at front (3.3 inches), 188mm high at rear (screens stored) (7.4 inches); Weight: 19kg (41.9 lb)
  • Battery: 12v Sealed Lead Acid Battery
