• Blackmagic Design Micro Converter BiDirectional HDMI/SDI 12G
1 1
Blackmagic Design

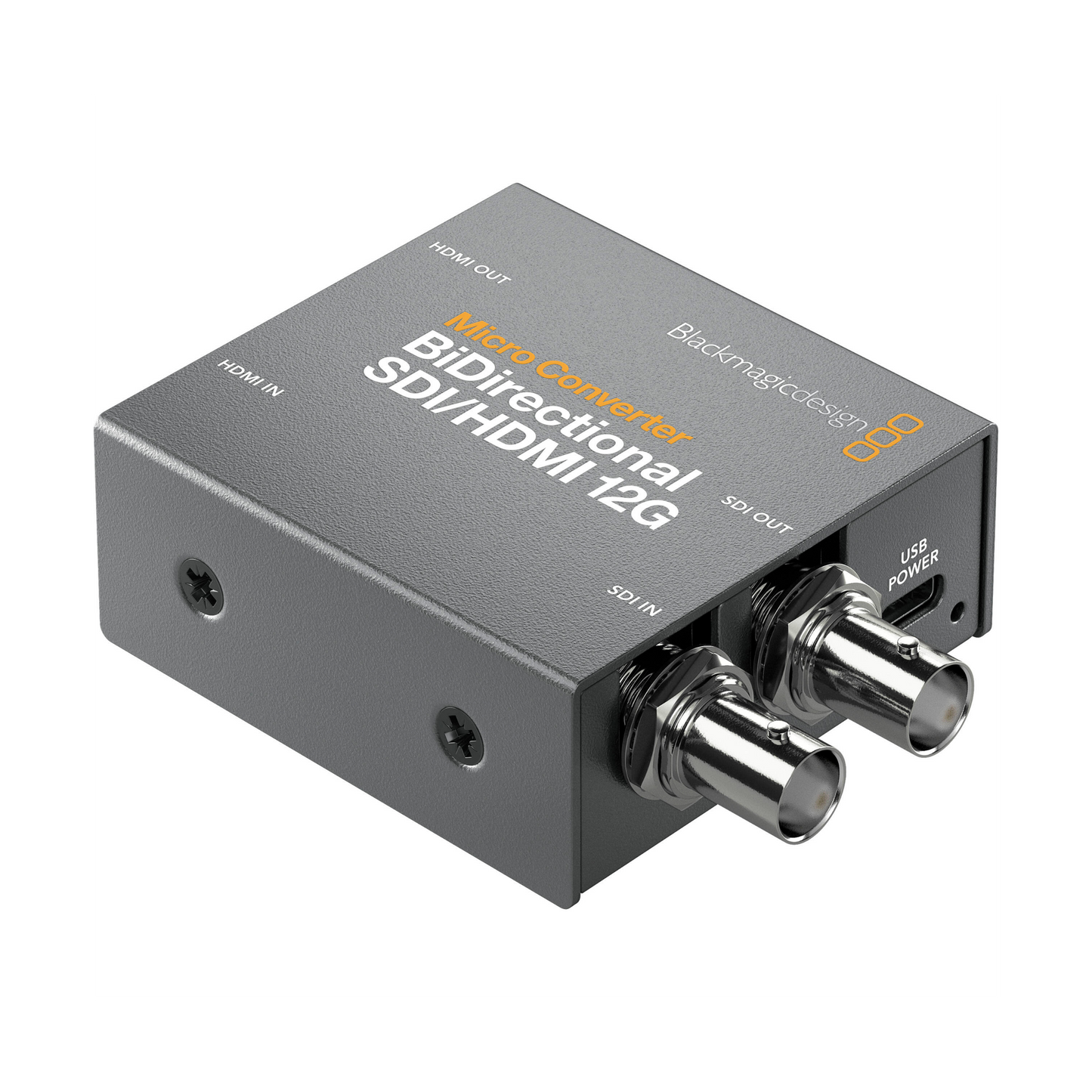

Blackmagic Design Micro Converter BiDirectional HDMI/SDI 12G

Blackmagic Design Micro Converter BiDirectional HDMI/SDI 12G

SKU BM4KC

Rate Calculator

Product Highlights

  • Versatile Conversion: Capable of bidirectional SDI to HDMI and HDMI to SDI conversion in various SD, HD, and Ultra HD formats up to 2160p60.
  • Broadcast Quality: Delivers professional-grade video quality, suitable for live production and broadcast environments.
  • Compact and Durable: Features an all-metal design, small enough to be discreetly placed in any setup.
  • USB-C Powering: Can be powered from any USB-C socket, offering flexibility in various event settings.
View full details

The Blackmagic Micro Converter BiDirectional SDI/HDMI 3G is a compact, broadcast-quality video converter, ideal for event organizers and planners. Its ability to handle bidirectional conversion between SDI and HDMI in multiple formats, including SD, HD, and Ultra HD up to 2160p60, makes it incredibly versatile for various event scenarios. The robust, all-metal design ensures durability, essential for live production and broadcast use. Additionally, its USB-C power option adds convenience, allowing it to be powered in diverse environments, from professional studios to on-the-go event locations.

  • Connections:
    • SDI Video Inputs: 1
    • SDI Video Outputs: 1 x loop out
    • HDMI 2.0 Video Outputs: 1 x type A
    • SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G
    • Multi Rate Support: Auto detection of SD, HD, 2K, Ultra HD, and 4K
    • Updates, Configurations, and Power: USB Type-C
  • Standards:
    • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
    • HD Video Standards: 720p50/59.94/60, 1080p23.98/24/25/29.97/30/47.95/48/50/59.94/60, 1080PsF25/29.97/30, 1080i50/59.94/60
    • 2K Video Standards: 2Kp23.98/24/25/29.97/30/47.95/48/50/59.94/60 DCI, 2KPsF25/29.97/30 DCI
    • Ultra HD Video Standards: 2160p23.98/24/25/29.97/30/47.95/48/50/59.94/60
    • 4K Video Standards: 4Kp23.98/24/25/29.97/30/47.95/48/50/59.94/60 DCI
    • SDI Compliance: SMPTE 259M, 292M, 296M, 424M, 425M, 2081-1, 2081-10, 2082-1, 2082-10, 2084, 2108-1
    • SDI Video Rates: Switchable between SD, HD, 2K DCI, Ultra HD, and 4K DCI
    • SDI Color Precision: 4:2:2
    • SDI Color Space: YUV
    • SDI Auto Switching: Automatically detects SD, HD, level A or B for 3G-SDI, 2K DCI, Ultra HD, and 4K DCI
    • HDMI Video Standards: 720p50/59.94/60, 1080p23.98/24/25/29.97/30/47.95/48/50/59.94/60, 1080i50/59.94/60, 2160p23.98/24/25/29.97/30/47.95/48/50/59.94/60
    • HDMI Color Precision: 4:2:2
    • HDMI Color Space: YUV
    • Settings Control: Via MacOS and Windows software utility connected by USB
  • Software:
    • Internal software upgrade via USB
  • Power Requirements:
    • Power Consumption: 4W max
    • Operational Voltage Range: 4.4V to 5.25V DC
  • Environmental Specifications:
    • Operating Temperature: 0° to 40° C (32° to 104° F)
    • Storage Temperature: -20° to 60° C (-4° to 140° F)
    • Relative Humidity: 0% to 90% non-condensing
  • Physical Specifications:
    • Warranty: 3 Year Limited Manufacturer's Warranty
