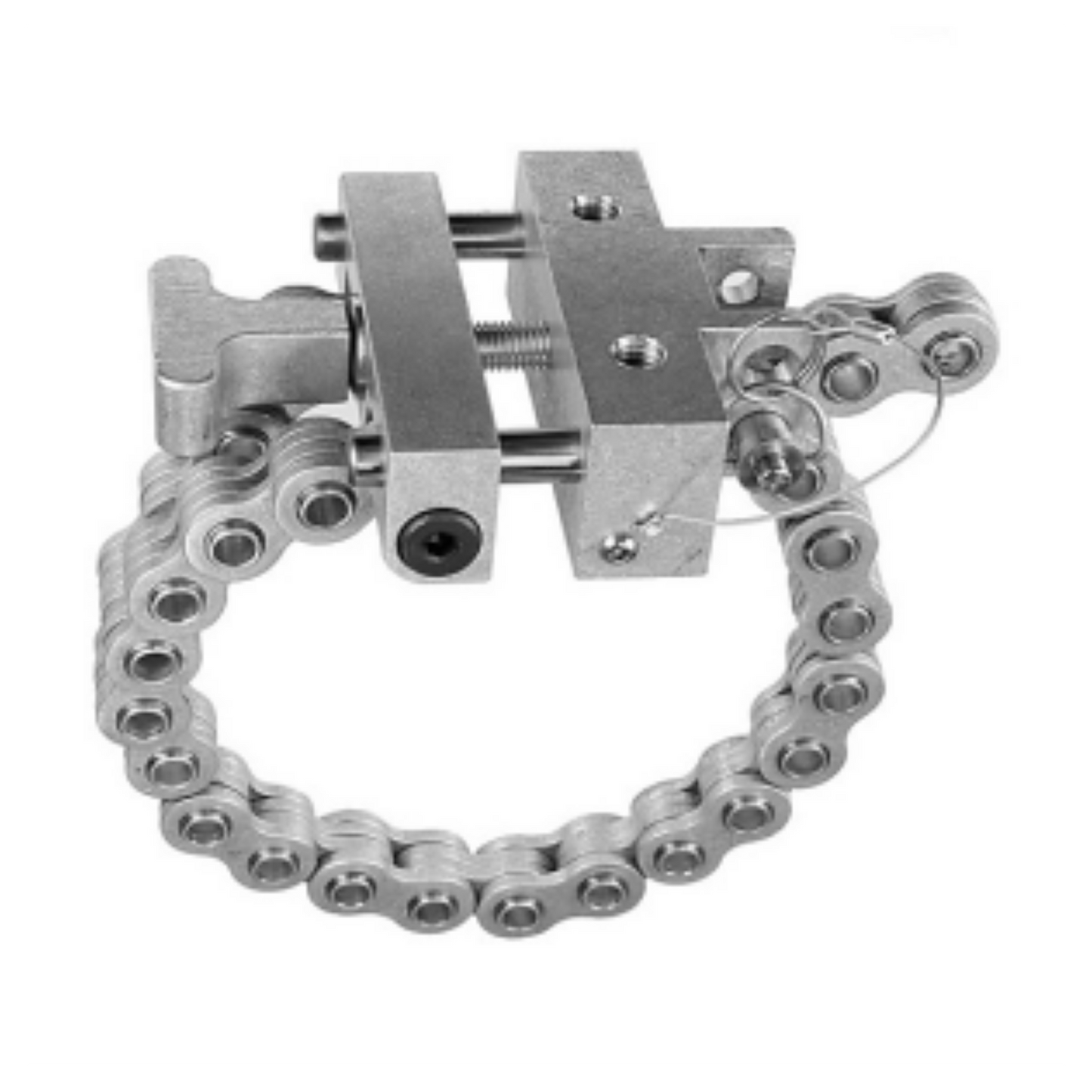

The Chain Pole Clamp offers a robust solution for rigging needs at events, securely attaching to tent poles with a diameter of 2.375" to 7", and up to 14" with an extension. Its design incorporates 6061T-6 aluminum links and a multitude of contact points, ensuring a tight grip while preventing damage to the poles. The clamp is capable of supporting a design load of 1000 pounds, though the actual load capacity depends on the tent manufacturer's specifications. For ease of adjustment and attachment, the clamp includes a tee handle for tightening, hollow stainless steel chain link pins for adjustable lengths, and two 3/8" x 1.5" ball detent pins for quick connection of lights or accessories.
- Minimum Size: 2.375" OD
- Maximum Size: 7" OD, extendable to 14" with an extension
- Working Load Limit: 1000 Pounds
- Weight: 4 Pounds
- Case Quantities: Each
- Order Codes: CPC
- Material: 6061T-6 aluminum link design, stainless steel hardware and chain link pins
- Adjustment: Coarse adjustment with 1" link increments, fine adjustment with two offset locking pin holes
- Tightening: Includes tee handle, can be further tightened with a wrench up to 75 foot pounds torque
- Attachment Points: Two ½-13 threaded holes on the main clamp body, hollow stainless steel chain link pins for adjustable lengths and pinned attachments, quick connect for accessories with two 3/8" x 1.5" ball detent pins
