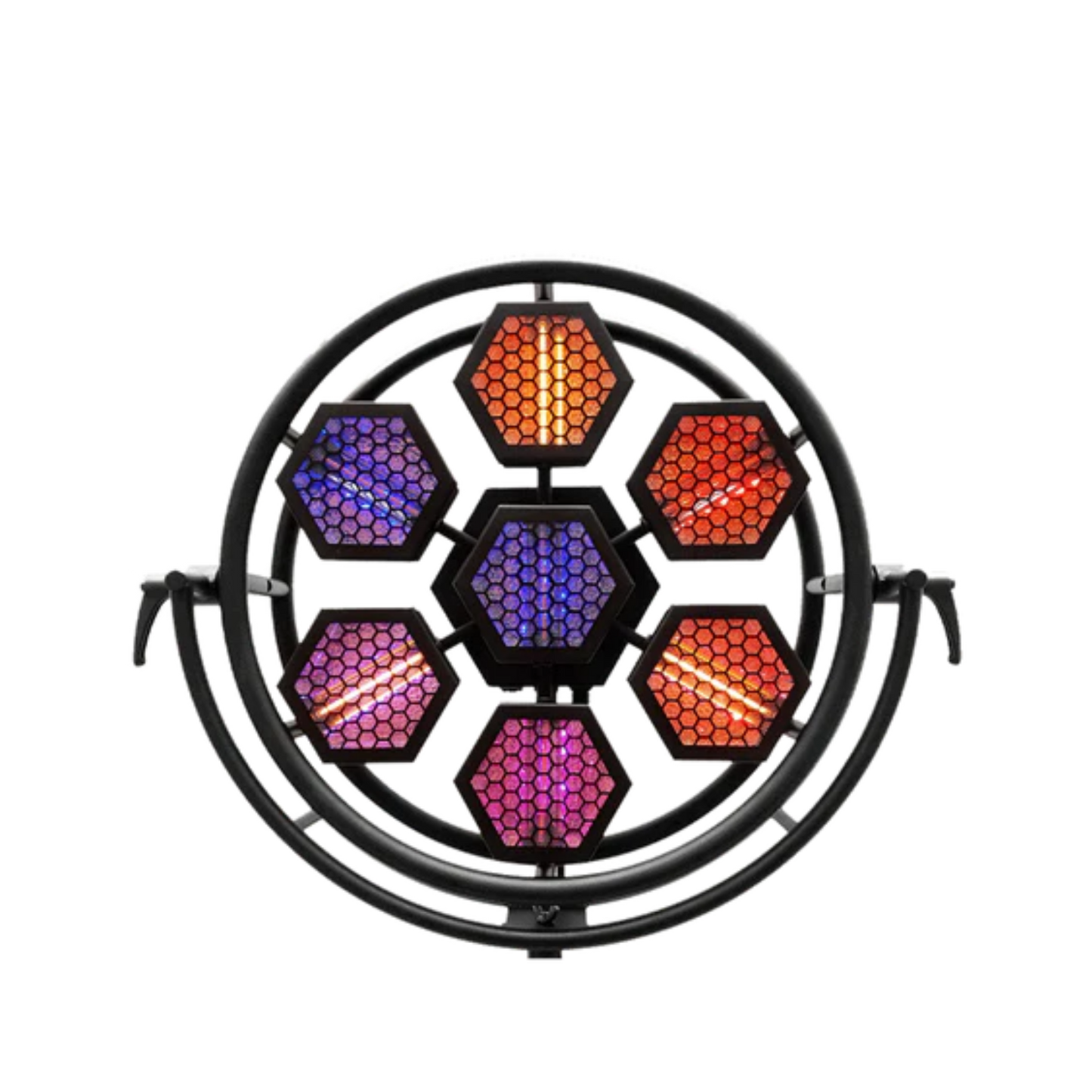

Portman P1 Mini LED

Portman P1 Mini LED


Rate Calculator

Product Highlights

  • Versatile Lighting: The P1 Mini LED combines a unique tungsten-look filament with RGBW glow, offering a wide range of color possibilities.
  • Advanced Control: Features 16-bit dimming, built-in electronics, and supports RDM and WDMX (optional module).
  • Flexible Installation: Can be easily mounted on any tripod or hung using any clamp, adaptable for various event setups.
  • Efficient Design: Compact and lightweight, with high reflective hammered reflector for optimal light distribution.
View full details

The P1 Mini LED is a dynamic lighting solution, ideal for event organizers and planners. Its warm white and RGBW LEDs allow for the creation of a broad spectrum of colors, tailored to specific event themes. The luminaire's 16-bit dimming and built-in electronics ensure precise control over lighting effects, enhancing the ambiance of conferences, weddings, and concerts. Its design facilitates easy installation on tripods or clamps, making it a versatile choice for various event types.

  • Dimensions: 63 x 76 x 17 cm (24.8 x 30 x 6.7 in)
  • Weight: 8 kg (17.5 lbs)
  • Rigging: 12 mm (1/2 in) hole for spigot or clamp
  • Mounting Position: Any
  • Input Voltage: 110 - 230V, 50Hz/60Hz
  • Power Consumption: Max 95W
  • Power Connector: Neutrik PowerCon TRUE1 power through
  • Control Connector: Neutrik 5 PIN XLR (both: in & out)
  • Light Sources: 7 x LED filament (tungsten look), 7 x RGBW Glow
  • Color Temperature: 1,800K
  • CRI: >90
  • Optics: High reflective hammered reflector
  • Control Features: 5 DMX modes (19-50 DMX channels), RDM, Macros, W-DMX (additional option, can be upgraded any time later)
  • User Interface: High-contrast LCD display, Highlighted buttons
  • Other Details: Gold reflector (standard, can be swapped), Silver reflector (additional option, can be swapped), Flight cases (2-,3-,4-row) (additional option)
  • Warranty: 24 months
  • IP Rating: IP20
  • Included in the Box: Fixture, 2m power cord (PowerCon TRUE 1 -> no plug), user manual
