NovaStar VX4S-N

NovaStar VX4S-N

SKU NOVAVX4S

Rate Calculator

Product Highlights

  • Versatile Inputs and Outputs: The VX4S features a range of inputs including CVBS, VGA, DVI, HDMI, DP, and SDI, supporting resolutions up to 1920×1200@60Hz.
  • Advanced Processing Capabilities: Equipped with Nova's G4 engine, it ensures stable, flicker-free images with excellent depth and quality.
  • User-Friendly Interface: Offers seamless high-speed switching and fade-in/fade-out effects, along with easy configuration through its intuitive interface.
  • Robust Physical Build: Designed with a durable structure, measuring 483.6mm × 275.1mm × 51.5mm and weighing 5.6 kg.
View full details

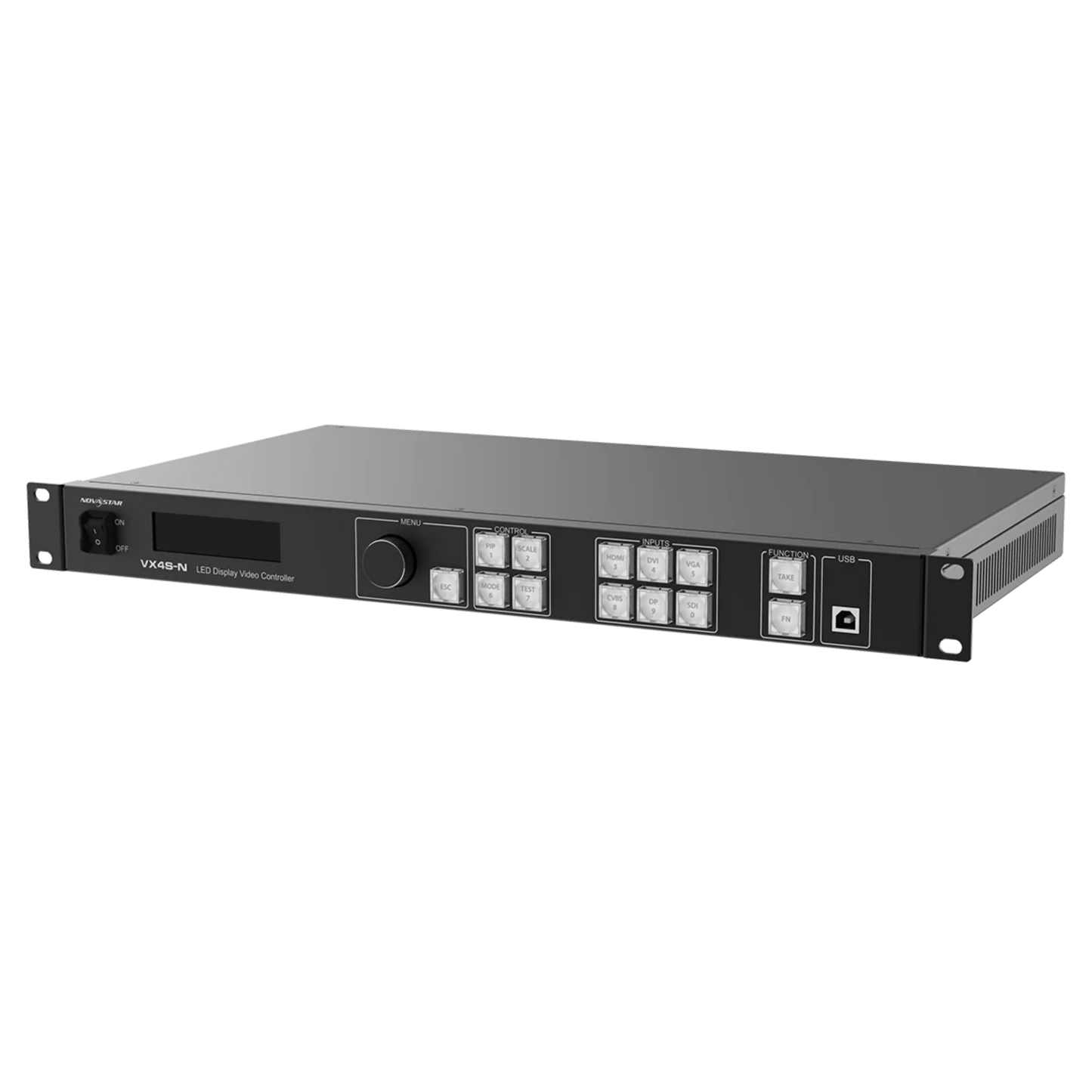

The VX4S All-in-One Controller is a professional LED display controller that eliminates the need for an external scalar due to its powerful front-end processing. It not only delivers exceptional image quality but also provides flexible image control, catering to the broadcast industry's stringent requirements.

The controller's user-friendly interface, including a knob and button operation, simplifies the display setup, making it more efficient and enjoyable.

Its innovative architecture enables smart configuration, significantly reducing stage preparation time.

  • Input Index:
    • CVBS: 2 (PAL/NTSC)
    • VGA: 2 (VESA Standard, max. 1920×1200@60Hz input)
    • DVI: 1 (VESA Standard, support 1080i input, HDCP supported)
    • SDI: 1 (480i, 576i, 720P, 1080i/P)
    • HDMI: 1 (EIA/CEA-861 standard, HDMI-1.3 standard, HDCP supported)
    • DP: 1 (VESA Standard)
  • Output Index:
    • DVI LOOP: 1 (Consistent with DVI input)
    • VGA: 1 (Monitoring output connector)
    • DVI: 1 (Up to 1920×1200@60Hz output resolution)
    • SDI LOOP: 1 (Consistent with SDI input)
    • LED OUT: 4 (4 Gigabit Ethernet outputs, Ethernet port 1 supports audio output)
  • Complete Machine Specifications:
    • Electrical Power Connector: AC100-240V~, 50/60Hz
    • Power Consumption: 25W
    • Operating Environment Temperature: -20°C to 70°C
    • Operating Humidity: 20%RH to 90%RH (Non-condensing)
    • Storage Humidity: 10%RH to 95%RH (Non-condensing)
    • Physical Dimensions: 483.6mm × 275.1mm × 51.5mm
    • Net Weight: 5.6 kg
  • Certifications: CE, RoHS, FCC, UL/CUL, RCM, CB, KC, EAC
  • Noise Level: 38dB(A) (typical at 25°C/77°F)
