MA Lighting

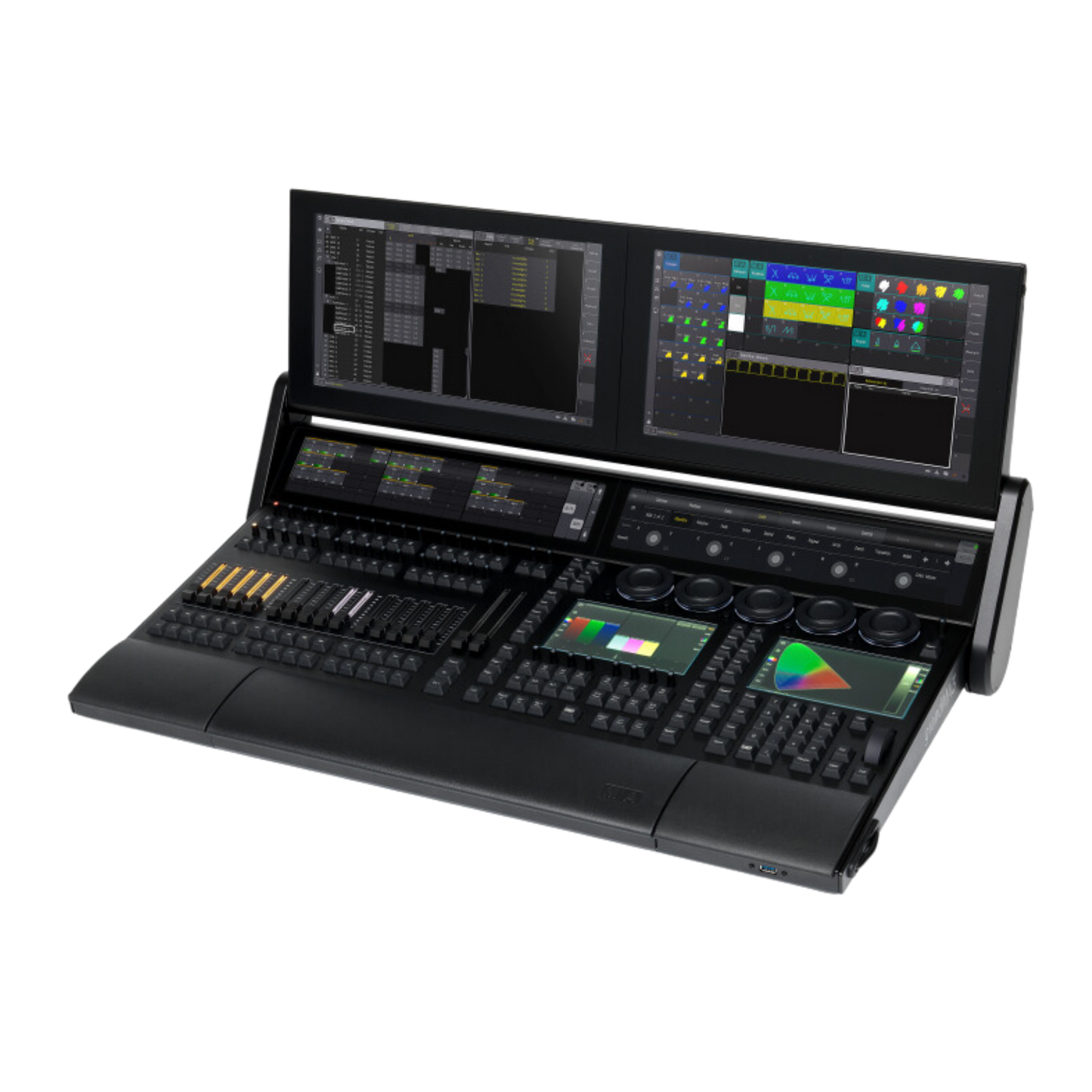

grandMA3 light

grandMA3 light

SKU MA3LT

Rate Calculator

Product Highlights

  • Versatile and Powerful: The grandMA3 light console is a robust work-horse, ideal for a wide range of productions.
  • Extensive Playback Options: Equipped with 60 physical playbacks, 16 assignable x-keys, and a dedicated master area.
  • Large Multi-Touch Screens: Features huge multi-touch screen real-estate, two letterbox screens, and fully configurable layout.
  • High Parameter Control: Includes 16,384 control parameters as standard, scalable to 250,000 with additional grandMA3 processing units.
View full details

The grandMA3 light console stands out as a versatile and powerful tool in the lighting console range, suitable for almost any production. Its extensive playback options, including 60 physical playbacks and 16 assignable x-keys, provide immense control and flexibility. The console's user interface is enhanced by its large multi-touch screens, offering instant access to programming tools and customizable layouts to suit individual needs. Additionally, the grandMA3 light console's capability of controlling up to 16,384 parameters, expandable to 250,000 with extra processing units, makes it an ideal choice for prestigious entertainment lighting applications.

  • Control Parameters:
    • Standard: 16,384 (HTP/LTP)
    • Mode2: 4,096 (HTP/LTP)
  • Display and User Interface:
    • 2 internal foldable monitor multi-touch screens
    • 2 internal letterbox multi-touch screens
    • 2 internal multi-touch command screens
    • 2 external multi-touch screens connectivity
    • Individually backlit and dimmable silent keys
  • Physical Controls:
    • 41 rotary RGB backlit encoder
    • 5 backlit dual encoders
    • 15 backlit motorized 60 mm faders
    • 60 separate playbacks
    • 16 assignable x-keys
    • 2 backlit motorized A/B faders 100 mm
  • Connectivity:
    • 6 DMX outputs, 1 DMX input
    • 3 etherCON connectors, 6 USB connectors (3 USB 2.0, 3 USB 3.0)
    • 2 DisplayPort 1.2 for external screens
    • 2 S/PDIF In and Out
    • 1 x MIDI In/Out, Linear Timecode, Audio In, GPI General Purpose Interface
    • 2 x LED desk light (4pin XLR female)
  • Power and Dimensions:
    • Operating voltage: AC 100 - 240 V; 50/60 Hz
    • Power consumption: max. 300 VA
    • Operating Temperature: 0 °C up to 40 °C / 32 °F up to 104 °F
    • Dimensions (WxDxH):
      • Folded: 854 x 539 x 181 mm / 34 x 22 x 8 in
      • Unfolded for operation: 854 x 584 x 409 (max. 450) mm / 34 x 23 x 17 (max. 18) in
      • Fully unfolded: 854 x 871 x 255 mm / 34 x 35 x 10 in
    • Net weight: 33 kg / 73 lbs
  • Additional Features:
    • Integrated keyboard drawer
    • Built-in uninterruptible power supply (UPS)
