• Elation DARTZ 360
1 1
Elation

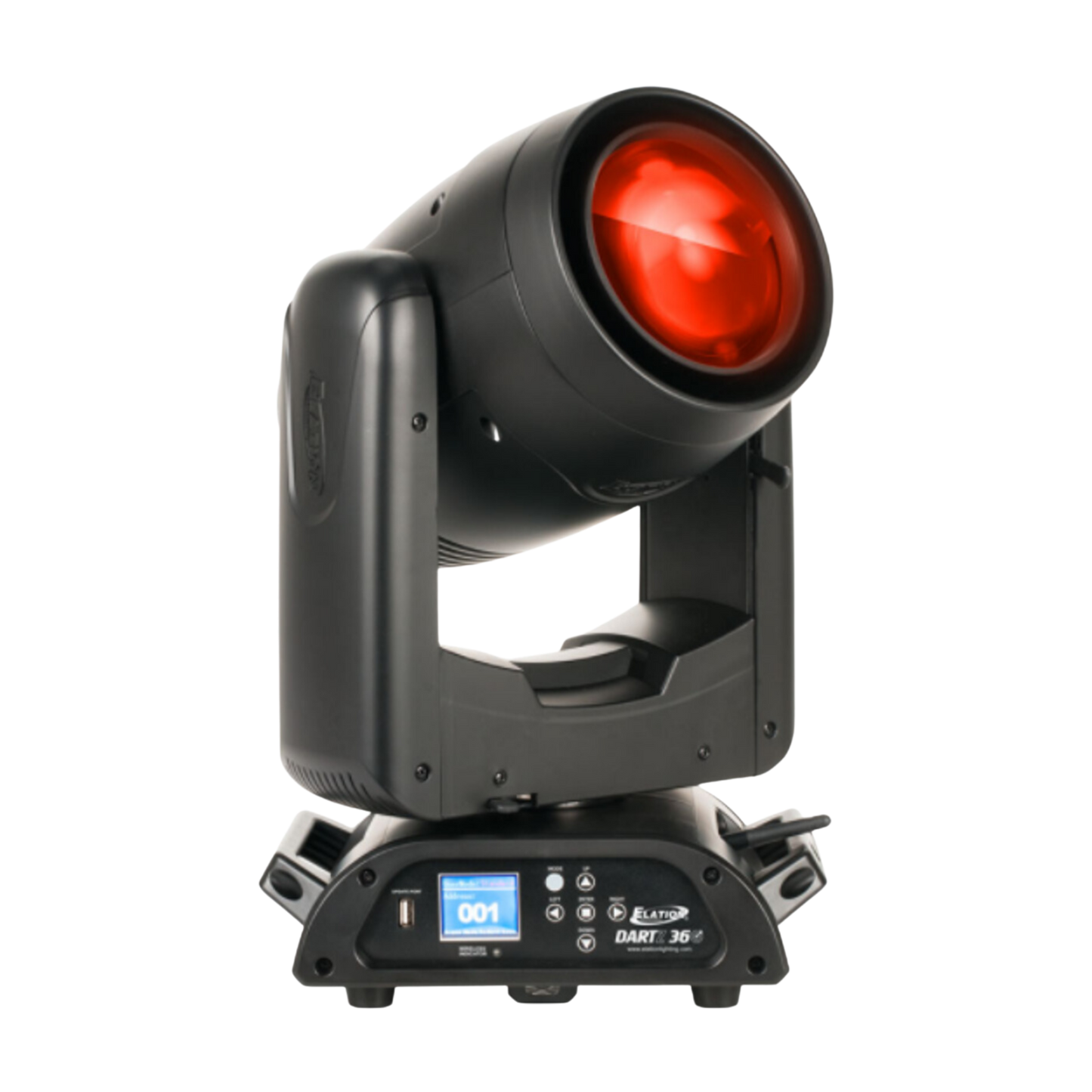

Elation DARTZ 360

Elation DARTZ 360

SKU DARTZ360

Rate Calculator

Product Highlights

  • Compact and Versatile Beam Luminaire: The DARTZ 360 is a uniquely compact, narrow beam lighting fixture, ideal for various event settings.
  • Advanced LED Technology: Features a patent-pending 50W RGB LED engine, ensuring high output and smooth color mixing.
  • Dynamic Movement and Effects: Offers continuous 360° pan and tilt rotation, combined with 14 static-stamped metal gobos and dual rotating prisms for diverse lighting effects.
  • Flexible Control and Connectivity: Supports multiple protocols including DMX, RDM, Kling-Net, Art-NET, and sACN, and includes Elation’s E-FLY™ internal wireless DMX transceiver.
View full details

The DARTZ 360 is a revolutionary lighting solution, boasting a compact design with a powerful, patent-pending 50W RGB LED engine, delivering an impressive 3° aperture beam. Its continuous 360° pan and tilt rotation, along with a variety of gobos and prisms, allow for creative and dynamic lighting effects, perfect for enhancing the ambiance of any event. The fixture is designed for ease of use and flexibility, supporting a range of control protocols and featuring a full-color reversible menu display, making it a versatile choice for event organizers and planners.

  • Source
    • Patent Pending 50W RGB LED Engine
    • 50,000 Hour Average LED Life
    • 29,562 LUX @16.4ft (5m) (3° Full ON)
  • Effects
    • Motorized Focus
    • 6 and 8 Facet Independent Rotating Prisms
    • 16-Bit Variable Dimming Curve Modes
    • Adjustable LED Refresh Rate and Gamma Brightness
  • Color
    • RGB Smooth Color Mixing
  • Gobos
    • 14 Static-Stamped Metal Gobos
  • Control / Connections
    • (3) DMX Channel Modes (19 / 22 / 25)
    • 360° Continuous Pan and Tilt 8 / 16 Bit Movement
    • Adjustable Refresh Rate (900-25,000 Hz)
    • Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
    • 6 Button Menu Control Panel
    • Full Color 180° Reversible LCD Menu Display
    • DMX, RDM, Kling-net, Art-NET, and sACN Protocol Support
    • Elation E-FLY™ Internal Wireless DMX Transceiver
    • 5pin DMX, RJ45 Ethernet In/Out
    • Locking Power Cable In/Out
  • Size / Weight
    • Length: 11.2” (284.15mm)
    • Width: 7.7” (195.97mm)
    • Vertical Height: 17.9” (454.7mm)
    • Weight: 28.0 lbs. (12.7 kg)
  • Electrical / Thermal
    • AC 100-240V - 50/60Hz
    • 154W Max Power Consumption
    • 14°F to 113°F (-10°C to 45°C)
    • BTU/hr (+/- 10%) 525.14
  • Approvals / Ratings
    • CE | cETLus | IP20
  • Firmware Updates
    • Current Version: 1.2.19
