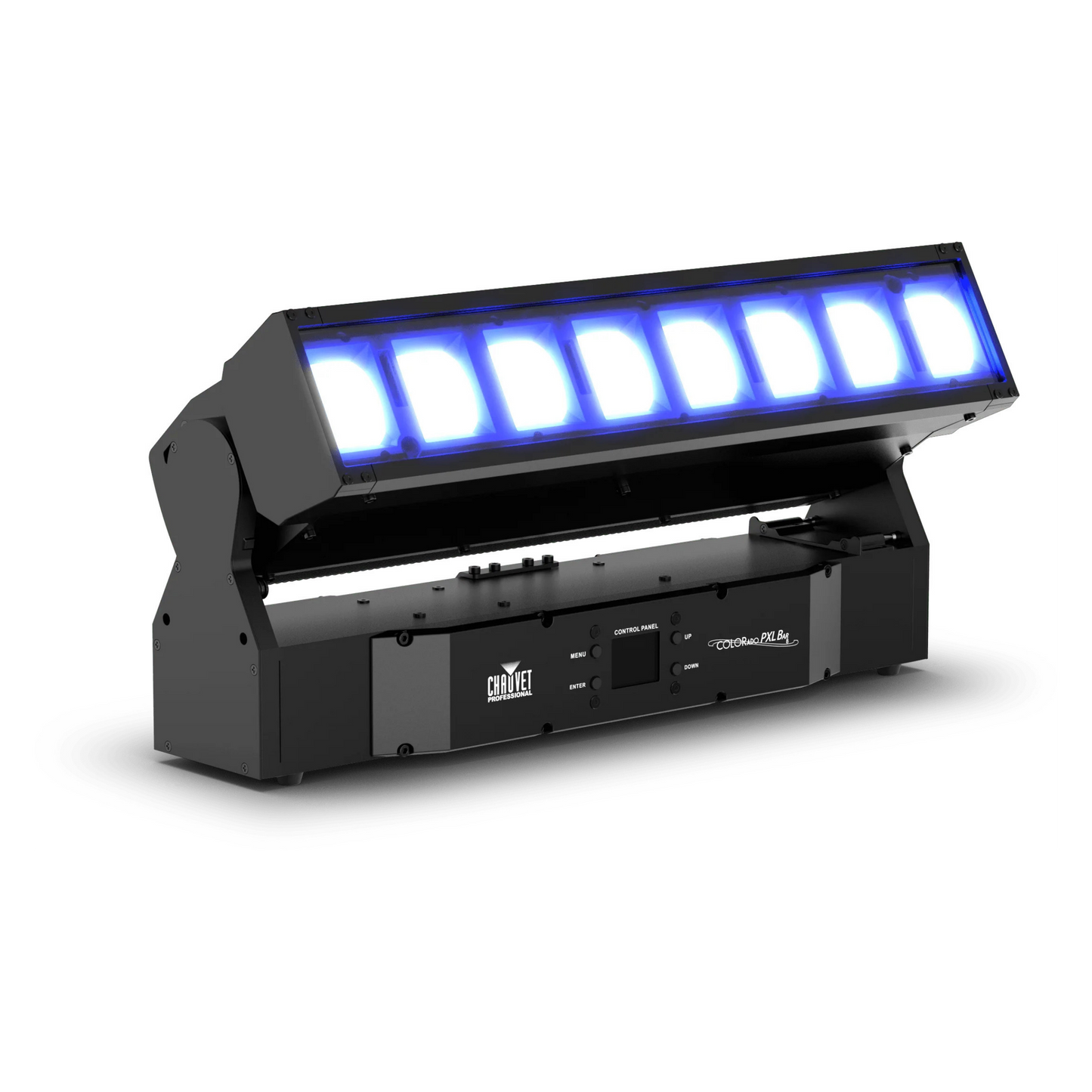

Chauvet Professional COLORado PXL Bar 8

Chauvet Professional COLORado PXL Bar 8

SKU CRB8

Rate Calculator

Product Highlights

  • The COLORado PXL Bar 16 is an IP65-rated motorized tilting batten, perfect for outdoor events.
  • Features 16 quad-color RGBW LEDs with a zoom range of 5.8° to 47.9°, offering versatile lighting options.
  • Equipped with built-in effects, including virtual gobos and movement macros, for enhanced pixel animation effects.
  • Offers multiple control options including DMX, SACN, Art-Net, and Kling-Net, along with RDM for remote addressing and troubleshooting.
View full details

The COLORado PXL Bar 16 is a dynamic and versatile lighting solution, ideal for event organizers and planners. Its motorized tilting and wide zoom range allow for creative lighting designs, from tight pixel-mappable looks to wide washes. The fixture's advanced features, such as virtual gobo and movement macros, provide extensive design options, enhancing the visual experience of any event. Additionally, its compatibility with various control protocols, including DMX and Art-Net, ensures seamless integration into any existing lighting setup.

  • Optical Characteristics:
    • Light Source: 16 LEDs (quad-color RGBW) 45 W, 50,000 hours life expectancy
    • Color Temperature (calibrated white): 6122 K
    • CRI: 61.6
    • Beam Angle: 5.8° to 30.4°
    • Field Angle: 8.9° to 42.2°
    • Cutoff Angle: 10° to 47.9°
    • Zoom Range: 5.8° to 47.9°
    • Lumens (43.3°): 8,959
    • Illuminance: 27,415 lux @ 5 m (5.7°), 1,294 lux @ 5 m (43.3°)
    • Selectable PWM: 600 Hz - 15,000 Hz
  • Dynamic Effects:
    • Tilt: 200°
    • Dimmer: Electronic
    • Shutter/Strobe: Electronic
    • Zoom: Motorized
    • Strobe Rate: 0 to 20 Hz
    • Dim Modes: 2
    • Dim Curves: 4
  • Physical Attributes:
    • Dimensions: 39.37 x 5.47 x 10.75 in
    • Weight: 45.6 lb
    • Exterior Color: Black
    • Housing Material: Aluminum alloy, Aluminum diecast, High-impact flame-retardant polymer
  • Connections:
    • Power Connection: Bare end to Seetronic Powerkon IP65
    • Data Connectors: 5-pin IP rated, Seetronic IP rated RJ45 Connectors in/out
    • Cable Length (power): 5 ft
  • Control:
    • Control Protocol: Art-Net, Kling-Net, DMX, RDM, sACN
  • Electrical:
    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power Linking: 0 unit @ 120 V; 3 units @ 208 V; 3 units @ 230 V
    • Power and Current: 790 W, 6.60 A @ 120 V, 60 Hz; 771 W, 3.821 A @ 208 V, 60 Hz; 768 W, 3.485 A @ 230 V, 50 Hz
  • Certifications / Qualifications:
    • CE, MET, FCC
    • IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
    • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
  • Included Accessories:
    • COLORado PXL Bar 16
    • Seetronic Powerkon IP65
    • 2 Omega bracket with mounting hardware
  • Optional Accessories:
    • Clamps
    • Neutrik powerCON cables
    • Neutrik etherCON cables
    • DMX Cables
    • Upload_08 software uploader
    • Flight cases
